Product Details:
|
| Model Number: | GFGM | GPON Port: | 16-GPON Port |
|---|---|---|---|
| Type: | C++ Module : Single Fiber Bidirectional Optical Module, Class C++ | Optical Connector Type: | SC/PC |
| Optical Fiber Type: | Single-mode | Weight: | 1.46kg |
| Dimensions (W X D X H): | 393.1 Mm × 23.9 Mm × 214 Mm | Warranty: | 1 Year |
| High Light: | GFGM GPON Business Board,16 Port GPON Business Board,SC PC GPON OLT Board |
||

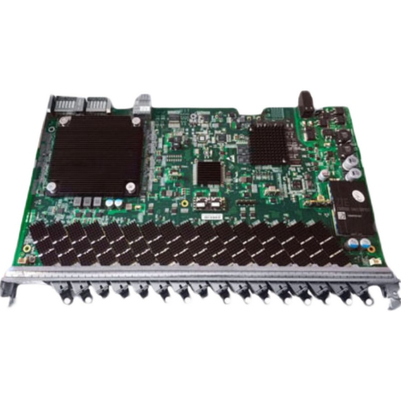

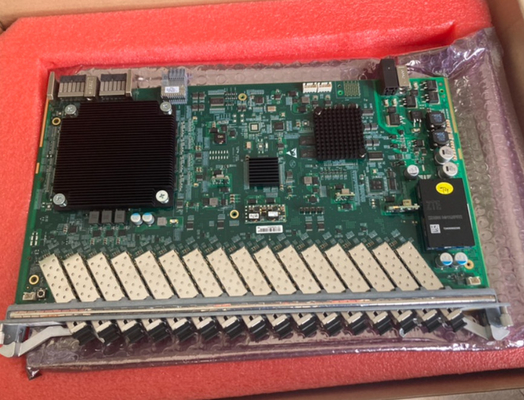

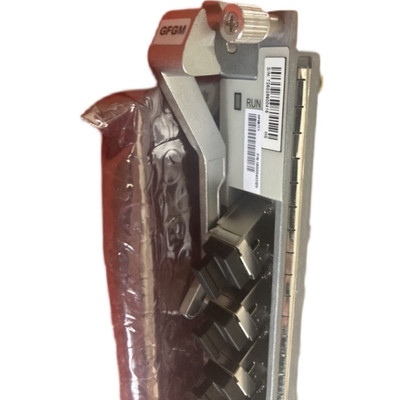

ZTE C600 PON board GFGM 16 port business board Original brand new
Overviews
The ZXA10 C600 is a piece of large-capacity optical access equipment based on the TITAN platform. It meets the full-scenario access needs of ultra-high bandwidth, big video, FMC and network re-architecture, as well as carrier-class QoS and security.
Features
1. The most advanced architecture meets future requirements
High-end route and fully distributed programmable architecture.
Separated control and forwarding planes makes the system more reliable.
Supports TDM-like channels to ensure ultra-low latency to meet 5G uRLLC requirements.
2. The largest capacity meets multiple services access
The industry's highest level of switching capacity and slot bandwidth.
Fully compatible with multiple generations of PON.
Fully compatible with multiple technology directions.
3. SDN/NFV-oriented
Supports SDN/NFV.
Supports network slicing.
Supports built-in blade as NFVI for experience-sensitive services.
4. Supports Combo PON, industry's first 3-in-1 combination
The WDM1r is built in the optical module without affecting existing GPON services.
Supports on-demand deployment of GPON and 10G-GPON ONUs according to service development.
| High Density | 16 GPON ports per card, up to 1:128 split ratio |
| GPON function | support ONU power saving management defined in G.987.3 |
| 1024 T-CONTs per PON port, 4096 GEM ports per PON port | |
| High TM performance | support H-QOS |
| 1024 queues and 256 schedulers per PON port | |
| support color-sensitive RED and WRED discard algorithm | |
| Colck/time function | receive 1PPS+TOD signals and send them to the ONU through a PON channel |
| Low power consumption | newly-developed lower power GPON MAC chip |
| reduce 30% power consumption on industry average |
Specifications
| Specification | |
| Service ports | |
| GPON Port | 16-GPON Port |
| GPON SFP Module Specification | |
| Type | C++ Module : Single Fiber Bidirectional Optical Module, Class C++ |
| Optical Connector Type | SC/PC |
| Optical Fiber Type | Single-mode |
| Reach | 20.00 km |
| Device Specifications | |
| Weight | 1.46kg |
| Dimensions (W x D x H) | 393.1 mm × 23.9 mm × 214 mm |
FAQ
Q: Can we get samples?
A: Yes, but we need to charge a sample fee.
Q: Can you offer better prices? And discount?
A: Yes, Powerlink does not have a minimum order quantity, but different quantities have different prices.
Q: Can you take care of the goods?
Answer: If you wish, we will organize and arrange all the deliveries to your office.
Q: How about the payment item?
Answer: T/T, PAYPAL, Western Union.
Q: Delivery time?
A: Sample order, 3-5 working days. For larger orders, 5-8 working days after receiving the deposit.
Q: How long is your warranty period?
Answer: The warranty period is 12 months.
This warranty does not cover damage caused by man-made damage, improper maintenance, improper use, negligence, normal wear and tear and force majeure (such as natural disasters, earthquakes, fires, etc.).
