Product Details:
|
| Model Number: | H835CALE CALE | Power Consumption: | 47 W |
|---|---|---|---|
| Dimensions (W X D X H): | 20.32 Mm X 220 Mm X 265 Mm | Poarts: | 32-channel User Port |
| Maximum Power Consumption: | 47W | Operating Temperature: | 0°C To 45°C (32°F To 113°F) |
| Operating Relative Humidity: | 5% RH To 95% RH (noncondensing) | Warranty: | 1 Year |
| High Light: | MA5616 Voice Broadband Board,H835CALE Board,32Way Voice Broadband Board |
||

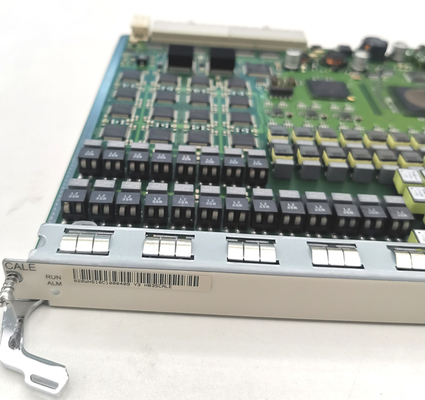

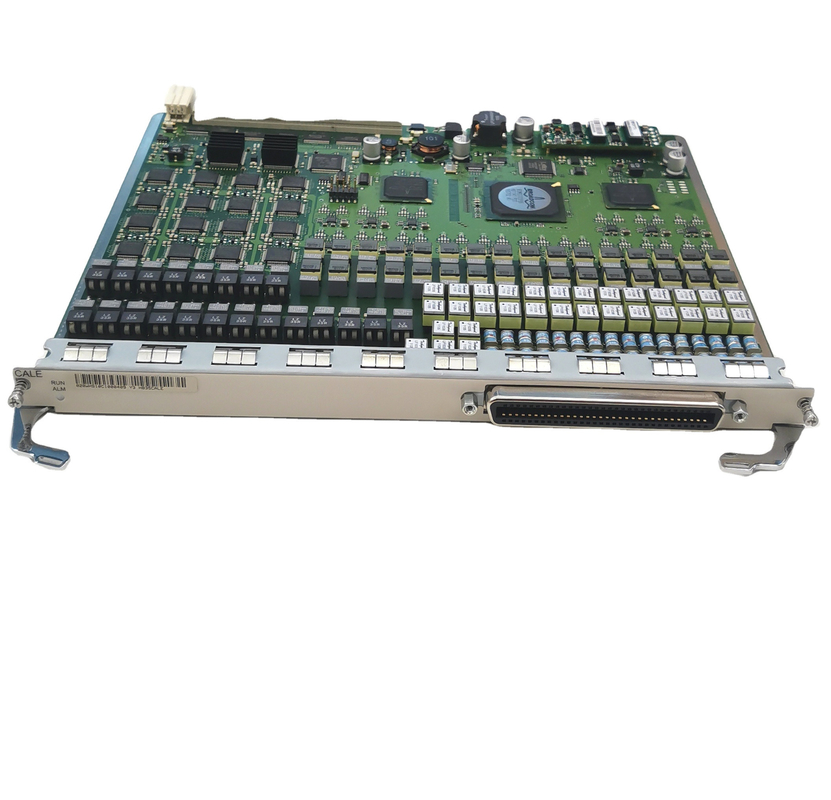

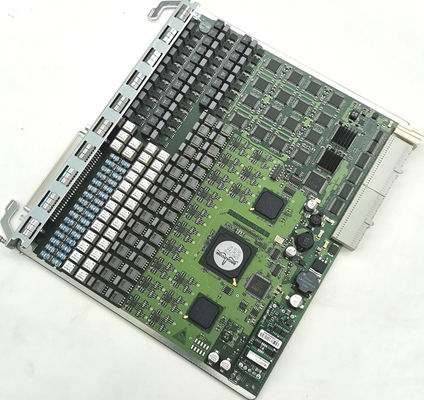

HuaWei MA5616 Voice Broadband Board H835CALE 32-way ADSL2+ and POTS all-in-one business board CALE
H835CALE Board Overview
H835CALE is a 32-way ADSL2 and POTS combined service board. Built-in 600 ohm impedance splitter, providing ADSL2 and POTS integrated access services.
The H835CALE board supports the following functions
* 32-channel user port
* ADSL2, POTS or ADSL2 and POTS integrated access service
* Circuit test and loop circuit test
* Polarity reversal for all 32 channels of POTS service
* Port protection* Energy saving when the board is powered off
* BOSCHT for analog user circuits
Front Panel
| Typical Power Consumption | 47 W | ||
| Typical Power Consumption | 24.0 W | ||
| Static Power Consumption | 9 W | ||
| Dimensions (W x D x H) | 20.32 mm x 220 mm x 265 mm | ||
| RUN ALM: running status indicator | |||
| Board startup phase | Steady green | Board power-on and initialization. | |
| Steady red | Board automatic loading and discovery. | ||
| Board running phase | Steady green | The board functions properly. | |
| Steady red | The board is faulty. | ||
