Product Details:
|
| Model Number: | ME0DVSUF807/VSUF-80 | Description: | Flexible Card Universal Business Single Board (VSUF-80) |
|---|---|---|---|
| Dimensions (wide× Deep × High): | 399.2mm × 535.6mm × 40.1mm | Typical Power Consumption: | 182.0 W |
| Weight: | 7.5 Kg | Typical Thermal Value: | 590.5 BTU/hour |
| Operating Environment Temperature: | Long-term: 0 To 45 Degrees C; Short-term: -5 Degrees C To 55 Degrees C | Warranty: | 1 Year |
| High Light: | HuaWei Router Business Single Board,182W General Business Single Board |
||

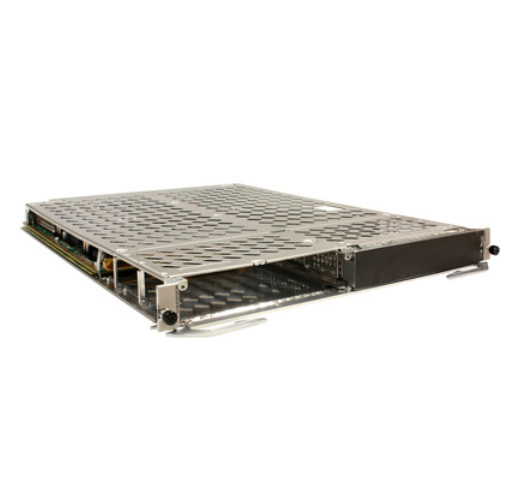

HuaWei router ME0DVSUF8070 general business single board VSUF-80 ME60-X8
|
attribute |
description |
|---|---|
| The name of the board is silk screen |
VSUF-80 |
| description | Flexible Card Universal Business Single Board (VSUF-80) |
| BOM | 03054425 |
| Model | CR5DVSUF8010 |
|
products |
The minimum software version |
|---|---|
| NE40E-X3 | V800R008C00 |
| NE40E-X8 | V800R008C00 |
| NE40E-X16 | V800R008C00 |
| NE40E-X3A | V800R008C00 |
| NE40E-X8A | V800R008C00 |
| NE40E-X16A | V800R008C00 |
|
name |
description |
|---|---|
| OFL | Single board plug button. Press the OFL button before unplugging the board to apply for the board. The button needs to be pressed for 6 seconds until the OFL light is on before the single board can be safely unplugged. |
|
name |
description |
|---|---|
| OFL (Red) | Always bright, indicating that a single board can be safely unplugged. |
| RUN (Green) | Flashes every 2 seconds (0.5Hz) indicates that the system is operating normally. Flash twice per second (2Hz), indicating that the device has not completed enrollment while it is starting. |
|
Features |
illustrate |
|---|---|
| Line speed capability | Supports universal business processing capabilities at 80G line speeds. |
| Slot status | This board provides a subcard slot that can be inserted into a common business subcard. |
| Reliability and availability | Hot-swap is supported. |
| Restrictions and instructions | In order to obtain good heat dissipation, for X8 frame, it is recommended to place VSUF-80 in frame 3, 4, 5, 6 slots, and for X16 frame, VSUF-80 is recommended to be placed in 3, 4, 5, 10 to 14 slots. |
|
Project |
Description |
|---|---|
| Dimensions (wide× deep × high) | 399.2mm × 535.6mm × 40.1mm |
| Typical power consumption | 182.0 W |
| Typical thermal value | 590.5 BTU/hour |
| weight | 7.5 kg |
| Operating environment temperature | Long-term: 0 to 45 degrees C; short-term: -5 degrees C to 55 degrees C |
