Product Details:
|
| Product Name: | S5735-L24T4S-A1 | Ports: | 24 |
|---|---|---|---|
| Switch Capacity: | 336Gbps/3.36Tbps | Description: | S5735S-L24T4S-A1 (24 10/100/1000BASE-T ETHERNET PORTS, 4 GIGABIT SFP, AC POWERED) |
| Dimensions: | 550.0mm×360.0mm×90.0mm | Weight: | 2.45kg |
| MAXIMUM POWER CONSUMPTION: | 47.6W | Warranty: | 1 Year |
| High Light: | S5735-L24T4S-A1,Layer 2 Access Network Managed Switch,4 Gigabit Optical Network Managed Switch |
||

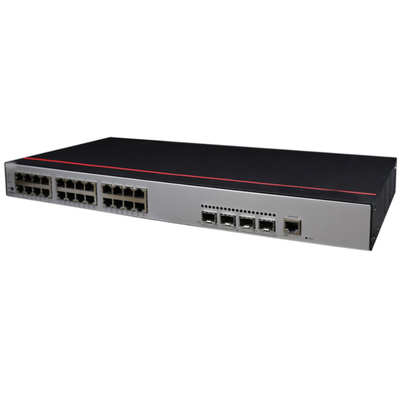

HuaWei S5735-L24T4S-A1 24 Gigabit Electric 4 Gigabit Optical Enterprise-level Layer 2 Access Network Managed Switch
| Attribute | Description |
|---|---|
| Description | S5735S-L24T4S-A1 (24 10/100/1000BASE-T ETHERNET PORTS, 4 GIGABIT SFP, AC POWERED) |
| Part number | 98011307 |
| Model | S5735S-L24T4S-A1 |
| Initial supported version | V200R020C10 |
| Pemark | Some models cannot be downgraded due to device upgrades. therefore, it is recommended to execute the display system-software information command before the device is downgraded to check the software versions supported by the device. if the device does not support the display system-software information command, it can be downgraded. |

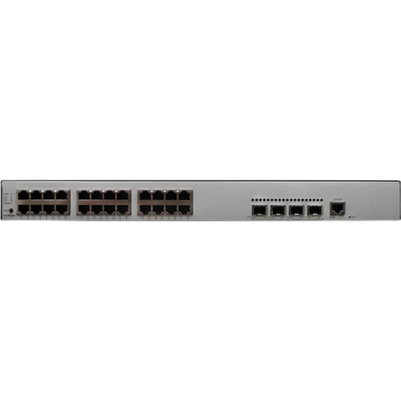

| 1 | 24 X 10/100/1000BASE-T ETHERNET ELECTRICAL INTERFACES | 2 | 4 X 1000BASE-X ETHERNET OPTICAL INTERFACES |
| 3 | 1 Console interface | 4 |
1 X PNP BUTTON Notice:
Long press (6s or more): factory reset and reset the device. Short press: reset the device. Resetting the device will cause business interruption, so use this button with caution. |
| 5 |
Grounding screws Illustrate:
Use the grounding cable together. |
6 |
Ac terminal anti-tripping jack Illustrate:
The jack reserved for installation ac terminal anti-tripping, ac terminal anti-tripping does not ship with the device.
|
| 7 |
Ac outlet Illustrate:
Use an ac power cable. |
- | - |
S5735S-L24T4S-A1 does not have a PoE mode status LED, the remaining LEDs have the same identification and meaning as S5735S-L24P4X-A1, please refer to S5735S-L24P4X-A1.
The device is powered by a single built-in ac power supply and does not support pluggable power modules.
The device has a built-in fan, the heat dissipation type is the fan forced heat dissipation, the air flow direction is left, forward wind, right air outlet.
the device meets the noise requirements of the desktop level when it is working normally at room temperature, but the fan speed may occur during the device startup process.
| Project | Description |
|---|---|
| Dimensions (w x d x h, without packaging) [mm] |
Basic dimensions (depth is the distance between structural parts without protruding front and rear panels): 442.0mm×220.0mm×43.6mm Maximum size (depth is the maximum distance from the front panel protruding port to the rear panel protruding structural part): 442.0mm×227.0mm×43.6mm |
| Dimensions (w x d x h, incl. packaging) [mm] | 550.0mm×360.0mm×90.0mm |
| CHASSIS HEIGHT [U] | 1U |
| Weight (without packaging materials) [kg] | 2.45kg |
| Weight (incl. packaging material) [kg] | 3.34kg |
| TYPICAL POWER CONSUMPTION [W] | 32.7W |
| Typical Heat Dissipation [BTU/hour] | 111.58BTU/hour |
| MAXIMUM POWER CONSUMPTION [W] | 47.6W |
| Maximum heat dissipation [BTU/hour] | 162.42BTU/hour |
| MTBF [year] | 66.16year |
| MTTR [hour] | 2hour |
| Usability | >0.99999 |
| Ambient noise (sound power) [dB(A)] | 39dB(A) |
| Ambient noise (sound pressure) [dB(A)] | 27.2dB(A) |
| The number of slots in the card | 0 |
| Number of power slot bits | 0 |
| Number of fan modules | 1 |
| Power supply redundancy | Not supported |
| LONG-TERM OPERATING AMBIENT TEMPERATURE [°C] |
-5°C~+50°C (0m~1800m altitude, supporting non-industrial optical modules) -5°C~+55°C (0m~1800m altitude, supporting ≤10km industrial grade optical module) |
| SHORT-TERM OPERATING AMBIENT TEMPERATURE [°C] | Not supported |
| OPERATING AMBIENT TEMPERATURE VARIATION LIMIT [°C] |
1800m ~ 5000m, the maximum temperature specification is reduced by 1 °C for every 220m increase in altitude. THE DEVICE DOES NOT SUPPORT BOOTING WHEN THE AMBIENT TEMPERATURE IS BELOW 0°C. When equipped with an optical module ≥ 70 km distance, the operating temperature is -5 °C ~ +45 °C. |
| STORAGE TEMPERATURE [°C] | -40°C~+70°C |
| RELATIVE HUMIDITY [RH] IN LONG-TERM WORKING ENVIRONMENTS | 5% RH TO 95% RH, NON-CONDENSING |
| Long-term operating altitude [m] | 0m~5000m |
| Storage altitude [m] | 0m~5000m |
| Power supply standard | BUILT-IN AC POWER SUPPLY |
| RATED INPUT VOLTAGE [V] | AC input: 100V AC~240V AC; 50/60Hz |
| INPUT VOLTAGE RANGE [V] | AC input: 90V AC~290V AC; 45Hz~65Hz |
| MAXIMUM INPUT CURRENT [A] | 2A |
| Memory | 512MB |
| Flash | 512MB |
| Console interface type | RJ45 |
| Eth manages the port type | Not supported |
| USB PORT | Not supported |
| REAL-TIME CLOCK (RTC) | Not supported |
| RPS INPUT | Not supported |
| Service Port Lightning Protection [kV] | Common Mode ± 7kV (Maximum Support ± 10kV, No Damage to The Device) |
| Power port lightning protection [kV] | The differential mode ± 6kV and the common mode ± 6kV |
| Fan type | Built-in fan |
| Heat dissipation | Wind cooling and heat dissipation, intelligent speed regulation |
| Airflow direction | Left forward wind, right wind |
| PoE function | Not supported |
