Product Details:
|
| Product Name: | S5735S-S24P4X-A | Connector Type: | LC/PC |
|---|---|---|---|
| Weight (including Packaging Materials): | 7.39kg | Maximum Power Consumption (100% Flow, Full Fan Speed): | Do Not Use PoE: 65W PoE Full Load: 847W (PoE: 720W) |
| Typical Power Consumption (30% Flow): | 51W | MEMORY (RAM): | 1GB |
| Warranty: | 1 Year | ||
| High Light: | POE Three Layer Switch,HuaWei Three Layer Switch |
||

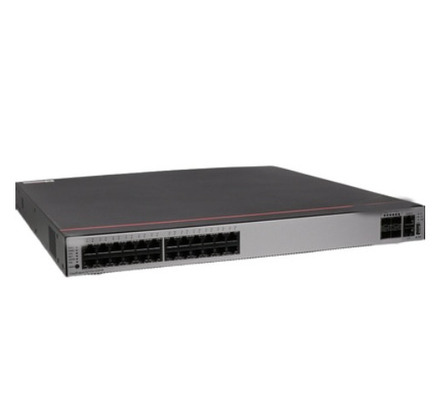

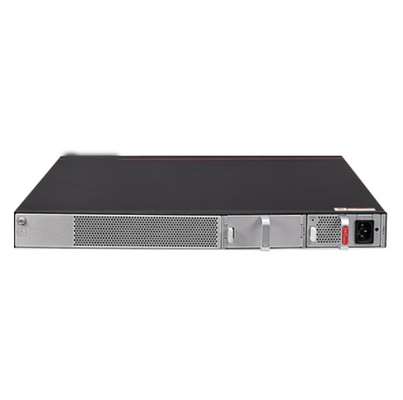

S5735S-S24P4X-A HuaWei 24 Gigabit power 40 Gigabit optical support POE power supply standard three-layer switch
|
Device family |
Device model |
Imprint |
|---|---|---|
| S5735-S | S5735-S24P4X |
V200R019C00 AND LATER VERSIONS ARE SUPPORTED. Illustrate:
V200R021C01 VERSION IS NOT SUPPORTED. |
10/100/1000BASE-T ETHERNET ELECTRICAL INTERFACE
|
Attribute |
Description |
|---|---|
| Connector type | RJ45 |
| Complies with standards | IEEE802.3,IEEE802.3u,IEEE802.3ab |
| Working mode | 10/100/1000Mbit/s adaptive |
| Maximum effective distance | 100m |
10GE SFP+ ETHERNET OPTICAL INTERFACE
|
Aattribute |
Description |
|---|---|
| Connector type | LC/PC |
| Optical interface properties | Determined by the selected optical module |
| Complies with standards | IEEE802.3ae |
| Working mode | 10GE/GE ADAPTIVE |
Console interface
|
Attribute |
Description |
|---|---|
| Connector type | RJ45 |
| Complies with standards | RS-232 |
| Working mode | Duplex UART (Universal Asynchronous Receiver/Transmitter) |
| Baud rate |
9600bit/s,19200bit/s,38400bit/s,57600bit/s,115200bit/s the default is 9600bit/s |
ETH MANAGEMENT INTERFACE
|
Attribute |
Description |
|---|---|
| Connector type | RJ45 |
| Complies with standards | IEEE802.3 |
| Working mode | 10/100Mbit/s adaptive |
| Maximum effective distance | 100m |
USB PORT
DUE TO THE DIFFERENCE IN THE COMPATIBILITY AND DRIVE OF THE U DISK MODEL OF DIFFERENT MANUFACTURERS, IF THE U DISK CANNOT BE USED, PLEASE TRY TO REPLACE THE U DISK OF THE MAINSTREAM MANUFACTURER, THE SWITCH SUPPORTS A U DISK WITH A CAPACITY OF NO MORE THAN 128GB.
|
Specification |
Parameter |
|---|---|
| MEMORY (RAM) | 1GB |
| Flash | The physical space is 512MB, and the actual free space can be viewed using the display version command |
| MTBF (YEARS) | 59.88 |
| MTTR AVERAGE REPAIR TIME (HOURS) | 2 |
| Usability | Greater than 0.99999 |
| Service port lightning protection specifications | Common Mode ± 7kV (Maximum Support ± 10kV, No Damage to The Device) |
| Lightning protection specifications of the power port |
|
| Dimensions (w× d× h) |
|
| Weight (including packaging materials) | 7.39kg |
| Stacking ports | ANY 10/100/1000BASE-T ETHERNET INTERFACE OR 10GE SFP+ ETHERNET OPTICAL INTERFACE (SUPPORTED IN V200R019C10 AND LATER) |
| RTC | Backing |
| RPS | Not supported |
| PoE | Backing |
| Rated voltage range |
|
| Maximum voltage range |
|
| Maximum power consumption (100% flow, full fan speed) |
|
|
Typical power consumption (30% flow)
|
51W |
| Operating temperature range |
-5°C~+50°C (0m~1800m altitude)
Illustrate:
1800m ~ 5000m, the maximum temperature specification is reduced by 1 °C for every 220m increase in altitude. THE DEVICE DOES NOT SUPPORT BOOTING WHEN THE AMBIENT TEMPERATURE IS BELOW 0°C. |
| Short-term operating temperature range |
-5°C~+55°C (0m~1800m altitude) Illustrate:
1800m ~ 5000m, the maximum temperature specification is reduced by 1 °C for every 220m increase in altitude. the device supports short-term operation in cases where the normal operating temperature range is exceeded, subject to the following conditions:
The device does not support booting when the ambient temperature is below 0°C. The maximum distance of the optical module used in short-term operation should not exceed 10km. |
| Storage temperature range | -40°C~+70°C |
| AMBIENT NOISE (27°C, ACOUSTIC POWER) | Less than 58.9dB(A) |
| Relative humidity range | 5% RH TO 95% RH, NON-CONDENSING |
| Operating altitude | 0m~5000m |
