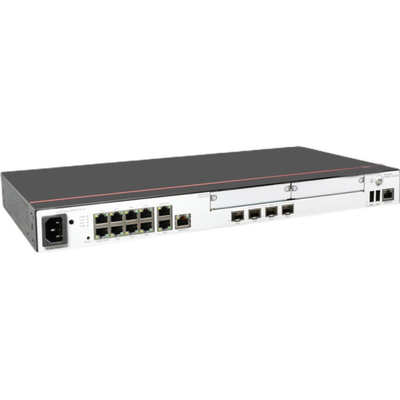

AR6121C-S composition
| 1. Product model silk screen printing | 2. LAN side interface: 8 GE electrical interfaces | 3. WAN side interface: 2 GE Combo interfaces |
| 4. 2 SIC slots | 5. pick-up location | 6. ac power cord interface |
|
7. The power cord anti-release snap-off clip mounting hole Illustrate:
insert the power cord anti-loosening snap to bind the power cord to prevent the power cord from loosening. |
8. RESET button Illustrate:
Reset button for manual resetting the device.
|
9. LAN side interface: GE Combo interface |
| 10. WAN side interface: GE optical interface | 11. USB3.0 interface (Host). | 12. USB 2.0 interface (Host). |
| 13. Console interface | - | - |
AR6121C-S interface description
| The interface name | Connector type | Description | Parts that can be used |
|---|---|---|---|
| Console interface | RJ45 |
The Console interface is used to connect the console and implement the field configuration function.
|
Console configuration cables |
| LAN SIDE INTERFACE: 8 GE ELECTRICAL INTERFACES | RJ45 |
GE electrical interface (10/100/1000Mbit/s adaptive) is mainly used for receiving and transmitting services of 100M/100Mbit/Gigabit services.
Illustrate:
The GE0 interface is the management network port of the device, which is used for web network management and mail opening. ALL GE LAN SIDE INTERFACES CAN BE SWITCHED TO WAN SIDE INTERFACES. |
Ethernet cable |
| LAN side interface: GE Combo interface |
GE ELECTRICAL INTERFACE: RJ45 GE OPTICAL INTERFACE: LC/PC |
Ge Combo interface, also known as photoelectric multiplexing interface, is composed of two Ethernet ports on the device panel (one is an optical port and the other is an electrical port), and there is only one forwarding interface inside the device. Combo port and its corresponding optical port is logically photoelectric multiplexed, the user can choose one of them according to the actual networking situation, but the two can not work at the same time. When one of these interfaces is activated, the other interface is automatically disabled.
Illustrate:
By default, the Combo interface operation mode is to automatically select the interface mode, that is, automatically switch between the optical port mode and the electrical port mode. The GE8 interface is the BootROM management network port of the device, which is used to upgrade the device software in the BootROM menu. |
supported optical modules: |
| WAN side interface: 2 GE Combo interfaces |
GE ELECTRICAL INTERFACE: RJ45 GE OPTICAL INTERFACE: LC/PC |
Ge Combo interface, also known as photoelectric multiplexing interface, is composed of two Ethernet ports on the device panel (one is an optical port and the other is an electrical port), and there is only one forwarding interface inside the device. Combo port and its corresponding optical port is logically photoelectric multiplexed, the user can choose one of them according to the actual networking situation, but the two can not work at the same time. When one of these interfaces is activated, the other interface is automatically disabled.
Illustrate:
By default, the Combo interface operation mode is to automatically select the interface mode, that is, automatically switch between the optical port mode and the electrical port mode. |
supported optical modules: |
| WAN SIDE INTERFACE: 1 GE OPTICAL INTERFACE | LC/PC |
GE OPTICAL INTERFACE IS USED FOR RECEIVING AND TRANSMITTING 100 MBIT/GIGABIT SERVICES.
|
Optical modules supported optical modules: |
| USB3.0 interface (Host) | USB 3.0 Type A |
The USB3.0 interface supports upload and download rates up to 5Gbit/s.
|
|
| USB2.0 interface (Host) | USB 2.0 Type A |
The USB2.0 interface supports upload and download rates up to 480 Mbit/s.
|
USB 2.0 STANDARD USB STICK |
AR6121C-S Specifications
| Project | Description |
|---|---|
| Installation mode |
|
| Dimensions (w x d x h, without packaging) [mm] |
|
| Dimensions (w x d x h, incl. packaging) [mm] | 570mm×390mm×390mm |
| Weight (empty, incl. packaging material) [kg] | 4.6kg |
| Weight (empty, without packaging materials) [kg] | 3.2kg |
| Processor specifications | 1.4GHz, quad core |
| Memory | 2GB |
| NAND Flash specification | 1GB |
| Console interface type | RJ45 |
| RTC | Backing |
| MAXIMUM POWER CONSUMPTION [W] | 410 |
| Power supply standard | AC BUILT-IN |
| The number of power modules | 1 |
| RATED INPUT VOLTAGE [V] | 100V~240V,50Hz/60Hz |
| INPUT VOLTAGE RANGE [V] | 90V~264V,47Hz~63Hz |
| MAXIMUM INPUT CURRENT [A] | 2A |
| MAXIMUM OUTPUT POWER [W] | 60W |
| Fan type | Built-in fan |
| Number of fan modules | 0 |
| Heat dissipation | Wind cooling dissipates heat |
| Airflow direction | Cold air enters the left and hot air comes out on the right |
| Expansion slots come standard | 2×SIC |
| The number of slots in the business board | 2 |
| Power supply redundancy | Not supported |
| RPS INPUT | Not supported |
| PoE function | Not supported |
| Ambient noise (sound power) [dB(A)] | 49.6dB(A) |
| LONG-TERM OPERATING AMBIENT TEMPERATURE [°C] |
0°C~45°C Illustrate:
1800m ~ 5000m, the maximum temperature specification is reduced by 1 °C for every 220m increase in altitude. |
| STORAGE TEMPERATURE [°C] | -40°C~+70°C |
| RELATIVE HUMIDITY [RH] IN LONG-TERM WORKING ENVIRONMENTS | 5% to 95%, non-condensing |
| Long-term operating altitude [m] | Less than 5000m |
