Product Details:
|
| Model Number: | CR5D00E1NC75 | Optical Type Supported: | 100Gbps CFP Optical Module |
|---|---|---|---|
| Working Mode: | Full-duplex | Dimensions (H X W X D): | 37.2 Mm X 178.7 Mm X 193.3 Mm (1.46 In. X 7.04 In. X 7.61 In.) |
| Typical Power Consumption: | 51.0 W | Weight: | 1.3 Kg (2.87 Lb) |
| Compliant Standard: | IEEE 802.3 | Warranty: | 1 Year |
| High Light: | 100GBase CFP Flexible Card,NE40E 1 Port Flexible Card |
||

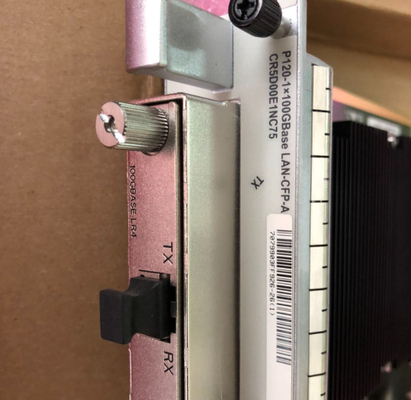

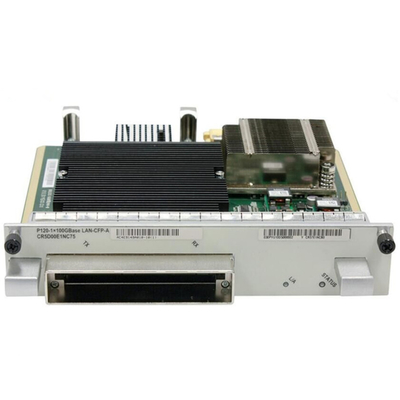

HuaWei NE40E-X3/X8 LPUF-120 business version CR5D00E1NC75 1-port 100GBase-CFP flexible card A (P120-A)
Overviews
The NE40E Series routers run on the Versatile Routing Platform operating system and use
Huawei-developed NP chips and hardware-based forwarding and non-blocking switching technologies. Based on distributed hardware forwarding, non-blocking switching technologies, distributed Clos architecture, and
industry-leading 2T bps platform, the NE40E Series routers have the following features:
1.Support for 1T routing line cards in each slot, with excellent compatibility with currently used line cards to
protect carriers' investments to the largest extent.
2.Line speed forwarding capabilities, industry-leading reliability, excellent scalability, a well-designed quality of
service (QoS) mechanism, and strong service processing capabilities.
3.Powerful service access and aggregation capabilities and various features, such as Layer 2 virtual private
network (L2VPN), L3VPN, multicast, multicast VPN (MVPN), and Multiprotocol Label Switching - Traffic
Engineering (MPLS-TE).
4.Various service features, such as IP Security (IPSec), Network Address Translation (NAT), and NetStream 5. Support for IPv6 and smooth transition from IPv4 to IPv6.
The NE40E can be flexibly deployed at the edge or core of IP or MPLS networks, simplifying network structure.
With its ability to provide an extensive range of services and reliable service quality, the NE40E is driving IP and
MPLS bearer networks to develop greater broadband capacity and to become more secure, more intelligent, and more service-oriented.
Specifications
|
Attribute |
Description |
|---|---|
| Optical type supported | 100Gbps CFP optical module |
| Working mode | Full-duplex |
| Compliant standard | IEEE 802.3 |
| Frame format | Ethernet_II, Ethernet_SAP and Ethernet_SNAP |
|
Item |
Specification |
|---|---|
| Dimensions (H x W x D) | 37.2 mm x 178.7 mm x 193.3 mm (1.46 in. x 7.04 in. x 7.61 in.) |
| Typical power consumption | 51.0 W |
| Typical heat dissipation | 165.5 BTU/hour |
| Weight | 1.3 kg (2.87 lb) |
| Ambient temperature | Long terms: 0 °C to 45 °C (32°F to 113°F) Short |
