Product Details:
|
| Model Number: | AR0MSDE11A00 | Single-board Pattern: | SIC |
|---|---|---|---|
| Hot-swap: | Hot-swap Is Supported | Size (wide× Deep × Height): | 100.1mm× 223.5mm× 19.82mm |
| Power Consumption: | 6W | Weight: | 0.3kg |
| Operating Altitude: | 0 To 5000m | Warranty: | 1 Year |
| High Light: | E1/T1 WAN Interface Card,HuaWei AR1220 Series Board,Partially Channelized WAN Interface Card |
||

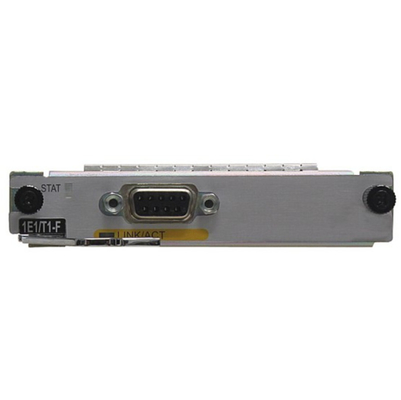

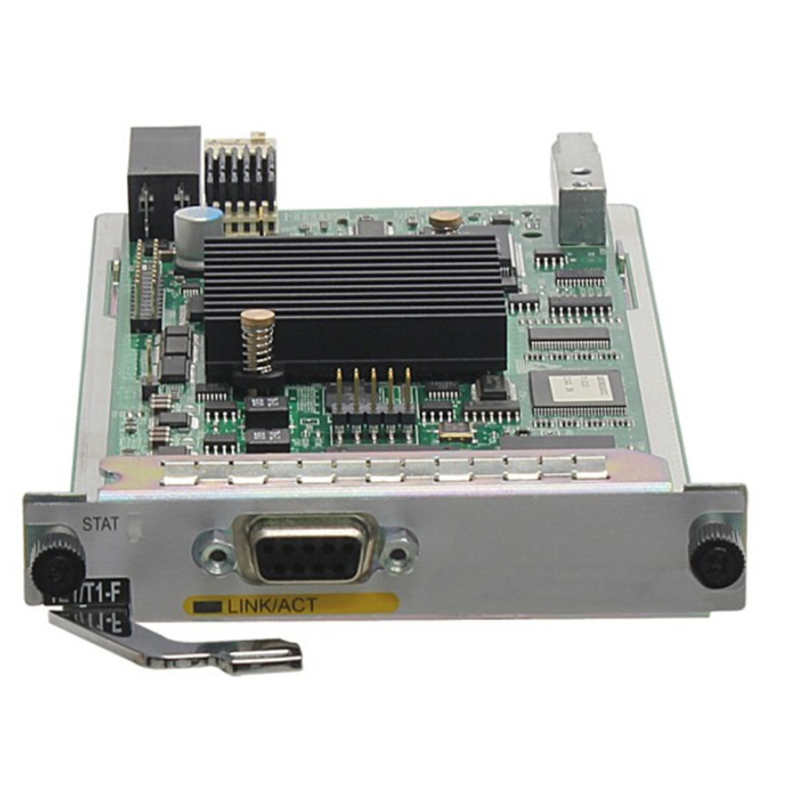

HuaWei AR1220 series board AR0MSDE11A00 1-port partially channelized E1/T1 WAN interface card
Single board overview
The AR0MSDE11A00 single board is the router's data and image signal processing module, providing an E1/T1-F interface for high-density WAN interconnection.
The AR0MSDE11A00 single board is mounted on the SIC slot of the equipment.
Companion relationships
|
The single board name |
The device model |
|---|---|
|
AR0MSDE11A00 illustrate: V200R001C01 and later release support. |
AR1200 series AR2200 Series (all models except AR2201-48FE, AR2202-48FE) AR3200 series AR3600 series |
Features and features
|
Features and features |
Description |
|---|---|
| Data functionality | Access to the WAN via the E1-F interface to complete the data transmission. |
| Partially channelized E1 can be arbitrarily bundled into a channel of 31 time slots, can only be bundled once, the interface rate is n×64kbit/s, n s 1 to 31. | |
| Business connectivity |
|
| Access | Compared to the channelized E1/T1 interface card, the partial channelized E1/T1 interface card is an access scheme. |
Specification parameters
|
Parameter |
Description |
|---|---|
| Single-board pattern | SIC |
| Hot-swap | Hot-swap is supported |
| Physical parameters |
|
| Environment parameters |
|
