Product Details:
|
Brand: | HuaWei | Product Name: | S5720-52P-LI-AC |
---|---|---|---|
The Type Of Product: | Gigabit Ethernet | MAC Address Table: | 16K |
The Supply Voltage: | 100V-240V,50/60Hz | Form Factor: | 442×220×43.6mm |
The Type Of Interface: | 48 10/100/1000Base-T Ethernet Ports, 4 Gigabit SFPs | Warranty: | 1 Year |
High Light: | HuaWei S5720-52P-LI-AC,Full Gigabit Layer 2 Aggregation Switch,48 Port Gigabit Electrical Aggregation Switch |

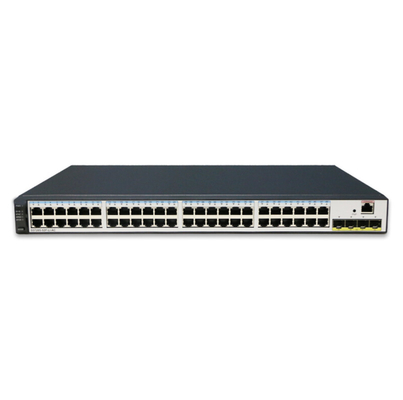

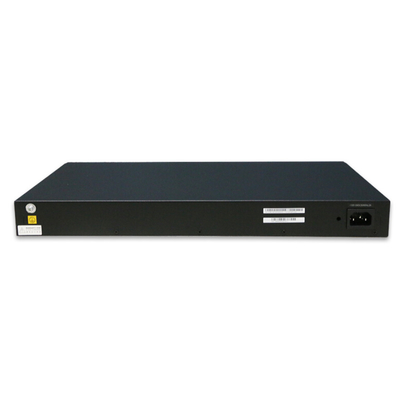

HuaWei S5720-52P-LI-AC 48-port Gigabit electrical + 4 optical ports full Gigabit Layer 2 aggregation switch
Descriptions
HuaWei S5720-52P-LI-AC can effectively increase the transmission speed of network clone type data packets, can connect multiple wired devices, can turn off flow control, other ports negotiate to turn on flow control, optimize network applications such as diskless systems, and ensure online games. The video is smooth. At the same time, the security control is improved again to make data transmission more secure; the signal capability is enhanced to make the network speed faster.
Specifications
The basic parameters | |
---|---|
Product model |
S5720-52P-LI-AC
|
The type of product |
Gigabit Ethernet
|
Back plate bandwidth |
336Gbps/2.56Tbps
|
Package forwarding rate |
87Mpps/144Mpps
|
Hardware parameters | |
---|---|
The type of interface |
48 10/100/1000Base-T Ethernet ports, 4 Gigabit SFPs
|
The number of interfaces |
52 mouths
|
The transfer rate |
10M/100M/1000Mbps
|
Networks and software | |
---|---|
QoS support |
QoS support
|
VLAN support |
VLAN support
|
MAC address table |
16K
|
The network management function |
Support for network management functions, support eSight network management system, support WEB network management characteristics
|
Network security |
User rating management
and password protection Support for DOS, ARP attack, ICMP anti-attack Support for combined binding of IP, MAC, port, VLAN Support for port isolation, port security, Sticky MAC support for MFF support for black hole MAC addresses Support mac address learning limit Support IEEE 802.1X certification, support single-port maximum number of users limit Support AAA certification, support Radius, HWTACACS, NAC and other ways SSH V2.0 supports HTTPS support CPU protection Support for blacklists and whitelists Support for DHCP Relay, DHCP Server, DHCP Snooping support for DHCPv6 Relay, DHCPv6 Server, DHCPv6 Snooping Ring Protection Technology: RRPP Ring Topology and RRPP Multi-Instance Support for SmartLink Tree Topology and SmartLink multi-instance, providing millisecond protection for primary feed links Support for Intelligent Ethernet Protection SEP Protocol Support ERP Ethernet Protection Protocol (G.8032) Support STP (IEEE 802.1d), RSTP (IEEE 802.1w) and MSTP ( The IEEE 802.1s protocol supports BPDU protection, root protection, and loopback protection supports BPDU Tunnel |
Other performance |
Reliability: Support for Ethernet OAM 802.3ah and 802.1ag Support for ITU-Y.1731 Support for DLDP Support for LACP IP Routing: Static Routing, SUPPORT FOR RIP, RIPng, OSPF, OSPFv3 Protocol I Pv6 Features: Support for ND (Neighbor Discovery) Support PMTU Support for IPv6 Ping, IPv6 Tracert, IPv6 Telnet Support for ACL Based on Source IPv6 Address, Destination IPv6 Address, Four-Tier Port, Protocol Type, etc. MLD v1/v2snooping ( Multicast Listener Discovery snooping) Multicast: Support for IGMP v1/v2/v3 Snooping and Quick Departure Mechanism Support for intra-VLAN multicast forwarding and multi-VLAN replication Multicast load sharing support for bundled ports Controlled multicast Support for port-based multicast traffic statistics Lightning-proofing service port lightning protection: 7KV Super Virtual Switching Network (SVF): Support for plug-and-play as SVF client zero configuration Supports the automatic loading of large packages and patches for client Support for business one-click automatic client support independent operation Interoperability: VBST VBST VLAN-based spanning tree protocol (and PVST/PVST-/RPVST interoperability) LNP link type negotiation protocol (similar to DTP) VCMP VLAN centralized management protocol (similar to VTP) |
Other parameters | |
---|---|
The supply voltage |
100V-240V,50/60Hz
|
Form factor |
442×220×43.6mm
|
other |
Long-term operating temperature: 0-45 degrees C
Relative humidity: 5-95% (no condensation) |
FAQ
1. How do you control the quality?
A: All products are tested for simulated usage scenarios, load, full load, and current sharing before shipment to ensure product quality.
2. What is your minimum order quantity?
A: There is no minimum order quantity, you can also make one. The only difference is the price and schedule.
3. Can you introduce your company?
A: I am honored. I will send you the company's introduction document later, so that you can introduce our company's information more comprehensively and directly.
4. What are the advantages of your company?
A: Sufficient inventory, to provide guarantee for subsequent update and replenishment, flexibly provide according to the different needs of different customers, and provide different solutions.
5. Can I send samples? Do you report it to me along with the price?
A: You can send samples, and the samples are subject to large size, and you need to bear the freight.
6. How does your company deal with quality issues?
A: Our company has been in this industry for more than 10 years. Already have a certain degree of popularity. We will analyze it carefully. If it is really our quality problem, you can rest assured that it will act in accordance with the contract and will never give you any worries. Our service team will serve you wholeheartedly.
