Product Details:
|
| Brand: | HuaWei | Product Name: | S5720-52X-PWR-SI-ACF |
|---|---|---|---|
| The Product Type: | Gigabit Ethernet,Three Floors | The Type Of Interface: | 48 10/100/1000Base-T Ethernet Ports, 4 GigabitSFP Plus |
| PoE Is Powered: | PoE Power Is Supported | Maximum Power: | 1150W |
| MAC Address Table: | 16K | Warranty: | 1 Year |
| High Light: | S5720-52X-PWR-SI-ACF,40 Gigabit Uplink POE Switch,HuaWei 48 Port Uplink POE Switch |
||

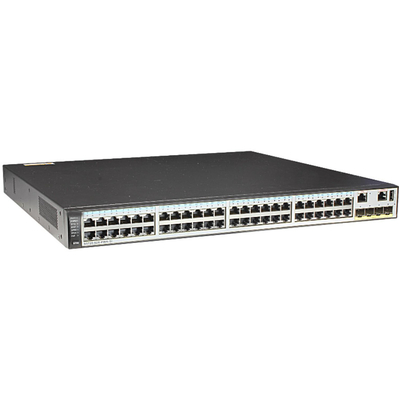

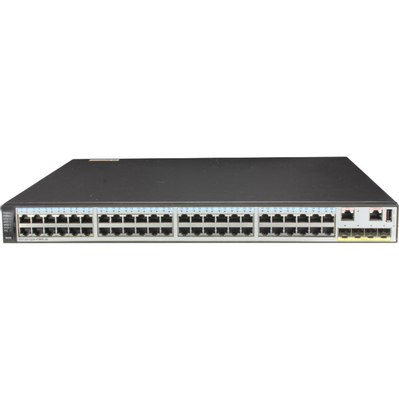

S5720-52X-PWR-SI-ACF HuaWei 48-port Gigabit power 40 Gigabit uplink POE power supply switch
Overviews
HuaWei S5720-52X-PWR-SI-ACF can effectively increase the transmission speed of network clone type data packets, can connect multiple wired devices, can turn off flow control, other ports negotiate to turn on flow control, optimize network applications such as diskless systems, and guarantee Online games, smooth video. At the same time, the security control is improved again to make data transmission more secure; the signal capability is enhanced to make the network speed faster.
Specifications
| The basic parameters | |
|---|---|
| Product model |
S5720-52X-PWR-SI-ACF
|
| The product type | |
| The application level |
Three floors
|
| Package forwarding rate |
132Mpps
|
| Hardware parameters | |
|---|---|
| The type of interface |
48 10/100/1000Base-T Ethernet ports, 4 gigabitSFP plus
|
| The number of interfaces |
52 mouthfuls
|
| The transfer rate |
10M/100M/1000Mbps
|
| Network and software | |
|---|---|
| VLAN support |
VLAN is supported
|
| MAC address table |
16K
|
| Network security |
Smart iStack
Stack support virtual cable detection (Virtual Cable Test) supports SNMPv1/v2c/v3 support for RMON support for network management systems, web pipe characteristics support system logs, and hierarchical alerts support sFlow |
| Other performance |
Switching capacity: 336Gbps/3.024Tbps
IP Routing: Static Routing, RIPv1/2, RIPng, OSPF, OSPFv3, ECMP, ISIS, ISISv6, BGP, BGP4 plus, VRRP, VRRP6 multicast support: PIMDM, PIM SM, PIMSSM support IGM Pv1/v2/v3 Snooping and fast departure mechanisms Support for in-VLAN multi-broadcast forwarding and multi-VLAN replication Support for multi-stream load sharing for bundled ports Supports port-based multicast traffic statistics Super Virtual Switching Network (SVF): Supports plug-and-play as sVF client zero configuration Support for autoloading of for large packages and patches Support for business one-click auto-release client support for independent running Openflow: Support for multi-controller Support for multi-level flow tables Support Group table Supports Meter Support for Openflow 1.3 Standard Interoperability: VBST Based on VLAN Spanning Tree Protocol (and PVST/PVST/RPVST Interoperability) LNP Link Type Negotiation Protocol (similar to DTP features) VCMP VLAN centralized management protocol (similar to VTP) Pluggable dual power supply, AC power is supported and a 1150W AC power supply is configured by default |
| Other parameters | |
|---|---|
| PoE is powered |
PoE power is supported
|
| Maximum power |
1150W
|
