Product Details:
|
| Product Name: | CCR2004-16G-2S+ | Architecture: | ARM 64bit |
|---|---|---|---|
| RouterOS License: | 6 | Storage Size: | 128 MB |
| Max Power Consumption: | 48W | 10/100/1000 Ethernet Ports: | 16 |
| SFP+ Ports: | 2 | Warranty: | 1 Year |
| High Light: | MikroTik Gigabit Wired Router,CCR2004-16G-2S+,16 Gigabit Port Gigabit Wired Router |
||
MikroTik CCR2004-16G-2S+ Gigabit wired router 16 Gigabit electrical port 20 Gigabit optical port
Description
Like the other models in CCR2004 series, this CCR also features the Annapurna Labs Alpine v2 CPU with 4x 64-bit ARMv8-A Cortex-A57 cores running at 1,7GHz. But here’s the difference. This powerful router crushes all previous CCR models in single-core performance, and that is the most important aspect when it comes to heavy operations based on per-connection processing. Like queues, for example.

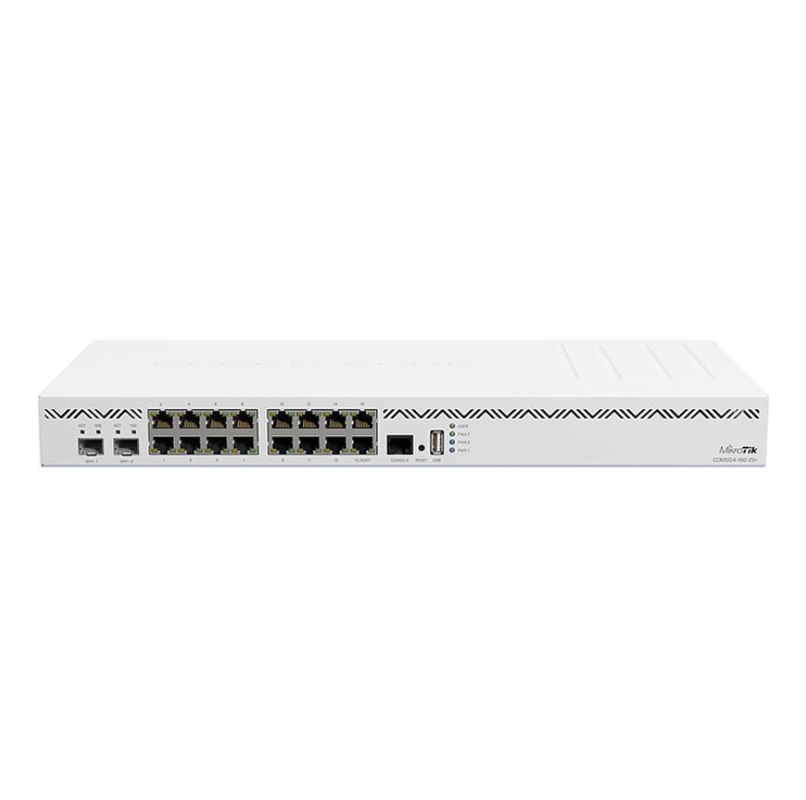

The new router has 18 wired ports, including 16x Gigabit Ethernet ports and two 10G SFP+ cages. It also has a full-size USB and RJ-45 console port on the front panel.

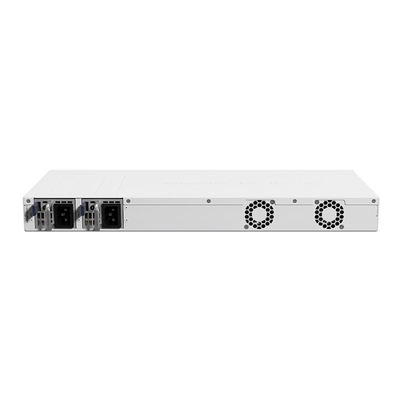

Like all CCR devices, it comes in a classic white 1U rackmount case. Built-in dual redundant power supplies are included, so you have one less thing to worry about. And, of course, there is active cooling to keep things nice and cool.
Each group of 8 Gigabit Ethernet ports is connected to a separate Marvell Amethyst family switch-chip. Each switch chip has a 10 Gbps full-duplex line connected to the CPU. The same goes for each SFP+ cage - a separate 10 Gbps full-duplex line. Boards come with 4GB of DDR4 RAM and 128MB of NAND storage.
Features
| Details | |
|---|---|
| Product code | CCR2004-16G-2S+ |
| Architecture | ARM 64bit |
| CPU | AL32400 |
| CPU core count | 4 |
| CPU nominal frequency | 1700 MHz |
| RouterOS license | 6 |
| Operating System | RouterOS (v7 only) |
| Size of RAM | 4 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200’000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
| IPsec hardware acceleration | Yes |
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Frequency (Hz) | 50/60 |
| Max power consumption | 48 W |
| Max power consumption without attachments | 35 W |
| FAN count | 2 |
| 10/100/1000 Ethernet ports | 16 |
| SFP+ ports | 2 |
| Serial console port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB 3.0 type A |
| Max USB current (A) | 0.9 |
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Certification | CE, CCC |
| IP | IP20 |
