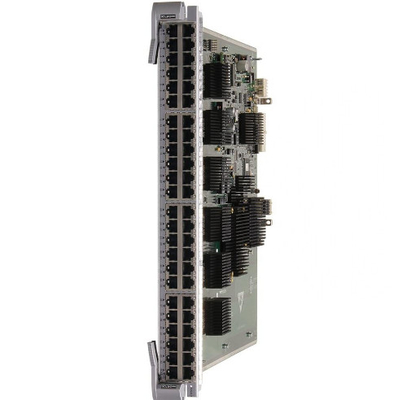

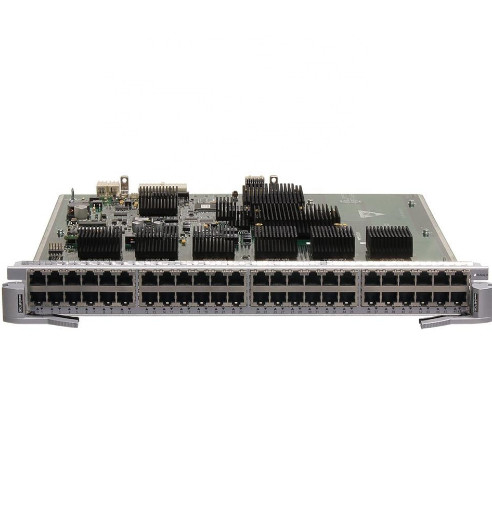

Gigabit Electrical Ethernet Interface Board EC 48 Port HuaWei S7700 Series

Gigabit Electrical Ethernet Interface Board EC 48 Port HuaWei S7700 Series
Gigabit Electrical Ethernet Interface Board EC 48 Port HuaWei S7700 Series Gigabit Electrical Ethernet Interface Board EC 48 Port HuaWei S7700 Series

Large Image :  Gigabit Electrical Ethernet Interface Board EC 48 Port HuaWei S7700 Series

Product Details:
Place of Origin: Guangdong, China
Brand Name: HuaWei
Certification: FCC,CCC,CE
Model Number: ES0D0G48TC00
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable

Gigabit Electrical Ethernet Interface Board EC 48 Port HuaWei S7700 Series

Description
Model Number: ES0D0G48TC00 Dimensions (H X W X D): 35.1 Mm X 394.7 Mm X 426.8 Mm (1.38 In. X 15.54 In. X 16.80 In.)
Weight: 2.66 Kg (5.86 Lb) Maximum Power Consumption: 68 W
Ports: 48-port 10/100/1000BASE-T Interface Card (EC, RJ45) Operating Temperature: 0°C To 45°C (32°F To 113°F)
Operating Relative Humidity: 5% RH To 95% RH (noncondensing) Warranty: 1 Year
High Light:

Gigabit Electrical Ethernet Interface Board

,

HuaWei S7700 Series Ethernet Interface Board

,

48 Port Gigabit Ethernet Board EC

ES0D0G48TC00 HuaWei S7700 series 48-port Gigabit Ethernet electrical interface board EC



HW S7700 Series Switches

ES0D0G48TC00 48-Port 10/100/1000BASE-T Interface Card (EC, RJ45)

The S7700 series switches (S7700 for short) are high-end smart routing switches designed for next-generation enterprise networks. The S7700 design is based on Huawei’s intelligent multi-layer switching technology to provide intelligent service optimization methods, such as MPLS VPN, traffic analysis, comprehensive HQoS policies, controllable multicast, load balancing, and security, in addition to high-performance Layer 2 to Layer 4 switching services. The S7700 also features super scalability and reliability. The S7700 series is available in three models: S7703, S7706, and S7712. The switching capacity and port density of all three models is expandable. The S7700 is based on a new hardware platform, which adopts a left-to-rear ventilation channel to achieve better energy efficiency. Key components work in redundancy mode to minimize risks of system breakdown and service interruption. Using innovative energy-saving chips, the S7700 provides an industry-leading solution for a sustainable energy-saving network.

Specifictions
Basic function
Provides forty-eight GE electrical ports for data transmission and line-rate switching.
Distributed forwarding
Performs concurrent data forwarding using a distributed data plane.
Hot swapping
The ES0D0G48TC00 is hot swappable.
Ports
48-port 10/100/1000BASE-T interface card (EC, RJ45)
Physical specifications
* Dimensions (H x W x D): 35.1 mm x 394.7 mm x 426.8 mm (1.38 in. x 15.54 in. x 16.80 in.)
* Weight: 2.66 kg (5.86 lb)
* Maximum power consumption: 68 W
Environment specifications
* Operating temperature: 0°C to 45°C (32°F to 113°F)
* Operating relative humidity: 5% RH to 95% RH (noncondensing)
* Storage temperature: -40°C to +70°C (-40°F to +158°F)
* Storage relative humidity: 5% RH to 95% RH (noncondensing)




Gigabit Electrical Ethernet Interface Board EC 48 Port HuaWei S7700 Series 0







FAQ

Q:What's your advantages?
A:We are a professional supplier in network equipment field more than 8 years.We supply original products with good price to customers.We have professional sales team provide 24 hours free-consulting,we also have professional technical team and after-sales department.









Q:What's the warranty of your products?
A:One year(except for the used products).









Q:What's the payment terms?
A:Pre T/T or west union or Alibaba Trade Assurance order.









Q: How to ship the product to me?
A: We can ship to worldwide by express logistics, such as DHL, it usually takes 3-5 days to destination.









Q:What's the package?
A:Original packing.For the outside,we will pack it in an empty box to protect from damaged during transportation,and ensure you will receive the goods in good condition.









Q:What's the MOQ for your products?
A:One piece.













Our service

1. One-to-one "heart-to-heart service".

The sales representative only serves five customers.

We look at providing you with continuous long-term service, but not just one or two cooperation.



2. Warranty.

1 year



3. Perfect after-sales service.

Specify the phone number 24 hours a day.

Mailbox and manager.



4. Quality assurance.

100% new material production, 100% reliable quality.
