Product Details:
|
Model Number: | RT-MSR2600-10 | Transmission Speed: | 10/100/1000Mbps |
---|---|---|---|
Supply Voltage: | AC 100-240V,50Hz/60Hz | Power Supply: | 30W |
Product Size: | 360×300×44.2mm | WAN Interface: | 2 (electrical Port) |
LAN Interface: | 8 (electrical Port) | Warranty: | 1 Year |
High Light: | Dual WAN enterprise class router,400 Units enterprise class router,30W dual WAN router |

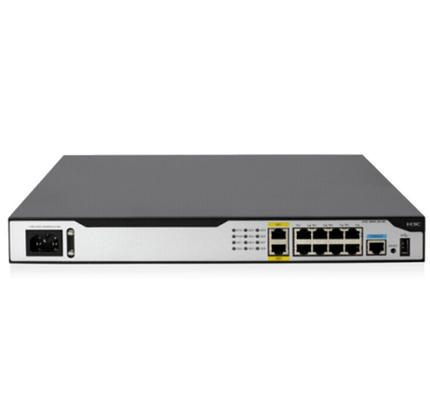

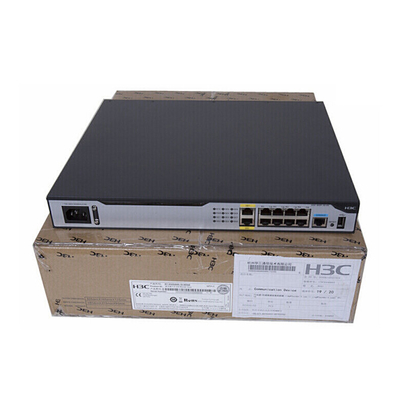

H3C RT-MSR2600-10 dual WAN port Gigabit enterprise-class bandwidth router with 400 units
Features
1. Advanced technical support
* Adopt H3C's mature Comware network operating system, provide a more intelligent business scheduling management mechanism, support loose coupling of business modules, and realize dynamic loading of processes and patches
* Excellent high-performance multi-core CPU processor, using non-blocking switching architecture, greatly enhances the concurrent processing capability of multi-service
2. Comprehensive SDN capabilities
* Support management and control protocols such as Telemetry, Netconf, etc., which can be managed and controlled by H3C AD-WAN controller and third-party controllers
* Support forwarding services such as Segment Routing, VxLAN, and EVPN, and can define multiple forwarding models to meet the networking requirements of different services
* Support URL, U disk, DHCP zero-configuration deployment, to meet the requirements of batch, low-cost, fast start * Support DPI application identification ability, accurately identify network traffic, realize network traffic visualization, customization and flexible scheduling
* Support SR/SRv6 function, with EVPN L2VPN over SRv6 Policy/BE, EVPN L3VPN over SRv6 Policy/BE networking capability
3. Routing and switching integration
* Most models have built-in full Gigabit Ethernet switching interfaces of different specifications and quantities, which can be directly connected to multiple PCs and IP terminal devices for maintenance and management
* Switching interface can realize 2/3 layer switching, flexible and convenient configuration and application
* The switch interface supports rich switch port security features and supports Portal/802.1X authentication
4. Powerful security features
* Support packet-based quintuple filtering, ASPF state filtering, MAC address filtering, URL filtering, domain-based firewall, IPS, etc.
* Diversified VPN technologies, including: IPsec, L2TP, GRE, ADVPN, MPLS VPN, and the superimposed use of multiple VPN technologies
* Terminal access security: support 802.1X/Portal authentication, EAD security check authentication, terminal MAC address authentication, etc.
* DDoS attack defense: support anti-SYN flood, ACK flood, RST flood, UDP flood and other attacks
* Device management security: support role-based rights management, resource allocation based on roles, correspondence between users and roles, and flexible security control rights
* Support control plane flow restriction: support flow control and filtering based on known protocol types and custom protocol packets
5. Refined business control
* Through refined identification and refined control, functions such as rate limiting, bandwidth guarantee, and filtering of application-layer services are realized, and network optimization is guided by refined statistics
* Supports Equal-Cost Link Load Balancing (ECMP) and Unequal-Cost Link Load Balancing (UCMP), UCMP supports load balancing according to the link bandwidth ratio;
6. Intelligent network management
* Support Telnet/SSH, SNMP, TR069, Netconf and other network management methods
* Support EAA (Embedded Automation Architecture) function, with TCL and Phython script self-programming capabilities, can monitor the internal events and states of system software and hardware components, and automatically execute predefined scripts when specific events occur
7. High reliability
* Link millisecond-level fast fault detection technology (BFD), which can realize linkage with static routing, RIP/OSPF/BGP/ISIS dynamic routing, VRRP and interface backup
* Network service quality intelligent detection technology (NQA), which can realize linkage with static routing, VRRP and interface backup
* Support redundant backup and load sharing of multiple devices (VRRP/VRRPE)
Specifications
Transmission speed | 10/100/1000Mbps |
---|---|
Port structure | Non modular |
WAN interface | 2 (electrical port) |
LAN interface | 8 (electric port) |
Other ports |
1 USB2.0 port 1 con / aux |
Expansion module | 3 SiC slots |
firewall | Built in firewall |
---|---|
network security |
Support open system authentication and shared key authentication Support WEP, TKIP and CCMP encryption Support WPA and RSN security protocols Support port authentication: PSK, 802.1x, PSK and MAC |
Network management |
SNMP V1 / V2C / V3, MIB, syslog, RMON, web management, TR069 H3C's BIMS remote management solution, supporting zero configuration deployment (U disk opening, etc.) |
Product memory |
Memory: 512MB FLASH:128MB |
---|---|
Supply voltage | AC 100-240V,50Hz/60Hz |
Power supply | 30W |
Product size | 360×300×44.2mm |
Environmental standards |
Ambient temperature: 0-45 ℃ Relative humidity: 5% - 95% (no condensation) |
Other features | 3G support |
Other performance |
IPv4 forwarding performance: 600kpps IPv6 forwarding performance: 350kpps Forwarding performance with service (iMix): 450mbps |
