Overviews

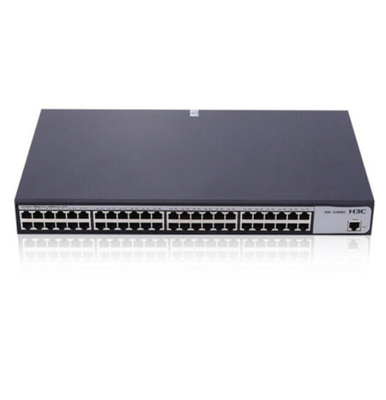

H3C S1800G series Ethernet switches are all-gigabit WEB managed switches independently developed and launched by Hangzhou H3C Communication Technology Co., Ltd. (hereinafter referred to as H3C) to meet the needs of high-performance networks. More comprehensive security access strategy, stronger network management and maintenance ease of use; can be widely used in government, small and medium-sized enterprises, general vocational education, security monitoring and hotels and other multi-industry network construction scenarios. The SMB-S1848G provides 48 10/100/1000 Base-T electrical ports with a switching capacity of 96Gbps and a packet forwarding rate of 71.4Mpps.
Specifications
| Product number |
S1848G
|
|---|---|
| Product type |
Gigabit Ethernet, Layer 2
|
| Application level |
Second floor
|
| Backplane bandwidth |
96
|
| Packet forwarding rate |
72Mpps
|
| transfer method |
Store-and-forward
|
| Interface Type |
48 10/100/1000BASE-T auto-negotiation Ethernet ports
|
|---|---|
| Transmission rate |
10M/100M/1000Mbps
|
| Port structure |
Non-modular
|
| Management port |
1 console port
|
| LED indicator |
Per port: Link/Act, Speed
Per device: Power
|
| Voltage |
100V-240V, 50/60Hz
|
|---|---|
| Maximum power |
28.2W
|
| Dimensions |
440×238×44mm
|
| Other |
Working environment temperature: 0℃-40℃
Relative humidity of working environment: 5%~95% non-condensing
|
