Product Details:
|
Model Number:: | EWP-WA6528-FIT | Power Input: | PoE Power Supply: Meets The 802.3at Power Over Ethernet Standard |
---|---|---|---|
Dimensions (l×w X H): | 220mm × 220mm × 100mm | Maximum Power Consumption: | 18W |
Antenna Type: | Built-in Directional Antenna | Maximum Rate: | 1.267Gbps |
MIMO: SPATIAL STREAM: | 2×2:2 | Maximum Transmit Power: | 2.4G: 27dBm (combined Power) 5G: 26dBm (combined Power) |
High Light: | Dual Frequency POE Wireless Access Point,builtin antenna POE Wireless Access Point,802.11ax Wireless Access Point |

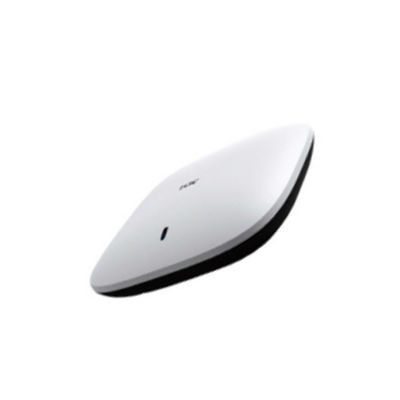

H3C EWP-WA6528-FIT built-in antenna dual frequency eight stream 802.11ax 5G high-density wireless AP
Overviews
H3C EWP-WA6528-FIT, the highest transmission rate 802.11ax maximum rate of the whole machine: 1.15Gbps+4.8Gbps, frequency range Dual frequency (5GHz, 2.4GHz).
Specifications
Product Type | Wireless Access Point |
---|---|
Frequency range | Dual frequency (2.4GHz, 5GHz) |
Maximum transmission rate | The maximum rate of 802.11ax of the whole machine: 1.15Gbps+4.8Gbps |
Other interfaces | Console port |
Network interface | 100/1000M/2.5G/5G electrical port, 10/100/1000M electrical port*2 (one of which supports IoT expansion) |
Antenna type | Built-in smart antenna system |
Antenna gain | 7dBi |
Safety performance | GB4943, EN60601-1-2 (medical), UL/CSA 60950-1, EN/IEC 60950-1, EN/IEC 60950-22 |
Status indicator | Status indicator Blink alternate flashing mode, orange, green and blue flashing mode in different working states, terminal access to breathing flashing mode |
Product certification | FCC Part 15, EN 300 328, EN 301 893, the Ministry of Industry and Information Technology radio transmission equipment model approval |
Power supply mode |
Local power supply: support DC 54V PoE: Support 802.3at compatible power supply, and support dual Ethernet ports at the same time POE power supply |
Power supply | Whole machine power consumption: ≤25W (without IoT, with IoT≤37W) |
Product size | 220×220×46mm |
Product weight | 1.13kg |
Environmental standards |
Working temperature: -10-55℃ Storage temperature: -40-70℃ Working humidity/storage humidity: 5%-95% (non-condensing) |
Other performance |
Internet of things expansion: support BLE, RFID, ZigBee and other Internet of things full standard expansion Transmitting power (single channel maximum): 20dBmAdjustable power granularity: 1dBm |
Other features | Support reset/restore factory configuration, built-in Bluetooth |
Protection grade | IP41 |
FAQ
Q: Can we get samples?
A: Yes, but we need to charge a sample fee.
Q: Can you offer better prices? And discount?
A: Yes, Powerlink does not have a minimum order quantity, but different quantities have different prices.
Q: Can you take care of the goods?
Answer: If you wish, we will organize and arrange all the deliveries to your office.
Q: How about the payment item?
Answer: T/T, PAYPAL, Western Union. Q: Delivery time? A: Sample order, 3-5 working days. For larger orders, 5-8 working days after receiving the deposit.
Q: How long is your warranty period?
Answer: The warranty period is 12 months. This warranty does not cover damage caused by man-made damage, improper maintenance, improper use, negligence, normal wear and tear and force majeure (such as natural disasters, earthquakes, fires, etc.).
