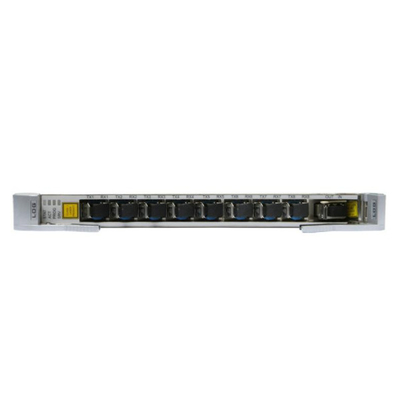

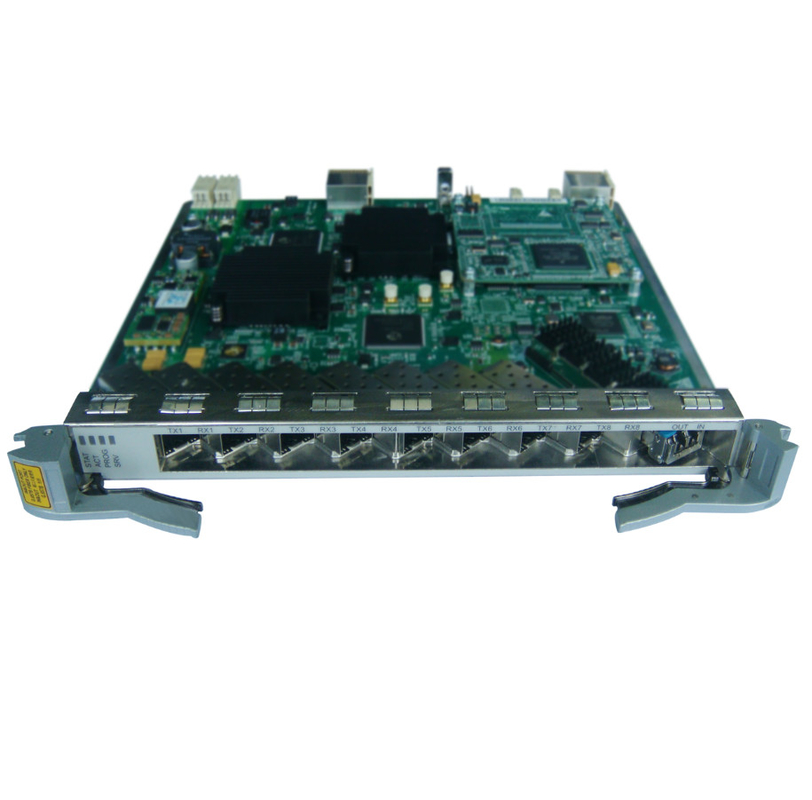

HuaWei TN11LOA02 LOA Board 8 Channel Any Rate MUX OTU2 Wavelength Conversionboard

HuaWei TN11LOA02 LOA Board 8 Channel Any Rate MUX OTU2 Wavelength Conversionboard
HuaWei TN11LOA02 LOA Board 8 Channel Any Rate MUX OTU2 Wavelength Conversionboard HuaWei TN11LOA02 LOA Board 8 Channel Any Rate MUX OTU2 Wavelength Conversionboard

Large Image :  HuaWei TN11LOA02 LOA Board 8 Channel Any Rate MUX OTU2 Wavelength Conversionboard

Product Details:
Place of Origin: Guangdong, China
Brand Name: HuaWei
Certification: FCC,CCC,CE
Model Number: TN11LOA02
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable

HuaWei TN11LOA02 LOA Board 8 Channel Any Rate MUX OTU2 Wavelength Conversionboard

Description
Model Number: TN11LOA02 Typical Power Consumption (W): 31.8W
Maximum Power Consumptiona (W): 36W Dimensions Of Front Panel (H X W X D): 264.6 Mm (10.4 In.) X 25.4 Mm (1.0 In.) X 220 Mm (8.7 In.)
Weight: 1.19 Kg (2.64b.) Meet The Criteria: IEEE 802.3ab
Client-side Service Type: Ethernet Service At A Rate Of 125 Mbit/s Warranty: 1 Year
High Light:

HuaWei TN11LOA02 LOA board

,

Wavelength Conversionboard LOA board

HuaWei OSN6800 service board TN11LOA02 8 channel Any service to OTU2 convergence WDM single board LOA





Descriptions

MODEL:TN11LOA02. Description: 8 x Any-rate MUX OTU2 wavelength conversionboard.



The LOA board converges multiple service signals into 1 x OTU2 optical signals, and then converts the signals into standard DWDM wavelengths that comply with ITU-T G.694.1. The LOA board also performs the reverse process.



LOA converts signals as follows

· 8 x (125 Mbit/s to 1.25 Gbit/s signals) <-> 1 x OTU2

· 4 x (1.49 Gbit/s to 2.67 Gbit/s signals)<-> 1 x OTU2

· 4 x OTU1 <-> 1 x OTU2

· 2 x 3G-SDI/3G-SDIRBR/FC400/FICON4G/Infiniband 2.5G <-> 1 x OTU2

· 1 x FC800/FICON8G/Infiniband 5G <-> 1 x OTU2

· 1 x FC1200/FICON10G/10GE LAN<-> 1 x OTU2e

Supports hybrid transmission of signals at a rate of 4.25 Gibt/s or lower, but does not support hybrid transmission of FC800/FICON8G/Infiniband 5Gsignals. The total rate of signals received at the client side cannot exceed 10 Gbit/s.



Specifications

Function and Feature

Description

Basic function

LOA converts signals as follows:

  • 8 x (125 Mbit/s to 1.25 Gbit/s signals) <-> 1 x OTU2

  • 4 x (1.49 Gbit/s to 2.67 Gbit/s signals)<-> 1 x OTU2

  • 4 x OTU1 <-> 1 x OTU2

  • 2 x 3G-SDI/3G-SDIRBR/FC400/FICON4G/Infiniband 2.5G <-> 1 x OTU2

  • 1 x FC800/FICON8G/Infiniband 5G <-> 1 x OTU2

  • 1 x FC1200/FICON10G/10GE LAN<-> 1 x OTU2e

Supports hybrid transmission of signals at a rate of 4.25 Gibt/s or lower, but does not support hybrid transmission of FC800/FICON8G/Infiniband 5G signals. The total rate of signals received at the client side cannot exceed 10 Gbit/s.

Client-side service type

FE: Ethernet service at a rate of 125 Mbit/s

GE: Ethernet service at a rate of 1.25 Gbit/s. Supports GE optical signals and GE electrical signals.

10GE LAN: Ethernet service at a rate of 10.31 Gbit/s

STM-1/OC-3: SDH/SONET service at a rate of 155.52 Mbit/s

STM-4/OC-12: SDH/SONET service at a rate of 622.08 Mbit/s

STM-16/OC-48: SDH/SONET service at a rate of 2.5 Gbit/s

FC100: SAN service at a rate of 1.06 Gbit/s

FC200: SAN service at a rate of 2.12 Gbit/s

FC400: SAN service at a rate of 4.25 Gbit/s

FC800: SAN service at a rate of 8.5 Gbit/s

FC1200: SAN service at a rate of 10.51 Gbit/s

FICON4G: SAN service at a rate of 4.25 Gbit/s

FICON8G: SAN service at a rate of 8.5 Gbit/s

FICON10G: SAN service at a rate of 10.51 Gbit/s

Infiniband 2.5G: SAN service at a rate of 2.5 Gbit/s

Infiniband 5G: SAN service at a rate of 5 Gbit/s

ESCON: SAN service at a rate of 200 Mbit/s

FICON: SAN service at a rate of 1.06 Gbit/s

FICON Express: SAN service at a rate of 2.12 Gbit/s

FDDI: SAN service at a rate of 125 Mbit/s

HD-SDI: Bit-serial digital interface for high-definition television systems at a rate of 1.49 Gbit/s

HD-SDIRBR: Bit-serial digital interface for high-definition television systems at a rate of 1.49/1.001 Gbit/s

OTU1: OTN service at a rate of 2.67 Gbit/s

SDI: Serial digital interface at a rate of 270 Mbit/s

DVB-ASI: Video service at a rate of 270 Mbit/s

3G-SDI: Video service at a rate of 2.97 Gbit/s

3G-SDIRBR: Video service at a rate of 2.97/1.001 Gbit/s

NOTE:

The LOA board supports both GE electrical signal and GE optical signal. For GE electrical signal transmission, it is recommended that the board be equipped with at most two GE electrical modules to facilitate fiber routing.

The LOA board supports access of SDI, HD-SDI, HD-SDIRBR, 3G-SDI, 3G-SDIRBR, and DVB-ASI electrical signals. When the board is used to accept these electrical signals, a digital video O/E converter must be used for O/E or E/O conversion and the optical module of the converter must agree with the board optical module specifications. The digital video O/E converter is a third-party device. Customers can purchase a digital video O/E converter by themselves.

The FICON4G service and the FC400 service are processed identically. For the FICON4G service, you can configure it as the FC400 service on the U2000.

OTN function

  • Provides the OTU2/OTU2e interface on WDM-side.

  • Supports the OTN frame format and overhead processing by referring to the ITU-T G.709.

  • ODU0 layer: supports the PM function and PM non-intrusive monitoring.

  • ODUk(k=1, 2) layer: supports the PM and TCM function, and PM and TCM non-intrusive monitoring.

  • ODUflex layer: supports the PM function and PM non-intrusive monitoring functions.

  • OTUk (k=1, 2) layer: supports the SM function.

WDM specification

Supports ITU-T G.694.1-compliant DWDM specifications.

Tunable wavelength function

Supports tunable wavelength optical modules that provide for 80 wavelengths tunable in the C band with 50 GHz channel spacing.

ESC function

Supported

PRBS test function

Supports the PRBS function on the client and WDM sides.

NOTE:

The PRBS function on the client side is only supported when the client-side service type is STM-1, STM-4, STM-16, OC-3, OC-12, OC-48, or OTU1.

LPT function

The board supports the LPT function only when the client-side service type is GE/FE/10GE LAN.

FEC coding

  • Supports forward error correction (FEC) on the client side that complies with ITU-T G.709, only when the client side service type is OTU1.

  • Supports forward error correction (FEC) on the WDM side that complies with ITU-T G.709.

  • Supports advanced forward error correction (AFEC-2) on the WDM side that complies with ITU-T G.975.1.

NOTE:

Boards that use different FEC modes cannot interconnect with each other.



Mechanical Specifications

  • Dimensions of front panel (H x W x D): 264.6 mm (10.4 in.) x 25.4 mm (1.0 in.) x 220 mm (8.7 in.)

  • Weight: 1.19 kg (2.64b.)

Power Consumption

Board

WDM-Side Optical Module

Typical Power Consumption (W)

Maximum Power Consumptiona (W)

TN11LOA

800 ps/nm-C Band (Odd & Even Wavelengths)-Fixed Wavelength-NRZ-PIN-XFP

10 Gbit/s Multirate-10 km-XFP

10 Gbit/s Multirate-40 km-XFP

31.8

36

800 ps/nm-C Band-Tunable Wavelength-NRZ-PIN-XFP

32.8

37

a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature.
