Overviews

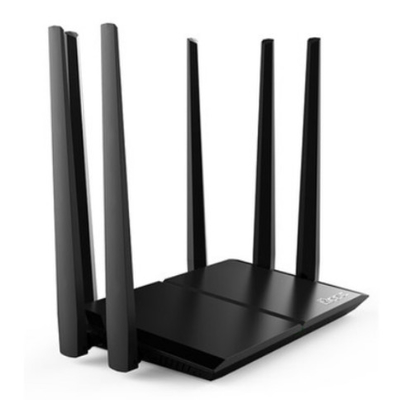

H3C Magic R300 Gigabit Edition is a full Gigabit wireless router specially designed by Xinhua Three Technology Co., Ltd. The full gigabit port allows every terminal in the home to experience the extreme speed brought by gigabit fiber broadband, six high-gain external antennas achieve outstanding wireless coverage, chip-level anti-interference technology brings stable and reliable wireless signals, one-key optimization Automatically select the wireless channel with the fastest transmission, intelligent flexible bandwidth protects games, videos, and web browsing without affecting each other. Enterprise-level software platform brings a stable and reliable security experience. Magic APP and H3C cloud services allow you to control the wireless at home anytime, anywhere The internet. The product integrates wired and wireless network connections, integrates the latest IEEE 802.11ac technology, and has a wireless transmission rate of up to 1200Mbps.
Specifications
| Project | Description | |
| Overview | ||
| Fixed interface |

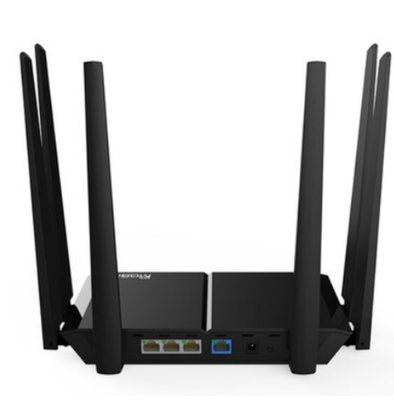

1 reset switch 1 10/100/1000Base-T Ethernet WAN port 3 10/100/1000Base-T Ethernet LAN ports |
|
| Antenna | 6 5dBi high gain omnidirectional antennas | |
| Working frequency |
802.11ac/n/a: 5.15-5.35GHz, 5.725GHz-5.850GHz (China) 802.11b/g/n: 2.4GHz-2.4835GHz (China) |
|
| Indicator light | 1 two-color LED, representing system and wireless status | |
| Follow the standard |
IEEE 802.11ac IEEE 802.11a/b/g/n IEEE 802.3 IEEE 802.3u Auto MDI(X) |
|
| Encryption | Wireless: no encryption, encryption (WPA /WPA2-PSK) | |
| Power supply | External, 12V DC 1A | |
| Dimensions (W×D×H) | 230mm×145mm×31mm | |
| Weight | 0.4kg (body) | |
| Operating temperature | 0℃~40℃ | |
| Storage humidity | 10%~90% RH non-condensing | |
| Power consumption | 8W | |
| Cooling method | Natural heat dissipation | |
| Safety regulations | GB7000.1;GB7000.212;GB17743;GB9254;GB/T17618;GB4943.1 | |
| Certification |
Radio transmission equipment type approval certificate CCC certification China RoHSEU RoHS |
|
| wireless |
2X2 MIMO architecture Support wireless timing on and off Support HT20/HT40/HT80 mode Support automatic or manual channel selection Support wireless power multi-level adjustment Support access client list display and control Support anti-scratch network, access restriction and one-click blackout Support multiple time period parental control Support 2.4G and 5G dual frequency in one Support Beamforming directional antenna Support wireless one-key acceleration Support automatic sleep and wake upSupport wired relay and wireless relay |
|
| Configuration management |
User management interface based on WEB and APP Centralized control system based on CAPWAP protocol Local upgrade through WEB page, one-click upgrade through cloud server |
|
