Product Details:
|
| Model Number: | ES1D2X48SX2S | Connector Type: | SFP+ |
|---|---|---|---|
| Dimensions (w×d × H): | 397.2mm×430.4mm×35.1mm | Weight: | 3.4kg |
| MAXIMUM POWER CONSUMPTION: | 258.1W | WORKING TEMPERATURE: | 0 °C ~ 45 °C |
| Complies With Standards: | IEEE 802.3ae | Warranty: | 1 Year |
| High Light: | IEEE 802.3ae 48 port interface board,SFP+ 48 port interface board |
||

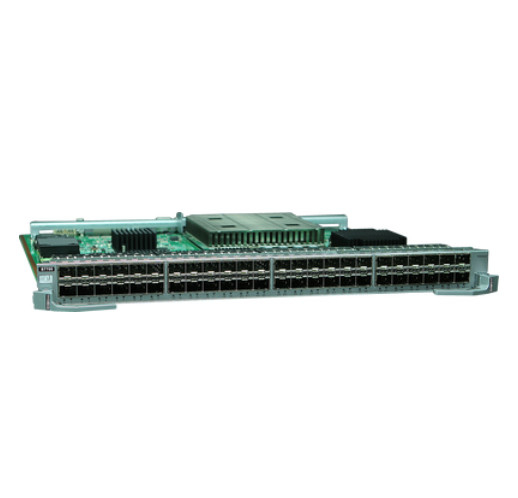

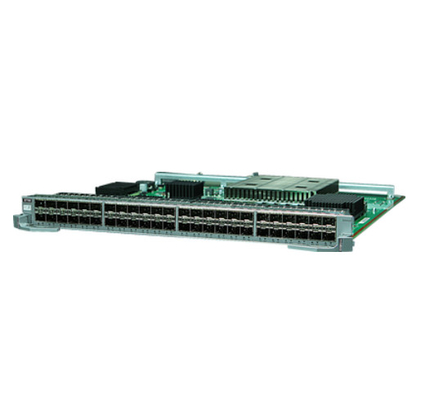

ES1D2X48SX2S 48 port 10 Ziguang interface board (X2S, SFP +) HuaWei S7700 series
|
veneer name |
S7700 FRAME |
|---|---|
| ES1D2X48SX2S |
S7703 FRAME, S7706 FRAME, S7710 FRAME, S7712 FRAME: V200R010C00 AND LATER VERSIONS ARE SUPPORTED S7703 PoE Frame, S7706 PoE Frame: V200R013C00 and later versions supported |
The ES1D2X48SX2S can be installed in:
|
function |
description |
|---|---|
| basic functionality | provides data access and switching of 48 gigabit/10 gigabit ethernet optical interfaces |
| distributed forwarding | data is forwarded in parallel through a distributed data plane |
| hot-swappable | backing |
IT IS NOT SUPPORTED FOR USE WITH SRUHX1 OR SRUHX1K SERIES CONTROL BOARDS.
DESCRIPTION OF THE LEDS OF THE ES1D2X48SX2S PANEL
|
numeric number |
light |
color |
meaning |
|---|---|---|---|
| 1 | LOWER OPTICAL INTERFACE ACT LIGHT | yellow | blinking: indicates that the corresponding interface has data sending and receiving. |
| 2 | UPPER OPTICAL INTERFACE ACT LIGHT | ||
| 3 | LOWER OPTICAL INTERFACE LINK LIGHT | green | solid: indicates that the corresponding interface link has been connected. |
| 4 | UPPER OPTICAL INTERFACE LINK LAMP | ||
| 5 | RUN/ALM: OPERATIONAL STATUS LED | green |
SOLID: INDICATES THAT THE BOARD IS POWERED ON. SOLID FOR THE FIRST 30 SECONDS INDICATES THAT THE CPU IS BOOTING; IF IT IS STILL ON AFTER 30 SECONDS, THE SOFTWARE IS NOT RUNNING. slow flash: indicates that the system of the board is in a normal operating state. flash: indicates that the system of the board is booting. |
| red | solid: indicates that the veneer is malfunctioning and requires manual intervention. | ||
| yellow | solid: indicates that the board is in a power-down state (such as executing the power off command to force the power down, the board is in the pre-startup stage). |
10GBASE SFP+/1000BASE-X OPTICAL INTERFACE
Properties of optical interfaces (using GE optical modules)
|
attribute |
description |
|---|---|
| connector type | SFP+ |
| optical interface properties | This is determined by the selected SFP optical module. For more information about the optical modules supported by the ES1D2X48SX2S and their properties, see GE eSFP package optical modules, GE-CWDM eSFP package color optical modules, and GE-DWDM eSFP package color optical modules. |
| complies with standards | IEEE802.3z |
| support frame formats | Ethernet_II,Ethernet_SAP,Ethernet_SNAP |
| supports network protocols | IP |
|
attribute |
description |
|---|---|
| connector type | SFP+ |
| optical interface properties |
Determined by the selected SFP+ - SFP+ high-speed cable (1m, 3m, 5m, 10m), QSFP+ - 4*SFP+ high-speed cable (1m, 3m, 5m), SFP+ optical module or SFP+ optical cable. For more information about the optical modules supported by ES1D2X48SX2S and their properties, see 10GE SFP+ package optical modules (OSXD22N00 is not supported), 10GE-CWDM SFP+ package color optical modules, and 10GE-DWDM SFP+ package color optical modules. illustrate:
The board only supports 10G SFP+ optical modules with a maximum transmission distance of ≤10km on S7703, S7706 and S7712 devices. |
| complies with standards | IEEE 802.3ae |
| support frame formats | Ethernet_II,Ethernet_SAP,Ethernet_SNAP |
| supports network protocols | IP |
|
attribute |
description |
|---|---|
| connector type | SFP+ |
| optical interface properties |
THIS IS DETERMINED BY THE SELECTED SFP PHOTOELECTRIC MODULE. For more information about the optoelectronic modules supported by the single board and their properties, see GE SFP package optoelectronic modules (support 100M/1000M rates). |
| use cable specifications | SFP PHOTOELECTRIC MODULE + NETWORK CABLE |
|
parameter items |
description |
|---|---|
| physical parameters |
|
| environment parameters |
WORKING TEMPERATURE: 0 °C ~ 45 °C illustrate:
The single board is equipped with a 10G SFP+ optical module with a distance of 10km on S7703, S7706 and S7712 equipment with an operating temperature of 0°C to 42°C. |
