Product Details:
|
| Model No: | H901XGSF | Port: | 16 |
|---|---|---|---|
| Forwarding Capability: | 80 Gbit/s | Rate Mode: | Asymmetric Rate |
| Maximum Distance Difference Between Two ONUS Under The Same Pon Port: | 40km | Dimensions (W X D X H): | 23.30 Mm * 257.90 Mm * 399.20 Mm |
| Power Consumption: | Static: 42 W; Maximum: 83 W | Warranty: | 1 Year |
| High Light: | H901XGSF OLT interface board,Asymmetric rate OLT interface board,HuaWei H901XGSF |
||

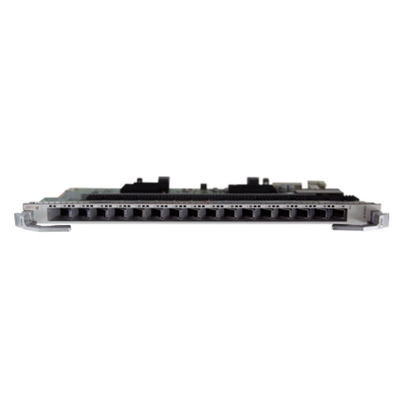

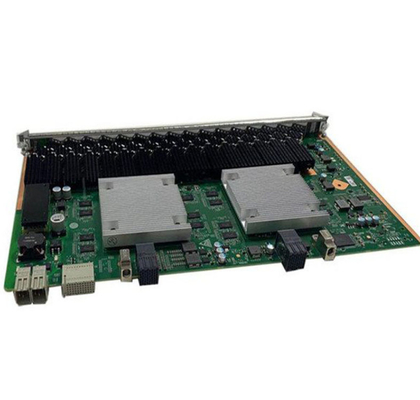

HuaWei H901XGSF MA5800 series 16-port XG-GPON interface board XGSF with XG-PON N1/N2a optical module
| Item | H901XGSF |
| Service ports | |
| Port | 16 |
| Forwarding capability | 80 Gbit/s |
| Rate mode | Asymmetric rate |
| T-CONTs per PON port | 2048 |
| Service flows per PON board | 16368 |
| Maximum frame size | 2052 bytes |
| Maximum number of MAC addresses | 16384 |
| Maximum distance difference between two ONUS under the same pon port | 40km |
| FEC | Bidirection |
| CAR group | Supported |
| HQoS | Not supported |
| Variable-length OMCI | Supported |
| ONU-based shaping or queue-based shaping | Supported |
| Type B protection(dual-homing) | Supported |
| Type B protection(single-homing) | Not supported |
| 1588v2 | Not supported |
| Rogue ONT detection and isolation | Supported |
| Automatic shutdown at high temperature | Supported |
| Energy saving for service boards | Supported |
| D-CCAP | Not supported |
| GPON SFP Module Specification | |
| Type | N1 Module: One-fiber bi-directional optical module, N1
N2a Module:One-fiber bidirectional optical module, N2a |
| Operating Wavelength | N1/N2a Module:
Tx: 1577nm Rx: 1270nm |
| Encapsulation Type | SFP+ |
| Port Rate | N1/N2a Module:
Tx: 9.953 Gbit/s Rx: 2.488 Gbit/s |
| Minimun Output Optical Power | N1 Module: 2 dBm
N2a Module: 4 dBm |
| Maximum Output Optical Power | N1 Module: 6 dBm
N2a Module: 8 dBm |
| Maximum Receiver Sensitivity | N1 Module: -27.5 dBm
N2a Module: -29.5 dBm |
| Optical Connector Type | SC |
| Optical Fiber Type | Single-mode |
| Overload Optical Power | N1 Module: -7 dBm
N2a Module: -9 dBm |
| Extinction Ratio | N1/N2a Module: 8.2 dB |
| Dimensions (W x D x H) | 23.30 mm * 257.90 mm * 399.20 mm |
| Power Consumption | Static: 42 W; Maximum: 83 W |
| Operating temperature | -40°C to +65°C |
