Product Details:
|
| Brand: | HuaWei | Product Name: | LS-S5328C-EI-24S |
|---|---|---|---|
| Fixed Port: | 20*100/1000Base-X, 4*GE Combo | Extended Slot: | Two Extended Slots |
| Maximum Voltage Range: | 90 V To 264 V AC, 50/60 Hz | Dimensions (mm): | 442 (W) X 420 (D)x 43.6 (H) |
| Typical Power Consumption: | <63W | Warranty: | 1 Year |
| High Light: | LS-S5328C-EI-24S 10 gigabit switch,HuaWei LS-S5328C-EI-24S,Three Layer 10 gigabit switch |
||

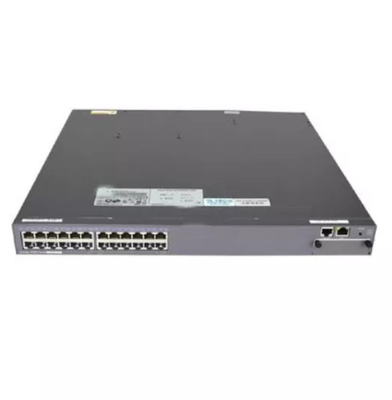

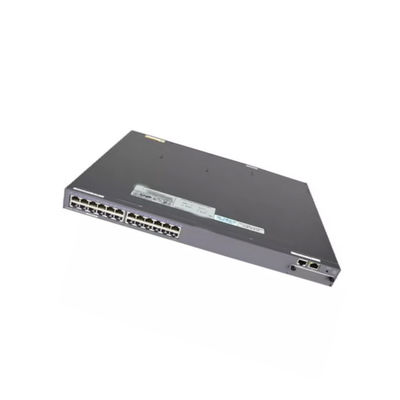

HuaWei LS-S5328C-EI-24S 24-port gigabit core three-layer network management scalable 10-gigabit switch
Overview
The S5300-EI series gigabit enterprise switches (S5300-EI) are next-generation energy-saving switches. to meet the demand for high-bandwidth access and Ethernet multi-service aggreation, provides a large switching capacity and high-density GE ports to implenment 10 Gbit/s upstream transmissions.The S5300-EI is easy to install and maintian, reducing workloads for network planning, construction, and maintenance.
Features
* HW S5328C-EI-24S switch with 20-ports FE/GE SFP, 4-ports GE combo
* With 2 power slots, without power module
* With 2 extension slots
* Layer 3 Ethernet switch
* Forwarding performance: 96Mpps
* 32K MAC address entries
Tech Specs
| Item | Description |
| Fixed port | 20*100/1000Base-X, 4*GE Combo |
| Extended slot | Two extended slots |
| MAC address table | IEEE 802.1d compliance |
| 32K MAC | |
| MAC address learning and aging | |
| Static, dynamic, and blackhole MAC address entries | |
| Packet filtering based on source MAC addresses | |
| VLAN | 4K VLANs |
| Guest VLAN and voice VLAN | |
| VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports | |
| 1:1 and N:1 VLAN mapping | |
| Ring protection | RRPP ring topology and RRPP multi-instance |
| Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover | |
| Smart Ethernet Protection (SEP),G.8032 Ethernet Ring Protection Switching (ERPS) | |
| STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) | |
| BPDU protection, root protection, and loop protection; BPDU tunnel | |
| E-Trunk | |
| IP routing | Static routing, OSPF, OSPF v3, IS-IS, IS-ISv6, BGP, BGP 4+, and ECMP |
| IPv6 features | Neighbor Discovery (ND) |
| Path maximum transmission unit (PMTU) | |
| IPv6 Ping, IPv6 Tracert, and IPv6 Telnet | |
| 6 to4 tunnel, ISATAP tunnel, and manually configur ed tunnel | |
| ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or protocol types | |
| Multicast Listener Discovery (MLD) v1/v2 snooping | |
| Multicast forwarding | IGMP v1/v2/v3 snooping and IGMP fast leave |
| Multicast forwarding in a VLAN and multicast replication between VLANs | |
| Multicast load balancing among member ports of a trunk | |
| Controllable multicast | |
| Port-based multicast traffic statistics | |
| IGMP v1/v2/v3, PIM-SM, PIM-DM, and PIM-SSM | |
| MSDP | |
| QoS/ACL | Rate limiting on packets sent and received by an interface |
| Packet redirection | |
| Port-based traffic policing and two-rate three-color CAR | |
| Eight queues on each port | |
| WRR, DRR, PQ, WRR+PQ, and DRR+PQ queue scheduling algorithms | |
| Re-marking of the 802.1p priority and DSCP priority | |
| Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number,protocol type, and VLAN I |
|
| Rate limiting in each queue and traffic shaping on ports | |
| Security features |
User privilege management and password protection |
| DoS attack defense, ARP attack defense, and ICMP attack defense | |
| Binding of the IP address, MAC address, interface, and VLAN | |
| Port isolation, port security, and sticky MAC | |
| Blackhole MAC address entries | |
| Limit on the number of learned MAC addresses | |
| 802.1x authentication and limit on the number of users on an interface | |
| AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC | |
| SSH v2.0 | |
| Hypertext Transfer Protocol Secure (HTTPS) | |
| CPU defense, Blacklist and whitelist | |
| Reliability | RRPP ring topology and RRPP multi-instance |
| Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover | |
| SEP | |
| ERPS(G.8032 v2) | |
| STP(IEEE 802.1d), RSTP(IEEE 802.1w), and MSTP(IEEE 802.1s) | |
| BPDU protection, root protection, and loop protection | |
| E-Trunk | |
| Management and Maintenance |
iStack |
| MAC Forced Forwarding (MFF) | |
| Virtual cable test | |
| Port mirroring and RSPAN (remote port mirroring) | |
| Remote configuration and maintenance by using Telnet | |
| SNMP v1/v2c/v3 | |
| RMON | |
| Web NMS | |
| Easy Operation | |
| System logs and alarms of different levels | |
| GVRP, MUX VLAN | |
| sFlow | |
| Operating environment | Operating temperature: 0 O C–50 O C (long term); -5 O C–55 O C (short term) Relative humidity: 10%–90% (non-condensing) |
| Input voltage | AC: Rated voltage range: 100 V to 240 V AC, 50/60 Hz Maximum voltage range: 90 V to 264 V AC, 50/60 Hz DC: Rated voltage range: –48 V to –60 V, DC Maximum voltage range: –36 V to –72 V, DC |
| Dimensions (mm) | 442 (W) x 420 (D)x 43.6 (H) |
| Typical power consumption |
<63W |
FAQ
Q: what aobut the quality ?
A:100% original with new package. we will test each item before posted to make sure each item with good quality.
Q: how many months for guarantee ?
A: 12 months quality guarantee
Q: How to deal with any inferior -quality goods ?
A: Goods can be post by with our charge of post fee for any bad quality products within guarantee time.
