Product Details:
|
| Product Name: | LS-S5324TP-SI-AC | Product Type: | Operational-level Access Switches |
|---|---|---|---|
| The Application Level: | Three Floors | Port Description: | 24 10/100/1000Base-TX Ports, 4 100/1000 Base-X Combo Ports |
| The Port Structure: | Non-modular | The Supply Voltage: | AC 100-240V DC -48--60V |
| Product Size: | 442×220×43.6mm | Warranty: | 1 Year |
| High Light: | LS-S5324TP-SI-AC,Full Gigabit L3 managed network switch,LS-S5324TP-SI-AC managed network switch |
||

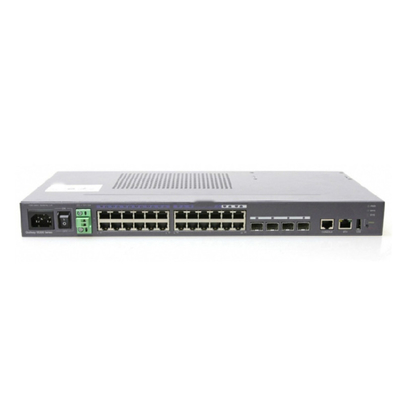

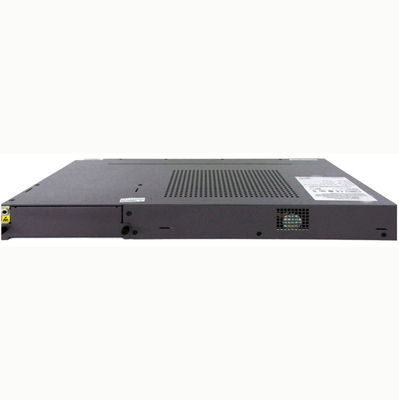

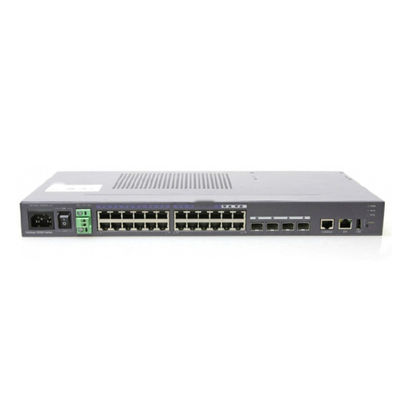

HuaWei LS-S5324TP-SI-AC 24-port full Gigabit Layer 3 network manageable switch
Overviews
HuaWei LS-S5324TP-SI-AC supports limiting the rate at which the port receives and sends messages, supports message redirection, supports port-based traffic monitoring, supports dual-speed three-color CAR function, and supports 8 queues per port. Support WRR, DRR, SP, WRR and SP, DRR+SP queue scheduling algorithm, support WRED (S5306 and S53HI support), support 802.1p and DSCP priority remarking of packets, support L2 (Layer 2)-L4 (Layer 4) Packet filtering function, providing illegal frame filtering function based on source MAC address, destination MAC address, source IP address, destination IP address, port, protocol, VLAN, and supporting queue-based rate limiting and port shaping functions.
Specifications
| The main parameter | |
| Product type | Operational-level access switches |
|---|---|
| The application level | Three floors |
| The transfer rate | 10/100/1000Mbps |
| The method of exchange | Store-forward |
| Backplane bandwidth | 48Gbps |
| Package forwarding rate | 36Mpps |
| MAC address table | 16K |
| Port parameters | |
| The port structure | Non-modular |
|---|---|
| The number of ports | 28 |
| Port description | 24 10/100/1000Base-TX ports, 4 100/1000 Base-X Combo ports |
| The extension | 1 stack expansion slot |
| Transfer mode | Full duplex/half duplex adaptive |
| Features | |
| Stacking | Stackable |
|---|---|
| VLAN | Support for 4K VLANs Guest VLAN, Voice VLAN support for MAC/Protocol/IP subnet/policy/port VLAN support 1:1 and N:1 VLAN switching support for basic, flexible QinQ functionality |
| QOS | Supports limiting the rate at which messages are received and sent support messages Support for message redirection Supports port-based traffic governance and supports two-speed tricolor CAR support for 8 queues per port Supports WRR, DRR, SP, WRR,SP, DRR-SP queue scheduling algorithms Support for WRED (S5306 and S53HI support) Support for messages 802.1p and DSCP priority relabeling Supports L2 (Layer 2)-L4 (Layer 4) package filtering, providing illegal frame filtering based on source MAC address, destination MAC address, source IP address, destination IP address, port, protocol, VLAN Supports queue-based speed limiting and port shaping |
| Multicast management | Support for IGMP Snooping and Fast Departure Mechanism Supports multicast VLAN support MLD Snooping Supports IGMP Proxy supports controlled multicast port-based multicast traffic statistics |
| Network management | Smart stacking supports MAC address enforcement forwarding Support for virtual cable detection Support for local port mirroring and remote port mirroring (RSPAN) for Ethernet OAM, and observation of normal port forwarding messages Supports Telnet remote configuration and maintenance supportSNMPv1/v2/v3 Support for RMON support for network management systems, support for WEB network management features Support for cluster management HGMP Support system logs, Hierarchical Alert Support For PowerOut Alert Dying Gasp Feature Supports Power Loss Alarm Dying Gasp Feature Supports HTTPS |
| Other parameters | |
| The supply voltage | AC 100-240V DC -48--60V |
|---|---|
| Power supply power | 300 |
| Product size | 442×220×43.6mm |
| Environmental standards | Perating temperature: 0-50c Operating humidity: 10%-90% Storage temperature: -5-55 degrees c Storage humidity: 10%-90% |
