Overviews

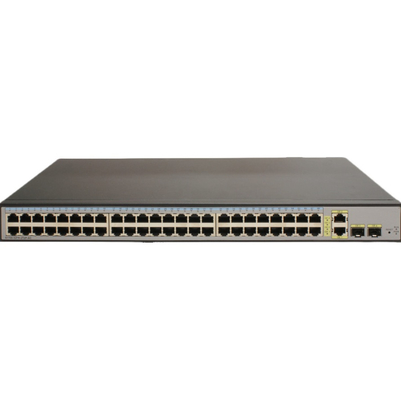

HW S1700-52FR-2T2P-AC is a new generation of green energy-saving Ethernet access switch. Provides simple and convenient installation and maintenance methods and rich business features to help users build safe and reliable high-performance networks, which can be widely used in Ethernet access scenarios such as small and medium-sized enterprises, Internet cafes, hotels, and schools.
Specifications
| The basic parameters | |
|---|---|
| Product model |
S1700-52FR-2T2P-AC
|
| The type of product |
Enterprise-class
|
| The application level |
2nd floor
|
| Back plate bandwidth |
17.6Gbps
|
| Package forwarding rate |
13.2Mpps
|
| How to transfer |
Store and forward
|
| Hardware parameters | |
|---|---|
| The type of interface |
48 10/100 adaptive Ethernet outlets, 2 GE RJ45 and 2 GE SFPs
|
| The number of interfaces |
52 mouths
|
| The transfer rate |
10M/100Mbps
|
| The port structure |
Non-modular
|
| Networks and software | |
|---|---|
| QoS support |
QoS support
|
| Network standards |
IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3z,ANSI/IEEE802.3 Nway,IEEE802.3x,IEEE802.3az
|
| VLAN support |
VLAN support
|
| MAC address table |
8K
|
| The network management function |
Support for network management functions, WEB network management
|
| Other parameters | |
|---|---|
| The supply voltage |
100-240V AC,50/60Hz
|
| Maximum power |
<35W
|
| Form factor |
442×220×43.6mm
|
| Other |
Cooling mode: no fan,
natural cooling Operating temperature: 0-45 degrees C Operating humidity: 10-90% (non-condensation) Storage humidity: 10-90% (non-condensation) |
