Product Details:
|
| Key Feature: | -40~+85 Degreee Celsius | Operating Wavelength:: | 1310nm,1510nm |
|---|---|---|---|
| Connector Type: | LC-LC | Product Name: | Fiber Optic Adapter |
| High Light: | 1310nm Fiber Optic Adapters,LC LC simplex coupler,LC LC Fiber Optic Flange |
||

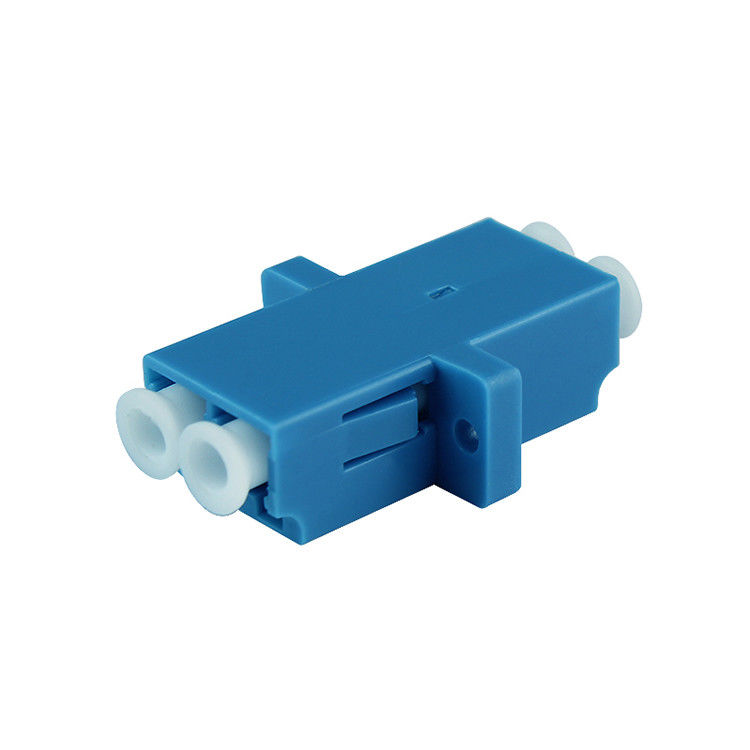

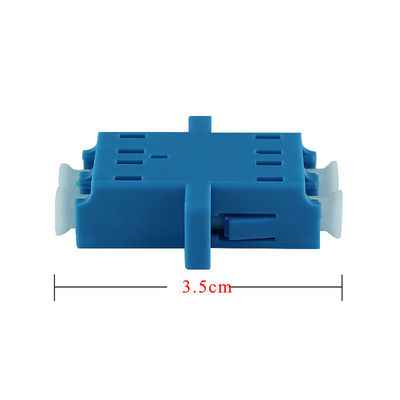

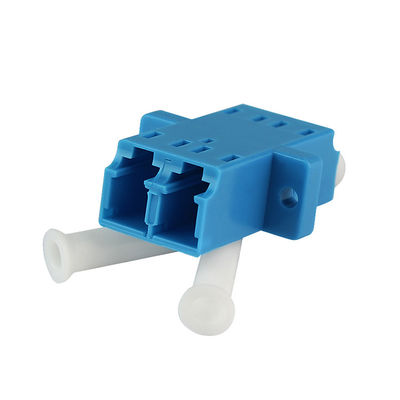

LC-LC coupler fiber optic flange simplex optical adapter flange connector
1. Features:
1 Low insertion loss
2 Good exchangeability and repeatability
3 Zirconia or phosphor-bronze sleeve
4 Simplex or duplex
5 Flange mount style
2. Appications:
1 Telecommunication
2 Computer networks
3 CATV networks
4 Active device termination
5 Instrumentation
3. Specifications:
| Insertion Loss | ≤0.2dB |
| Durability(500mating) | 0.2dB Max increase |
| Withdrawal Force(g/f) | 100~300 |
| Operating Temperature | -40~+85 |
degreee celsiusCompliant withUL and RoHSCompliant withrespective IEC standardCompliant withbellcore GR-326
