Product Details:
|
| Product Name: | MPWD/MPWC | Brand: | HuaWei |
|---|---|---|---|
| Type: | OLT GPON Board | Application: | FTTH System |
| Fiber Type: | FTTH | Selling Units: | Single Item |
| Single Package Size : | 65X5X20 Cm | Single Gross Weight: | 2.000 Kg |
| High Light: | DC Huawei MA5608T,MA5608T OLT Optical Line Terminal,huawei h801mpwd |
||

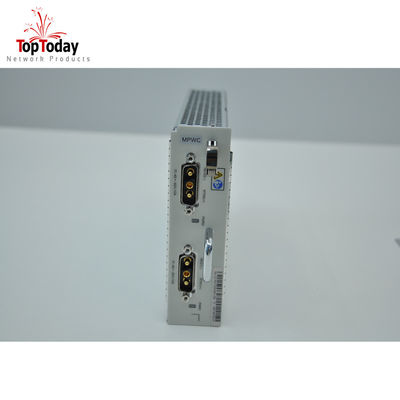

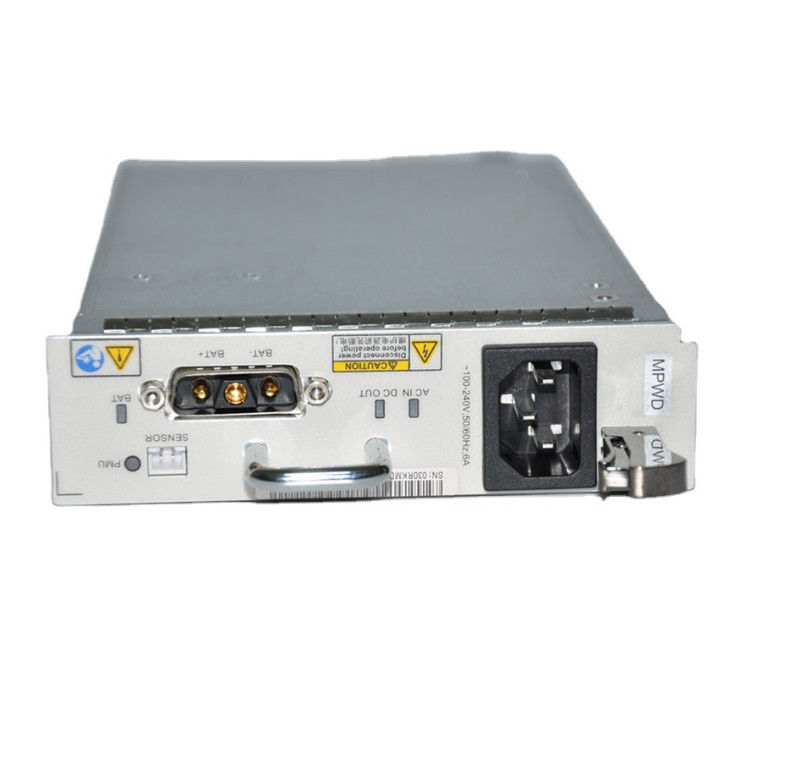

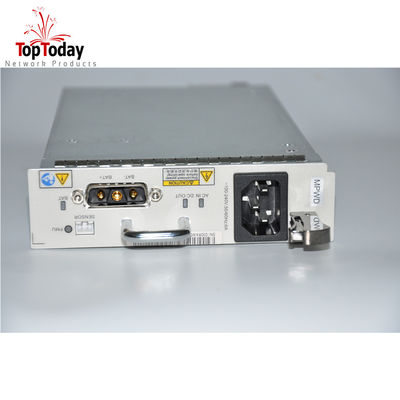

MPWD HuaWei H801MPWD MPWC AC DC power supply board for MA5608T OLT
Descriptions
The HW OLT H801MPWD board is an AC power board, consisting of an AC power unit and a monitoring unit. The board supplies power to the device and supports the lead-acid battery for power backup. The AC power unit provides overcurrent protection, output overvoltage protection, short circuit protection, and over-temperature protection. The monitoring unit provides comprehensive management for the power system and storage battery, and also provides certain environment monitoring functions.
Huawei MA5608T is an OLT terminal designed for GPON networks. The housing has a height of 2U, it can be mounted in up to 2 service plates (GPON). With the MA5608T we can connect up to 4096 subscribers using 16 port boards. Together with OLT, we attach a DC power supply board (- 48 V DC) and 1 control / uplink MCUD01 type board with 4 SFP slots (1 Gb / s).
The composition of the set:
1x HUAWEI-H801MPWC (power board, DC -48 V);
1x HUAWEI-H80MCUD01 (control / uplink plate, 4x 1GE);
1x HUAWEI-MA5608T-CHASS (MA5608T housing);
1x HUAWEI-MA5608T-ACC (accessories);
1x HUAWEI-H80BZ1MABR01 (mini service shelf);
1x HUAWEI-H831FCBB0 (fan).
Features
Input AC voltage: -100 V to -240 V
Input AC frequency: 50 Hz to 60 Hz
Single-phase three-wire AC power input
Battery port, a 3V3 terminal socket, supporting DC input power
Lead-acid battery input, reverse polarity protection, and fuse protection
Output DC power voltage: -48 V (adjustable from -42 V to -57.6 V)
Rated output power: 400 W
Alarm monitoring
Enabling and disabling of the rectifier module; equalized and float charging for the rectifier module
Battery low voltage disconnection; charge and discharge management of storage batteries
Specifications
|
Brand |
HW |
|
Model |
MPWD |
|
Port & Function |
AC input port: |
|
Connected to the power socket and used for AC power input |
|
|
Battery input port: |
|
|
Connected through a 3V3 connector and used for battery input |
|
|
Port for battery temperature sensor: |
|
|
Connected to the temperature sensor |
|
|
Connection |
Cable requirements: low-smoke halogen-free; brown for L wire; blue for N wire; yellow green for PE wire |
|
Power Consumption |
Static: 2 W |
|
Maximum transfer efficiency: 93%(220 V, 100% load, 25°C) |
|
|
Dimensions (mm) |
35.56 mm x 251.70 mm x 132.10 mm |
