Product Details:
|

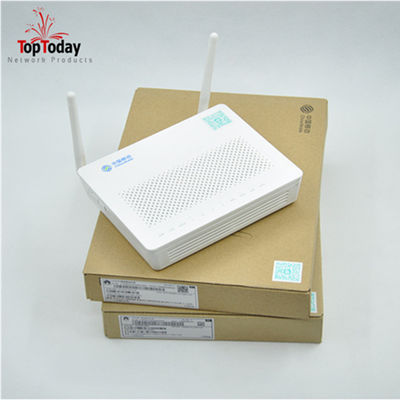

| Product Name: | HS8545M | Color: | White |
|---|---|---|---|
| Power Adapte: | UK, US, EU, AU Etc | XPON: | GPON |
| Selling Units: | Single Item | Single Package Size : | 35X5X15 Cm |
| Single Gross Weight: | 0.500 Kg | Package Type: | New In The Huawei Box |
| High Light: | HG8546M GPON ONT ONU,HS8545M GPON ONT ONU,1GE GPON ONT ONU |
||
| Technical items | Descriptions |
| Fiber port |
1 GPON interface, 1GE+3FE+1POT+USB+WIFI,SC single-mode, or 1 GPON interface, 4FE+1POT+USB+WIFI,SC single-mode, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps |
| Wavelength | Tx 1310nm, Rx 1490nm |
| Fiber interface | SC/UPC |
| RX sensitivity | <-27dBm (1490nm) |
| WLAN | IEEE802.11b/g/n,2*2 MIMO, 2*External antenna,WPS,WiFi Multi Media |
| LAN | 1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface |
| Throughput | Downstream 950Mbps,Upstream 930Mbps |
| ONT Detection and Isolation of Active/Passive Hooligans | YES |
| DC power | Adapter input: 100-240 V AC, 50 - 60 Hz ; Adapter output: 11 – 14 V DC, 1 A |
| Button | Reset, power |
| Power | ≤8W |
| Operation | Working temperature: -0-+40℃ working humidity:5-95%(non-condensation) |
| Dimension | 180*140*30mm(length*width*height) |
| Net weight | ≤0.8Kg |
