Product Details:
|
| MIKROTIK: | Cloud Core Router 12x SFP, 1x SFP+ 10Gbit RouterOS L6 | Cloud Router: | 2GB RAM, LCD Panel |
|---|---|---|---|
| RouterOS V6: | A Touchscreen LCD And A USB Port | CCR1016: | CCR1016 Is An Industrial Grade Router |
| 1U: | 1U - SFP - SFP+ - | CCR1016-12S-1S+: | 1U Rackmount, 12xSFP Cage, 1xSFP+ Cage, 16 Cores X 1.2GHz |
| MIKROTIK Router: | Dual Power Supplies, RouterOS L6 | Gigabit Router: | Mikrotik Gigabit Ethernet Ports Router CCR1016-12S-1S+ |
| Wired Router: | MikroTik MT CCR1016-12S-1S+ CCR1016-12S-1S+ Wired Router | Selling Units: | Single Item |
| Single Package Size : | 48X29X6 Cm | Single Gross Weight: | 3.000 Kg |
| High Light: | CCR1016 Cloud Core Router,CCR1016 Router,SFP10G bit Router |
||

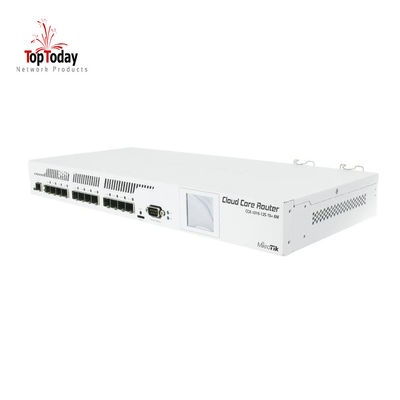

MIKROTIK CCR1016-12S-1S+ Router 12x SFP, 1x SFP+ 10Gbit RouterOS L6 outdoor Networking Access Point
CCR1016 is an industrial grade router with a cutting edge 16 core Tilera CPU. If you need many millions of packets per second - Cloud Core Router is your best choice.
This model has twelve SFP ports and one SFP+ port for 10G connectivity. It is available in a 1U rackmount case and also has a serial console port, a touchscreen LCD and a USB port.
The CCR1016-12S-1S+ comes with redundant power supplies and one RJ45 SFP 10/100/1000M copper module.
| Details | |
|---|---|
| Product code | CCR1016-12S-1S+ |
| Architecture | TILE |
| CPU | TLR4-01680 |
| CPU core count | 16 |
| CPU nominal frequency | 1.2 GHz |
| License level | 6 |
| Operating System | RouterOS |
| Size of RAM | 2 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| Tested ambient temperature | -20°C to 60°C |
| Suggested price | $745.00 |
| Details | |
|---|---|
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Max power consumption | 47.5 W |
| Max power consumption without attachments | 34 W |
| Details | |
|---|---|
| SFP DDMI | Yes |
| SFP ports | 12 |
| SFP+ ports | 1 |
| Details | |
|---|---|
| Memory card type | microSD |
| Memory Cards | 1 |
| Serial port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Mode button | Yes |
