40000 Gigabit fiber optic Poe Switch 4 Port HuaWei S5730-68C-PWR-SI-AC

40000 Gigabit fiber optic Poe Switch 4 Port HuaWei S5730-68C-PWR-SI-AC
40000 Gigabit fiber optic Poe Switch 4 Port HuaWei S5730-68C-PWR-SI-AC 40000 Gigabit fiber optic Poe Switch 4 Port HuaWei S5730-68C-PWR-SI-AC

Large Image :  40000 Gigabit fiber optic Poe Switch 4 Port HuaWei S5730-68C-PWR-SI-AC

Product Details:
Place of Origin: China
Brand Name: HuaWei
Model Number: S5730-68C-PWR-SI-AC
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Delivery Time: 3-5days
Payment Terms: Western Union, T/T
Supply Ability: 100

40000 Gigabit fiber optic Poe Switch 4 Port HuaWei S5730-68C-PWR-SI-AC

Description
Brand: HuaWei Product Name: S5730-68C-PWR-SI-AC
Switch Capacity: 680 Gbps Transmission Rate: 10/100/1000Mbps
Ports: 48 Forwarding Performance: 240 Mpps
PoE Supported: Supported Warranty: 1 Year
High Light:

40000 Gigabit fiber optic Poe Switch

,

40000 Gigabit Poe Switch 4 Port

,

S5730-68C-PWR-SI-AC

40000 Gigabit fiber optic Poe Switch 4 Port HuaWei S5730-68C-PWR-SI-AC



HuaWei S5730-68C-PWR-SI-AC 48 electric 40000 Gigabit optical three-layer POE power supply core switch



Description Of Fiber Optic Switch



S5730-68C-PWR-SI-AC is a HW S5730-68C-PWR-SI Bundle, providing 48 x Ethernet 10/100/1,000 ports, 4 x 10 Gig SFP+, PoE+, with 1 interface slot, and 500W AC power supply.



HW S5730-SI series switches are next-generation standard gigabit Layer 3 Ethernet switches that provide flexible full gigabit access and cost-effective fixed GE ports and 10 GE uplink ports, meanwhile can provide 40 GE uplink ports with an interface card. The S5730-SI was developed based on next-generation high-performing hardware and the HW Versatile Routing Platform (VRP). The S5730-SI supports simplified Operations and Maintenance (O&M), intelligent Stack (iStack), flexible Ethernet networking. It also provides enhanced Layer 3 features and mature IPv6 features. The S5730-SI can be used as an access or aggregation switch on a campus network or as an access switch in a data center.



Specification Of Fiber Optic Switch

Product Name
S5730-68C-PWR-SI-AC
Ports
48 PoE+ 10/100/1000BASE-T ports, 4 x 10 Gig SFP+
Slots
One interface slot
Power Supply
One 500W AC power supply equipped by default
Forwarding performance
240 Mpps
Switching capacity
680 Gbit/s
PoE Supported
PoE+ Supported
Dimensions (W x D x H)
442 mm x 420 mm x 44.4 mm



Overview of related optical switches



Product model
S5730-48C-SI-AC
S5730-48C-PWR-SI-AC
S5730-68C-SI-AC
S5730-68C-PWR-SI-AC
S5730-68C-PWR-SI
Switching Capacity
680 Gbit/s
680 Gbit/s
680 Gbit/s
680 Gbit/s
Forwarding Performance
240 Mpps
240 Mpps
240 Mpps
240 Mpps
Fixed Ports
24 x 10/100/1,000 Base-T, 8 x 10 Gigabit SFP+
24 x 10/100/1,000 Base-T, 8 x 10 Gigabit SFP+
48 x 10/100/1,000 Base-T, 4 x 10 Gigabit SFP+
48 x 10/100/1,000 Base-T, 4 x 10 Gigabit SFP+
Extended Slots
One extended slot that supports an interface card: 4 x 40 GE QSFP+ interface card
MAC Address Table
32K
MAC address learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
VLAN Features
4,094 VLANs
Guest VLAN, Voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN mapping
IP Routing
Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+, VRRP, and VRRP6
Interoperability
VLAN-Based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST)
Link-type Negotiation Protocol (LNP) (similar to DTP)
VLAN Central Management Protocol (VCMP) (similar to VTP)

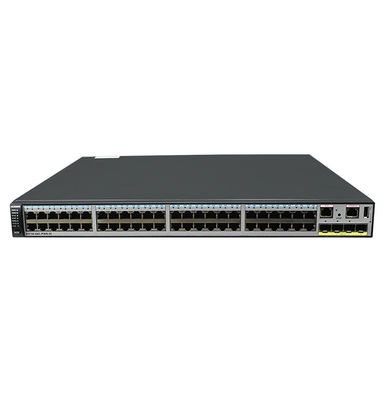

Product Image



40000 Gigabit fiber optic Poe Switch 4 Port HuaWei S5730-68C-PWR-SI-AC 040000 Gigabit fiber optic Poe Switch 4 Port HuaWei S5730-68C-PWR-SI-AC 1



Packaging and shipping



1. S5730-68C-PWR-SI-AC is Huawei original packaging. I guarantee that all products are new products in the box. After receiving the payment, I will transport S5730-68C-PWR-SI-AC via DHL, UPS, SF Express, TNT, EMS, etc.



2. If you have any requirements for S5730-68C-PWR-SI-AC, I will meet all your needs. When shipping the goods, I will use a large cardboard box to protect the goods. Therefore, I can provide the best quality, packaging, and fast shipping.



About our company



1. Our company mainly manufactures original Huawei. I also do ZTE, Mikrotik, UBNT, CISCO and other network equipment products. If you need any hardware network, I can check it as soon as possible.

2. Our company has been engaged in hardware network work for more than ten years and enjoys a high reputation at home and abroad. Our company cooperates with many companies.

3. We have enough inventory. If you need any product, I can ship it within 24 hours. I can also help you solve the problem within 24 hours.

4. The certified engineer will provide pre-sale advice and solve installation problems here.

5. I can provide 1 year warranty. We support 7 days for unexcused returns.
