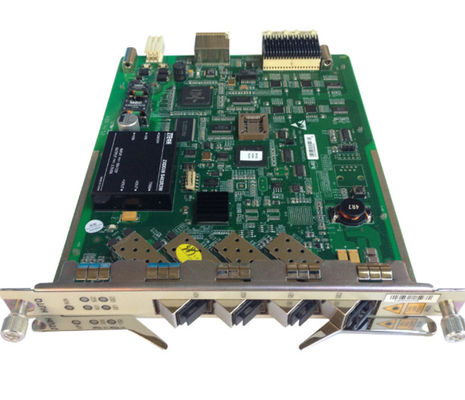

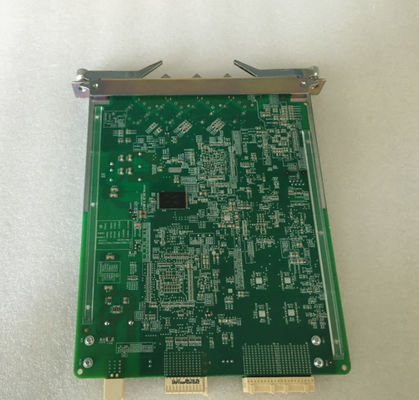

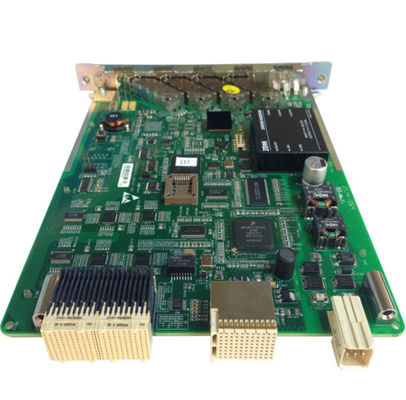

ZTE HUTQ HUVQ 10GE/GE Enthernet uplink board for C300 C320 OLT equipment
ZXA10 C300 is big OLT equipment with high density, high bandwidth and scalable office end equipment of passive optical access. It supports all kinds of FTTx application modes.
ZXA10 C300 is a convergent optical-access platform with large capacity and high density. Numerous access approaches are supported and the triple-play services can be realized. The customized scenarios are provided for various networks demands.
Description.
* Large capacity, large density and high performance
Satisfy the demands of evolution, deployment and flattening of networks. Provide series of scenarios with large splitter ratio and long distance.
* Smooth evolution and high protection of networks investment
Unified platform support the EPON/GPON/10G PON/NG PON2/P2P, satisfy the development of full services.
* Multi-Play service access platform
Excellent service performances and VLAN/ multicast/ QoS capability; support high bandwidth access of voice/ image/ video; satisfying the demands of network establishing in the time of fiber in and copper out
* Carrier-Class reliability
Support key board redundancy, end-to-end management and maintenance, hot swap and optical link supervisory, etc.
* Green and energy-effective:
Support multiple energy saving mode, lead-free. Every of process are green in product research, production and transportation.
ZTE ZXA10 C300 configuration:
* 2 SCXM control board; (SCXL For Option)
* 1 GPON or EPON 8 ports board with 8 Modules; (GTGH ETGH16Ports for Option)
* 2 GUFQ board(4SFP Slot), 2 uplink modules on each;(HUTQ( 10G Uplink) GUSQ(2SFP Slot & 2RJ 45 GE Ports) Board for Optioin)
* 2 PRWG power boards; (AC to DC Power Converter have to buy separate)
* 2 Power cables
* 1 RJ-45 first turn 9-pin RS-232 female network cable
* 1 RJ-45 Network cable
* 1 Earth Cable
