Product Details:
|
| Product Name: | RM2/RM5-Ti | Dimensions: | 160 X 80 X 44 Mm |
|---|---|---|---|
| Weight: | 350 G | Max. Power Consumption: | RM2-Ti：6.5 W/RM5-Ti：8W |
| Power Supply: | 48V, 0.5A PoE Adapter (Included) | Power Method: | Passive PoE (Pairs 4, 5+; 7, 8-) |
| Operating Temperature: | -30 To 75° C | Warranty: | 1 Year |
| High Light: | 0.5A High Power Wireless Bridge,RM2 High Power Wireless Bridge,Ubnt Rocket M5 |
||
RM2 RM5Ti 48V 0.5A High Power Wireless Bridge AP Ubnt Rocket M5 M2
UBNT RM2/RM5-Ti 48V/0.5A high-power wireless bridge wireless AP Rocket M2/M5 project WiFi coverage
UBNT Rocket M2 Titanium(RM2-Ti) Descriptions
The Ubnt Rocket M2 Titanium is a Ubiquiti product with Mimo technology and industrial design that supports true TCP/IP output speeds of 150 Mbps. Ideal for Point-to-Point (PtP) bridging or Point-to-MultiPoint (PtMP) airMAX applications. Rocket radios, airMAX antennas are designed to work seamlessly together.

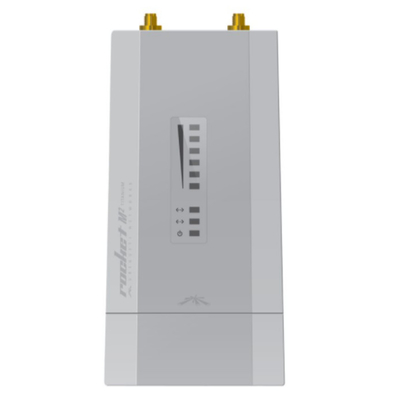

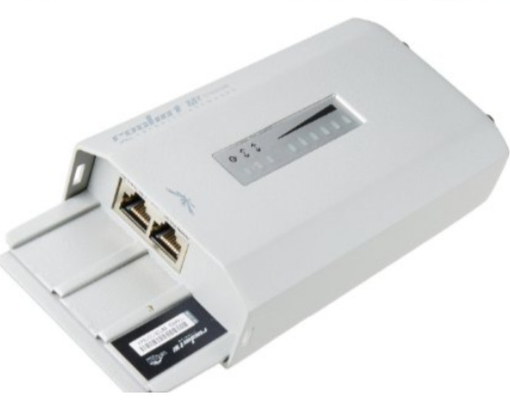

UBNT Rocket M2 Titanium(RM2-Ti) Hardware Overxiews
|
1. RP-SMA Antenna Connectors |
|---|
| Used to attach RF cables (not included). |
|
2. Signal LEDs |
|
In airOS®, you can modify the wireless signal strength threshold values for each LED on the Advanced tab under Signal LED Thresholds, or you can configure the LEDs to display the GPS connection quality instead (RM5-Ti only). The default values are shown below:
|
|
3. GPS LED |
| (RM5-Ti only) The GPS LED indicates airSync™ activity. Requires three or more satellite connections. |
|
4. Secondary Ethernet LED |
| The secondary Ethernet LED will light steady green when an active Ethernet connection is made to the Secondary Ethernet port and flash when there is activity. |
|
5. Main Ethernet LED |
| The main Ethernet LED will light steady green when an active Ethernet connection is made to the Main Ethernet port and flash when there is activity. |
|
6. Power LED |
| The Power LED will light green when the device is connected to a power source. |
|
7. Reset Button |
| To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the device is powered on. |
|
8. Main Port |
| The Gigabit Ethernet port is used to connect the power and should be connected to the LAN and DHCP server. |
|
9. Secondary Port |
| The 10/100 Ethernet port is used for bridging. |
|
10. GPS SMA Connector |
| (RM5-Ti only) Used to attach the GPS Antenna. |
UBNT Rocket M2 Titanium(RM2-Ti) Specifications
| RocketM Titanium | |
|
Dimensions |
160 x 80 x 44 mm |
|---|---|
|
Weight |
350 g |
|
Networking Interface |
(1) 10/100/1000 Ethernet Port (Main) (1) 10/100 Ethernet Port (Secondary) |
|
RF Connectors |
|
| RM2-Ti | 2 RP-SMA (Waterproof) |
| RM5-Ti | 2 RP-SMA (Waterproof), 1 SMA (GPS) |
|
Enclosure |
Die-Cast Aluminum |
|
Max. Power Consumption |
|
| RM2-Ti | 6.5 W |
| RM5-Ti | 8 W |
|
Power Supply |
48V, 0.5A PoE Adapter (Included) |
|
Power Method |
Passive PoE (Pairs 4, 5+; 7, 8-) |
|
Operating Temperature |
-30 to 75° C |
|
Operating Humidity |
5 to 95% Condensing |
|
ESD/EMP Protection |
30KV Contact / Air for Ethernet |
|
Shock and Vibrations |
ETSI300-019-1.4 |
|
Certifications |
CE, FCC, CCC |
| RM2-Ti Operating Frequency (MHz) | |
|
Worldwide |
2412 - 2462 MHz |
|---|---|
| RM5-Ti Operating Frequency (MHz) | ||||
|
Worldwide |
5150 - 5875 | |||
|---|---|---|---|---|
|
USA |
U-NII-1 |
5150 - 5250 | ||
|
U-NII-2A |
5250 - 5350 | |||
|
U-NII-2C |
5470 - 5725 | |||
|
U-NII-3 |
5725 - 5850 | |||
