Descriptions

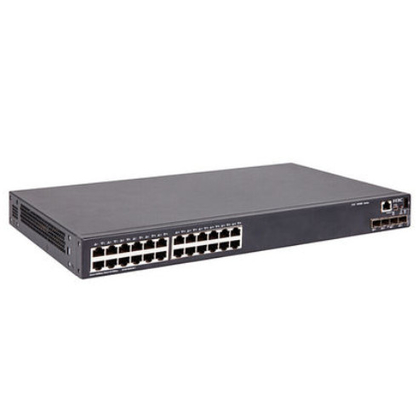

H3C S5560-EI is the latest development of Gigabit speed Layer 3 Ethernet switch. This powerful and highly secure series switch is built based on industry-leading high performance hardware architecture and H3C Comware V7 platform. It supports diversified services, high capacity GE access point as well as high density 10GE uplink, which meet the requirements for high density campus access and high performance aggregation.
Features
1. High scalability and high port density
2. High-performance IPv4/IPv6 service capabilities
3. Intelligent Resilient Framework 2 (IRF2)
4. Software Defined Network (SDN)
5. Multiple high availability measures
6. Abundant QoS policies
7. Professional Anti-lighting function
8. Enhanced PoE+ capability
9. Excellent manageability
Specifications
| Product number |
LS-S5560-30S-EI
|
|---|---|
| Packet forwarding rate |
216Mpps
|
| Transfer method |
Store-and-forward
|
| Interface Type |
24 10/100/1000Base-T adaptive Ethernet ports,
4 10G SFP+ ports,
2 40G QSFP+ ports
|
| Management port |
1 RJ-45 Console port, 1 Mini USB Console port (cannot work at the same time, Mini USB priority)
|
| Stacking support |
Stackable
|
| QoS support |
Support QoS
|
| VLAN support |
Support VLAN function
|
| Port aggregation |
Support port aggregation function
|
| Duplex transmission |
Support full duplex
|
| MAC address table |
64K
|
| PoE power supply |
Support PoE power supply
|
| voltage |
AC: Rated voltage range: 100V-240V AC, 50/60Hz/DC: Input rated voltage range: -36V to -72V DC
|
| Dimensions |
440×260 ×43.6mm
|
| Weight |
≤5Kg
|
| Other |
Relative humidity of working environment (non-condensing): 5%-95%
|
