Descriptions

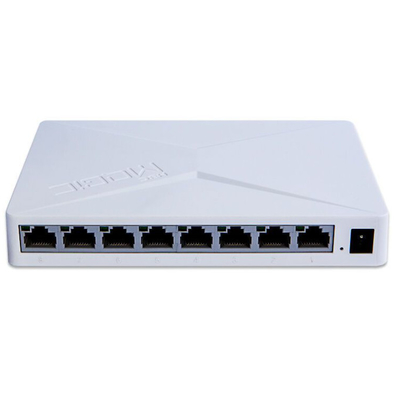

H3C Magic S2G is an eight-port Gigabit unmanaged desktop switch product independently developed by Hangzhou New H3C Technology Co., Ltd. It provides eight 10/100/1000M adaptive Ethernet ports that meet the IEEE802.3u standard, and all ports support full line speed. Non-blocking switching and port auto-flip function, the network is more flexible, and the use is more convenient.
Features
* Comply with IEEE802.3, IEEE802.3u, and IEEE802.3x standards.
* 8 10/100/1000M adaptive Ethernet ports.
* Each port supports Auto-MDI/MDIX function.
* Green Ethernet technology, when the port is not connected or connected with a short network cable, it automatically reduces power consumption and achieves the purpose of energy saving.
Specifications
| Project | Description |
| Overview | |
| Fixed interface | 8 10/100/1000Base-T (Auto MDI/MDIX) |
| The type of network line |
1000Base-T 3/4/8 twisted pair, supporting a maximum transmission distance of 100m |
| MAC ADDRESS CAPACITY | 4K |
| Package forwarding rate | 12Mpps |
| Swap capacity | 16Gbps |
| Power supply | DC 12V/0.5A |
| FORM FACTOR (W×D×H) | 158 mm x 105 mm x 27 mm |
| Weight | ≤0.2kg |
| Operating temperature | 0℃~40℃ |
| Store humidity | 5% TO 95% RH DOES NOT CONDENSE |
| Power consumption | <6W |
| The way the heat is dissipated | Natural cooling |
