HuaWei ETP4890 Embedded DC power supply Recitifer System ETP4890-A2 90A 48V dc power supply

HuaWei ETP4890 Embedded DC power supply Recitifer System ETP4890-A2 90A 48V dc power supply
HuaWei ETP4890 Embedded DC power supply Recitifer System ETP4890-A2 90A 48V dc power supply HuaWei ETP4890 Embedded DC power supply Recitifer System ETP4890-A2 90A 48V dc power supply

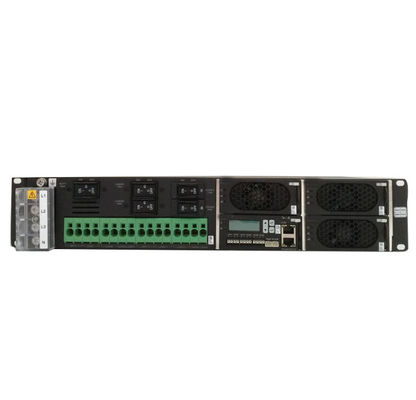

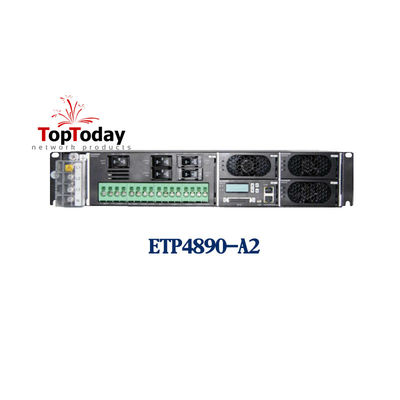

Large Image :  HuaWei ETP4890 Embedded DC power supply Recitifer System ETP4890-A2 90A 48V dc power supply

Product Details:
Place of Origin: Guangdong, China
Brand Name: HuaWei
Model Number: ETP4890-A2
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: new in the huawei box
Supply Ability: 50 Pack/Packs per Week

HuaWei ETP4890 Embedded DC power supply Recitifer System ETP4890-A2 90A 48V dc power supply

Description
Product Name: ETP4890-A2 Output Voltage:: 48V
Output Current: 90A Input: 220-240V
Output Power: >500W Input Voltage: 220-240V
AC Input Frequency: 45 Hz To 66 Hz Warranty: 1 Year
High Light:

ETP4890-A2

,

Embedded DC Power Supply

,

ETP4890-A2 Power Supply

HuaWei ETP4890 Embedded DC power supply Recitifer System ETP4890-A2 90A 48V dc power supply

Descriptions
This series of embedded power products includes 5 types of products: ETP4830, ETP4890, ETP48150, ETP48200 and ETP48400. They can provide wide range of DC output from 30A to 400A, and are very broad application in DC power system scenarios. The functional unit using a standardized installation structure design, power height ranging from 1U to 11U, compact design, support 19-inch rack or cabinet installation. The system can be adapted to a wide range of AC input voltage, with intelligent battery management, remote monitoring, etc.
Features
Support multiple interfaces, convenient remote centralized management.
Complete system management function, LCD visualization monitoring.
High rectifier efficiency over 96% helps to save energy, derated output above 55℃.
Support wide range of DC output from 30A to 400A.
Product name
ETP4890-A2
AC Input Mode
220V/380V three-phase, 220V single-phase, 110V dual live wire
AC Input Frequency
45 Hz to 66 Hz
Operating temperature
-40°C to 70°C
Integrated power
ETP4830
ETP4890
ETP48200
System
Dimension(W×D×H)
43.6mm(H) ×442mm(W) ×255mm(D)
86.1mm(H) ×442mm(W) ×255mm(D)
266.7mm(H)×482.6mm(W) ×310mm(D)

Weight
≤8kg (full configured)
≤10kg (full configured)
≤25Kg(without rectifiers)

Rated capacity
30A (2PSU)
45/90A (compatible with 15A and 30A rectifier) (3PSU)
200A(4PSU)

Cabling mode
Cable outlet from the bottom of the cabinet

Protection level
IP20

AC Distribution
Input
220V single phase/110V dual live wire
380V three phase/220V single phase/110V dual live wire

Input voltage
85~300VAC, rated: 220VAC

Input frequency
45~66Hz, rated: 50Hz/60Hz
DC Distribution
Output voltage
42~58V DC, default value: 53.5V DC

Maximum output power
2000W
4800W
12000W
Battery branch
1x20A fuse
1×80A MCB
2x125A MCB
BLVD
2x20A fuse
1×10A MCB, 1×32A MCB, 2×40A MCB
1x63A MCB, 1x32A MCB, 3x16A MCB
LLVD
N/A
N/A
ETP48200-A6: 2x100A MCB ETP48200-B6: 2x100A MCB, 1x20A MCB
Rectifier
Efficiency
Up to 96%
Up to 97%
Up to 97%

Features:

Intelligent monitoring, energy conservation and space-saving embedded power system
Supports a wide range of DC output from 120A to 400A
High rectifier efficiency up to 98% helps to save energy (derated output above 55°C)
Rectifier with MTBF > 500,000h helps to save OPEX
E-label function, achieving assets management of the whole site, easy for management of assets and location of quality issues
Battery anti-reversed connection function, avoids the possibility of equipment loss and personal accidents
Complete system management function, LCD visualization monitoring
Supporting multiple interfaces, convenient remote centrali

HuaWei ETP4890 Embedded DC power supply Recitifer System ETP4890-A2 90A 48V dc power supply 0



Transport mode: DHL UPS EXPRESS SEA
Payment term:  T/T, WESTERN UNION
HuaWei ETP4890 Embedded DC power supply Recitifer System ETP4890-A2 90A 48V dc power supply 1
1. what's the way to pay?
We support T/T, WESTERN UNION,Paypal

2.What's your shipping way?
Shopped by air sea express
3.What is the product used for packing?
We always use catron, Unless you have different packing needs
