Emerson HD48100-2 HD48100-5 DC high-power communication power module 48V 100A

Emerson HD48100-2 HD48100-5 DC high-power communication power module 48V 100A
Emerson HD48100-2 HD48100-5 DC high-power communication power module 48V 100A Emerson HD48100-2 HD48100-5 DC high-power communication power module 48V 100A Emerson HD48100-2 HD48100-5 DC high-power communication power module 48V 100A

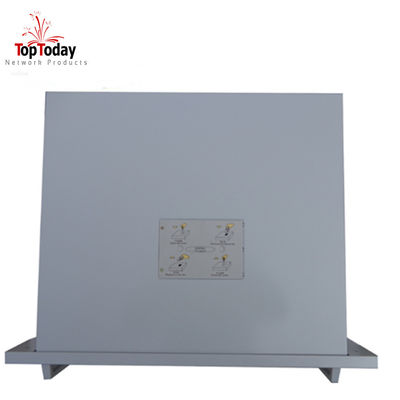

Large Image :  Emerson HD48100-2 HD48100-5 DC high-power communication power module 48V 100A

Product Details:
Place of Origin: Guangdong, China
Brand Name: Emerson
Model Number: HD48100-2 HD48100-5
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable

Emerson HD48100-2 HD48100-5 DC high-power communication power module 48V 100A

Description
Output Power: >500W Output Type: Single
Input Voltage: 48V Product Name: HD48100-2 HD48100-5
Selling Units: Single Item Single Package Size : 95X45X15 Cm
Single Gross Weight: 13.000 Kg Package Type: New In The Box.
High Light:

EMERSON rectifier modules

,

HD48100-2

,

HD48100-5









Emerson HD48100-2 HD48100-5 DC high-power communication power module 48V 100A


Description
HD48100 adopts the development of new achievements of modern power electronic technology and industrial control technology, and its design fully considers the application and maintenance characteristics of modern communication power supply.Adopt soft switch technology, the efficiency reaches the world advanced level, adopt the highly reliable distributed control system, and built-in advanced microprocessor. High-reliability design, using IGBT module, high withstand voltage and current stress, stable operation, suitable for ** station with extremely high reliability requirements.

Features

Wide input voltage range (304-456V) The power grid is adaptable
3U height, 19 inches wide Standard width rack with large single rack capacity
Rate ≥ 92% Reduce equipment operating costs
Distributive monitoring Unattended
Low pressure differential autonomous average flow ≤ 3% High reliability, module average current performance is good
Special fan installation design Maintenance is quick and easy

Technical parameters

Input characteristics:
Input voltage: 304 to 456Vac, three-phase three-wire
Input grid frequency: 45 to 65Hz
Inoperable to withstand the large static line voltage: 500V, Long-term
Power Factor: ≥0.92
Efficiency: ≥92% (rated current).
Output characteristics:
Output DC voltage: -40 to 58V
Output power: 5800W
Output current: 0 to 106A
load adjustment rate: ≤± 0.4%
Grid adjustment rate: ≤± 0.1%.
Output current limit characteristics:
0% to 30% to 60% to 106% rated current three-stop adjustable
average flow: the use of low pressure differential autonomous average flow, average flow imbalance ≤±3%. Temperature coefficient (1/C): ≤±0.2


Noise indicator:
Peak-peak noise voltage: ≤200mV (0-20MHz)
telephone weight noise voltage: ≤ 1mV
Mechanical features:
Module size (high× wide × depth): 135mm×500mm×500mm
Weight: ≤26kg
fan: temperature-controlled three-stop speed control.
Cooling: Air-cooled
Acoustic noise: <50dB(A)
Ambient
conditions: operating temperature: -5 to 45 degrees C
Storage
temperature: -40 to
85 degrees C Relative humidity: ≤95% RH Altitude: ≤ 2000m
Emerson HD48100-2 HD48100-5 DC high-power communication power module 48V 100A 0
Emerson HD48100-2 HD48100-5 DC high-power communication power module 48V 100A 2
Emerson HD48100-2 HD48100-5 DC high-power communication power module 48V 100A 3
Transport mode: DHL UPS EXPRESS SEA
Payment term:  T/T, WESTERN UNION
Emerson HD48100-2 HD48100-5 DC high-power communication power module 48V 100A 4
1. what's the way to pay?
We support T/T, WESTERN UNION,Paypal

2.What's your shipping way?
Shopped by air sea express
3.What is the product used for packing?
We always use catron, Unless you have different packing needs
