Product Details:
|
| Product Name: | AR0MPSDP3500/PAC-350WB-L | Output Voltage: | 12V |
|---|---|---|---|
| Output Current: | 9.6A | Output Power: | 350W |
| Input Voltage: | Input Voltage: | Dimensions (w X D X H, Without Packaging) [mm: | 3 |
| Weight (without Packaging Materials) [kg: | 3 | Warranty: | 1 Year |
| High Light: | PAC 350WB L,HuaWei PAC 350WB L,AR0MPSDP3500 |
||

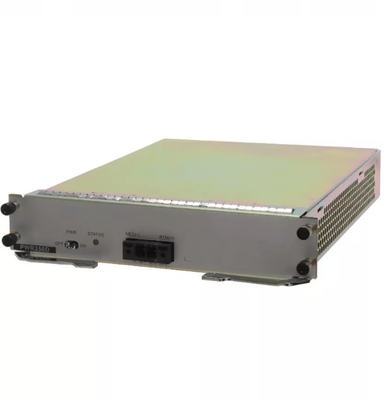

PAC 350WB L HuaWei AR Series Routing Power Supply AR0MPSDP3500
PAC-350WB-L HuaWei AR Series Routing Power Supply AR0MPSDP3500 (AR01PSDC35 350W DC Power Module)
Overview
AR0MPSDP3500 basic properties
|
Attribute |
Description |
|---|---|
|
Description |
AR Series-AR01PSDC35-350W DC power module |
|
Part number |
02310FGS |
|
Model |
AR0MPSDP3500 |
|
Products |
Product model |
Initial supported version |
End of support version |
Exceptions do not support versions |
|---|---|---|---|---|
|
AR6000 |
AR6280 |
V300R019C00 |
- |
- |
|
AR6000 |
AR6280J |
V300R021C00 |
- |
- |
|
AR6000 |
AR6280K |
V300R019C11 |
- |
- |
|
AR6000 |
AR6300 |
V300R019C00 |
- |
- |
|
AR6000 |
AR6300K |
V300R019C11 |
- |
- |
|

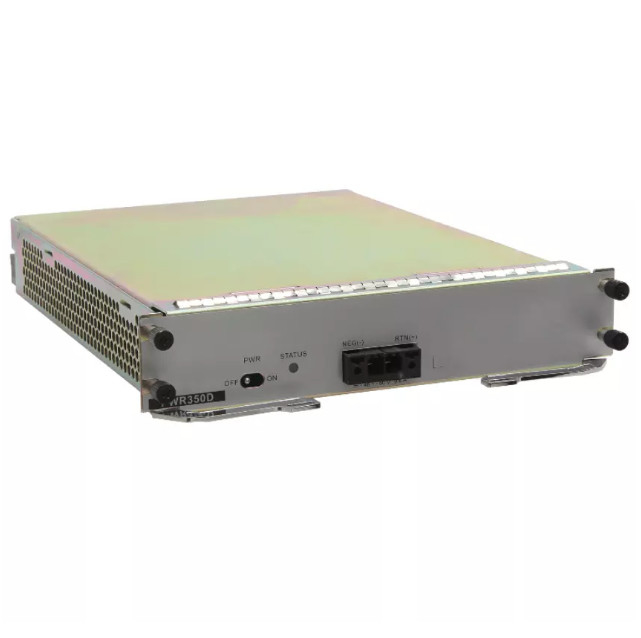

1. Wrench |
2. Power switch |
3. Ac power interface |
4. Dc power interface |
AR0MPSDP3500 LED description
|
Led silkscreen |
The name of the led |
Led color |
Led status |
Status description |
|---|---|---|---|---|
|
STATUS |
Power module led |
Green |
Solid on |
The output of the ac power module is normal. |
|
Red |
Solid on |
The output of the ac power module is abnormal, protected (can blink when hiccup protection). |
AR0MPSDP3500 button description
|
Button silkscreen printing |
Button name |
Description |
|---|---|---|
|
ON/OFF |
Power switch |
Turns the output of the power supply on or off. |
AR0MPSDP3500 interface description
|
The interface name |
Connector type |
Description |
Parts that can be used |
|---|---|---|---|
|
Dc power connector |
- |
Use a dc power cable to connect the device to an external power source. |
Dc power cable |
|
Functions and features |
Description |
|---|---|
|
Input undervoltage protection |
Power can be restored automatically. |
|
Input overvoltage protection |
Power can be restored automatically. |
|
Input overcurrent protection |
Power cannot be automatically restored. |
|
Output overvoltage protection |
Power cannot be automatically restored. |
|
Output current limit protection |
Power cannot be automatically restored. |
|
Output short-circuit protection |
Power can be restored automatically. |
|
Over-temperature protection |
When the temperature of the power module is higher than the set value, the power module will be in a protected state, stop powering the device, and automatically restore power after cooling. |
|
Project |
Description |
|---|---|
|
Dimensions (w x d x h, without packaging) [mm] |
201mm×253mm×40mm |
|
Weight (without packaging materials) [kg] |
1.5kg |
|
RATED INPUT VOLTAGE [V] |
-48V DC~-60V DC |
|
INPUT VOLTAGE RANGE [V] |
-38.4V DC~-72V DC |
|
MAXIMUM INPUT CURRENT [A] |
9.6A |
|
RATED OUTPUT VOLTAGE [V] |
12V DC |
|
RATED OUTPUT POWER [W] |
350W |
|
Power supply heat dissipation |
Wind cooling dissipates heat |
|
Hot-swappable |
Backing |
