Product Details:
|
| Product Name: | ZXDU68 B301 | Output Voltage: | 48DC |
|---|---|---|---|
| Output Current: | 300A | Maximum Output Power: | 18KW |
| Dimensions: | 622mm × 483 Mm × 360 Mm | Phase Voltage Range: | 85V ~ 295V |
| MTBF: | ≥ 3.2×105 H | Warranty: | 1 Year |
| High Light: | ZTE Communication Power Supply,ZXDU68 B301,48V DC Switching Power Supply |
||

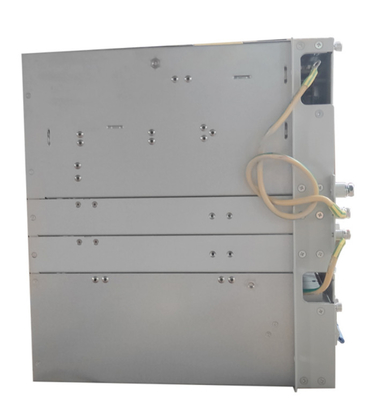

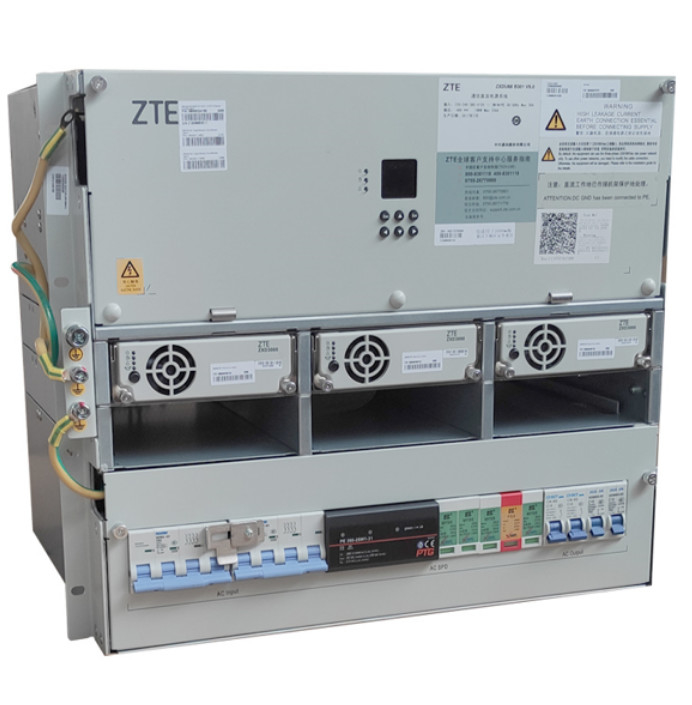

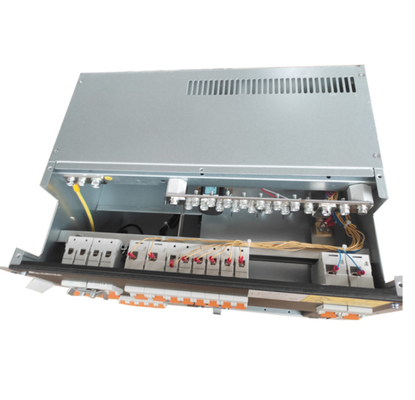

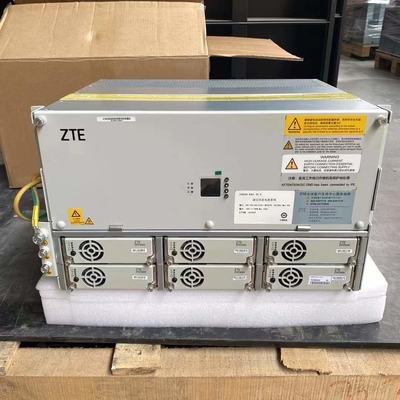

ZTE communication power supply ZXDU68 B301 V5.0 48V embedded communication DC switching power supply system
Descriptions
ZXDU68 B301 (V5.0R10M01) embedded power supply is a new generation -48V/300A communication power system designed by ZTE. ZXDU68 B301 (V5.0R10M01) adopts a 14U high design and supports standard 19-inch cabinet installation. System nominal output voltage: -48V, nominal output current: 300A.
Main features
1. The scenario where 4 tenants share a station can be realized;
2. The DC power and power consumption ratio of each tenant can be individually measured;
3. It can realize the time-sharing power-off function of multiple tenants;
4. The peak efficiency of the rectifier is as high as 96.3%;
5. The efficiency under rated load conditions is ≥95%;
6. Applicable to a wide single-phase voltage range of 85VAC～295VAC, with strong adaptability to the grid;
7. In the energy-saving mode, the monitoring unit automatically sleeps the redundant rectifiers or wakes up the sleeping rectifiers according to the change of load power. The power consumption of the rectifier in sleep mode is not more than 4W, which saves energy consumption;
8. Standard USB port, support U disk batch setting parameters, copy history records and upgrade procedures;
9. Flexible monitoring networking: Provide input/output dry contacts, RJ45 Ethernet interface, RS232 communication interface, RS485 communication interface, to meet Telnet, HTTP, FTP and SNMP networking requirements.
Technical parameter
| Product Model | ZXDU68 B301 (V5.0R10M01) |
| System capacity | Fully equipped with 6 ZXD3000 (V5.5) rectifiers, rated output power 18kW |
| System efficiency | Peak efficiency ≥95.5%; efficiency under rated load ≥94.5% |
| MTBF | ≥ 3.2×105 h |
| AC power distribution |
Input system: three-phase five-wire system (L1/L2/L3/N/PE) Input voltage range: rated phase voltage: 220V; phase voltage range: 85V ~ 295V Input frequency range: 45 Hz ~66 Hz Larger input current: 96A AC lightning protection: Class C AC input: two channels: 2×63A/4P MCB, manual mechanical interlock AC standby output: Nine channels: 5×16A＋4×10A circuit breaker |
| DC power distribution |
Output voltage: -53.5VDC (-42VDC~-58VDC is continuously adjustable through the monitoring unit) Stabilization accuracy: ≤0.5% DC lightning protection: The lightning protection flow is Imax=15kA (8/20μs) Battery input: four channels: 4×12** air switch DC load output (Tenant 1): LLVD1: 1×12**＋1×16A＋1×6A open BLVD: 1×2** air switch DC load output (Tenant 2): LLVD1: 1×12**＋1×16A＋1×6A open BLVD: 1×2** air switch DC load output (Tenant 3): LLVD1: 1×12**＋1×16A＋1×6A open BLVD: 1×2** air switch DC load output (Tenant 4): LLVD1: 1×63A air switch BLVD: 2×10A air switch |
| Working environment |
Operating temperature range: -40 ℃ ~ +75 ℃ (-40 ℃ ~ +55 ℃ full load output) Storage temperature range: -40 ℃ ~ +85 ℃ |
| Altitude load reduction characteristics | 0-2000 meters: ** rated power output; above 2000 meters: for every 100m increase in altitude, the system reduces the rated power by 1% |
| Structure | Dimensions: 14 U high/19 inches wide 622mm × 483 mm × 360 mm (height × width × depth) |
| Weight | Power plug box about 30kg (without rectifier) Down wiring, front maintenance |
Product Highlights
* The peak efficiency of the high-efficiency rectifier is as high as 96.3%;
* The efficiency under rated load conditions is ≥95%;
* Applicable to a wide voltage range from 85VAC to 295VAC, with strong grid adaptability;
* In the energy-saving mode, the monitoring unit automatically sleeps the redundant rectifier or
* wakes up the sleeping rectifier according to the change of load power. The power consumption of the rectifier in sleep is not more than 4W;
* Standard USB port, support U disk batch setting parameters, copy history and upgrade procedures;
* Flexible monitoring networking: Provide input/output dry contacts, RJ45 Ethernet interface, RS485
* Communication interface, meeting Telnet, HTTP, FTP and SNMP networking requirements.
