Product Details:
|
| Output Power: | 51 - 100W, >500W | Input Voltage: | 198~286V DC/220V, 220V |
|---|---|---|---|
| Output Voltage: | 198~286V DC/220V, 48v | Output Frequency: | >=94%, 50-60HZ |
| Output Current: | 10A | Product Name: | HD22010-2 |
| Warranty: | 1yesr | Selling Units: | Single Item |
| Single Package Size : | 65X25X15 Cm | Single Gross Weight: | 8.000 Kg |
| High Light: | HD22010-2 Rectifier Modules,HD22010-2,HD22010-2 Rectifier Converter |
||

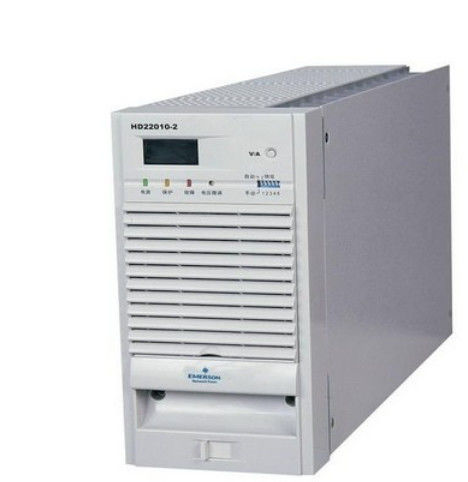

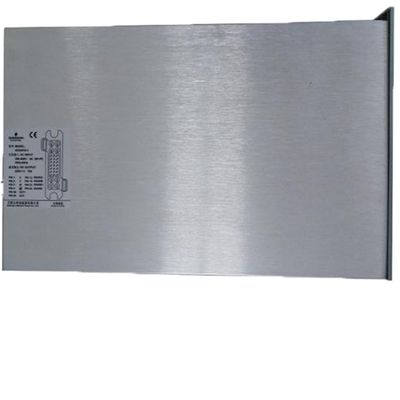

Emerson HD22010-2 Rectifier modules DC power Rectifier Converter 48V10A
Technical parameters
Brand: EMERSON Network Power
Type/MODEL: HD22010-3
AC INPUT/AC INPUT: 380-400 - v ~ 6 a 3 w + PE 45 hz - 65 hz
OUTPUT DC/DC OUTPUT: 220 v -- -- -- -- -- 10 a
HD22010-2 Block Diagram of Rectifier
The 3-phase AC current, via EMI filter, is input to the rectifying circuit, which rectifies the AC power into pulsating DC output. Through the passive power factor correction (PFC) circuit, the pulsating DC voltage is converted into constant DC voltage, which is then converted by the DC/AC HF inverter into HF AC voltage. Finally, the HF rectifying circuit converts the HF AC voltage into HF pulsating DC voltage to be output via HF EMI filter.
The pulse width of the DC/AC HF conversion circuit is modulated through the PWM circuit to regulate output voltage (including voltage stabilization and setting).
The operation of the rectifier is monitored by the local monitoring system, including protection of rectifier and voltage regulation. The local monitoring system also reports the operating data of the rectifier to the PCU and receives control commands from it.
The rectifier mainly converts AC power to DC power and may work in automatic mode (controlled by PCU) or manual mode (controlled manually). Four models are availabe to cover the needs of different users.
With many years of export experience, excellent quality, advanced services and competitive prices, it has won the trust and support of many customers. If you have any questions, please feel free to contact us, we will provide you with quality service.
