Product Details:
|
| Board: | Rectifier Module | Output Type: | >500W |
|---|---|---|---|
| Output Frequency: | 50/60HZ | Output Current: | 20A |
| Product Name: | HD22020-2 | Selling Units: | Single Item |
| Single Package Size : | 85X45X18 Cm | Single Gross Weight: | 16.000 Kg |
| High Light: | HD22020-2,Emerson Rectifier module,Emerson Rectifier Converter |
||

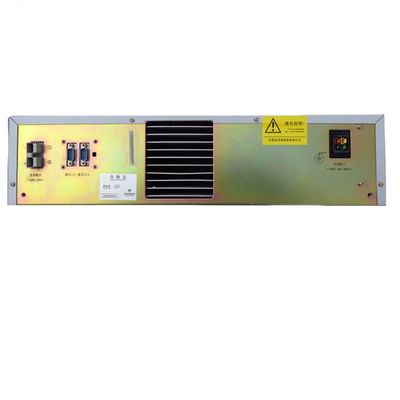

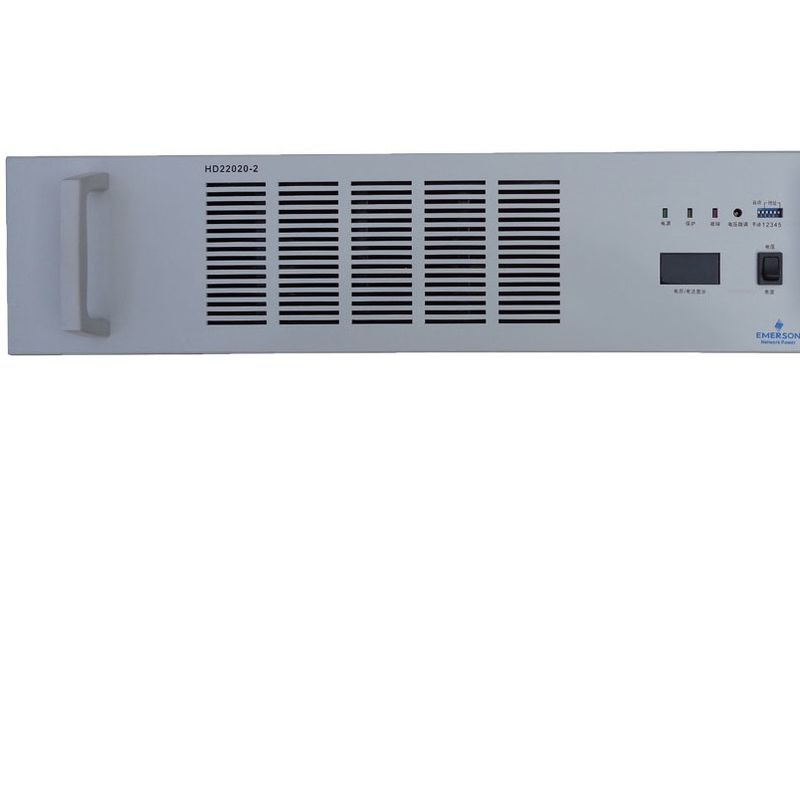

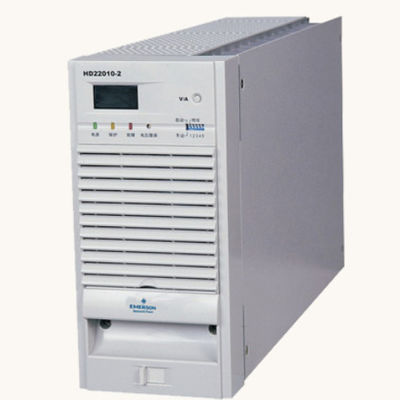

Emerson 500W HD22020-2 48V 20A Rectifier modules DC power Rectifier Converter
HD22020-2 rectifier descriptions
The HD22020-2 rectifier (EMERSON) outputs 20A current, and it is mainly applied in the large-sized substation and various power generation plants. See the following tables for the specifications of HD22020-2 rectifier.
HD22020-2 rectifier Input specifications
1. HD22020-2 rectifier Protection specifications
| Item | Specifications |
|
Protection of the input overvoltage
|
456 ± 5V, Recovery point: 430 - 450V
|
|
Protection of the input undervoltage
|
304 ± 5V, Recovery point: 310 - 330V
|
|
Protection of the output overvoltage
|
323 ± 3V, unrecoverable
|
|
Alarm for the output undervoltage
|
195V ± 3V
|
|
Phase failure protection
|
Any phase, recoverable
|
|
Overtemperature protection
|
85℃, recovery point: 80℃
|
2. HD22020-2 rectifier Monitoring interface
| Item | Specifications |
|
Remotely acquiring alarm/digital signal
|
AC input overvoltage/undervoltage, Phase failure, output overcurrent, rectifier overtemperature, output overvoltage/undervoltage
|
|
Remotely acquiring analog signal
|
Output voltage, output current
|
|
Remotely controling system state
|
Rectifier on/off, boost charging/float charging, output current limit (10% - 100%)
|
|
Remotely adjusting voltage analog signal
|
Output voltage 198-284V
|
3. HD22020-2 rectifier Insulation specifications
| Item | Specifications |
|
Insulation resistance
|
AC to chassis: ³ 10MW
|
|
DC to chassis: ³ 10MW
|
|
|
Dielectric strength
|
AC to ground: ³2KVAC, Leakage current: £30mA, Time: 1min, No flashover.
|
|
AC to DC: ³2KVAC, Leakage current: £30mA, Time: 1min, No flashover.
|
|
|
DC to ground: ³2KVAC, Leakage current: £30mA, Time: 1min, No flashover.
|
4. HD22020-2 rectifier Other specifications
| Item | Specifications |
|
Ambient temperature
|
-5 – 40℃
|
|
Relative humidity
|
£90% (25℃)
|
|
Acoustic noise
|
£55dB
|
|
Weight
|
29Kg
|
|
Volume
|
515´460´125mm3 (Width X Depth X Height)
|
Notes to usage
In the electrical characteristics, HD22020-2 rectifier is the same as the convection-cooling rectifier in the usage. But, it is a fan-cooling rectifier. In particular, please pay attention to the following items:
1. Thermal design of the rectifier
The rectifier is cooled through a fan. So, in the design, keep the vent duct from being obstructed by any other objects.
2. Dust-proof design
The fan in the rectifier shall be properly protected from dusts. The dust is the major factor affecting the service life of the fan.
HD22020-2 rectifier Output specifications
| Item | Specifications |
|
Output voltage range
|
198 - 286V Continuously adjustable
|
|
Output DC current
|
Rated: 20A, Maximum: 21A
|
|
Range of the output steady current
|
10% - 100% rated current
|
|
Voltage stability
|
£ ±0.5%
|
|
Current stability
|
£± 1%
|
|
Ripple coefficiency
|
£± 0.05%
|
| Item | Specifications |
|
Input voltage
|
AC three-phase three-wire 304V-456V, 50Hz±10%
|
|
Input current
|
Startup surge £ 30A
|
|
Power factors
|
³ 0.90
|
|
Efficiency
|
³ 90%
|
