Product Details:
|
| Output Power: | 401 - 500W, >500W | Output Type: | DUAL, Multiple |
|---|---|---|---|
| Output Voltage: | 48V | Output Frequency: | 50/60Hz |
| Model: | R48100N1/R48100G1 | Output Current: | 100A |
| Single Package Size : | 40X39X24 Cm | Single Gross Weight: | 8.000 Kg |
| High Light: | Huawei Rectifier Modules,R48100N1,R48100G1 |
||

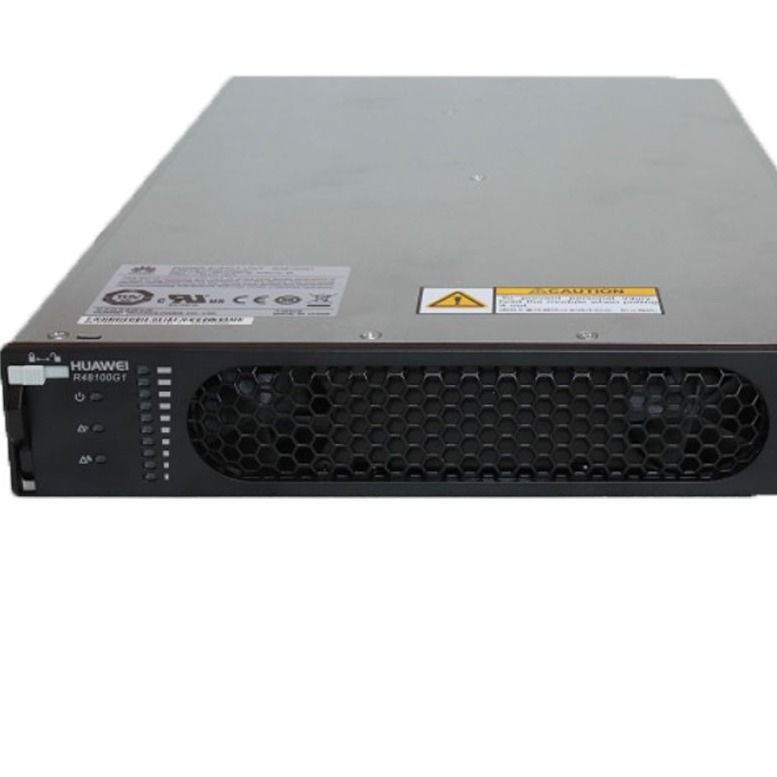

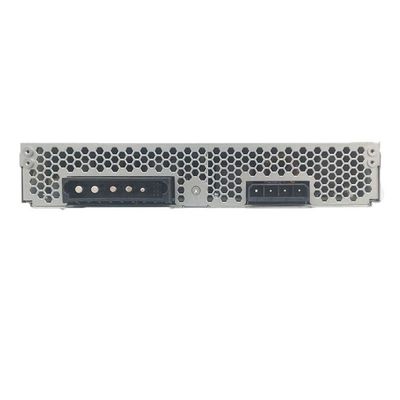

HuaWei R48100N1/R48100G1 48V 100A Rectifier Module communication power supply
Introductions
The R48100G1 is a digital control 3-phase rectifier with the maximum output power being 6000W. It converts 260~530VAC input voltage to 53.5VDC output voltage. The output voltage can be adjusted by the host. It performs comprehensive protection functions, supports soft start, and produces low noise. With the latest power monitoring technology, states of the rectifier and load are monitored in real time. Multiple rectifiers can be paralleled.
Features
* Input voltage range: 260~530VAC
* Operating temperature range: -40 ℃ to +75 ℃ (output derating above 45℃)
* Total harmonic distortion (THD): ≤ 5% Digital control mode
* Hot swap
* Supports intelligent electric meter
* Supports CAN communication
* Supports LED displa
* Supports voltage and current adjustment
* Passes the TUV,CE,UL certifications and gets the CB ertificate.
Specifications
| Product Type | R48100G1 | |
Basic Specifications |
Dimension | 238 mm(W) × 378 mm(D) × 43 mm(H) |
| Weight | ≤ 6.0 kg | |
| Cooling | Forced air cooling (Built-in fan) | |
Input Feature |
Input Voltage | 260 to 530 Vac |
| AC Input Mode | 380 Vac three-phase three-line | |
| Frequency | 45 to 66 Hz, rated: 50/60 Hz | |
| Maximum Input Current | ≤ 13 A | |
| Power Factor | ≥ 0.99 (Vin: 360 Vac, 380 Vac, 415 Vac, three-phase balance) | |
| THD | ≤ 5% (Vin: 308 to 480 Vac) | |
Output Feature |
Efficiency | > 96% Max |
| Output Voltage | 43.2 to 58 Vdc, rated voltage: 53.5 Vdc | |
| Output Power | 6000W (304 to 530 Vac ) | |
| Ripple and Noise | < 200 mV pk-pk, 20 M bandwidth, < 2 mV rms psophometric | |
| Hold-up Time | > 10 mS at 6000 W , output voltage > 42 V | |
| Output Regulated Voltage Precision | ≤ 0.6% Vo from no load to full load | |
| Current Share | ±5% output rated current from 10% to 100% load | |
Environmental Specifications |
Operating Temperature | -33 ºC to +75 ºC (non-derating below 45 ºC), ETS EN 300-019 |
| Storage Temperature | -40 ºC to +75 ºC; ETS EN 300-019 | |
| Relative Humidity | 5% to 95% (non-condensing), ETS EN 300-019 | |
| Altitude Range | ≤ 4000 m (If the altitude is within the range of 2000 m to 4000 m, the maximum operating temperature decreases by 1ºC as the altitude increases by 200 m) | |
Protection |
Input Overvoltage Protection | Protection point: 530 to 550 Vac |
| Input Under-voltage Protection | Protection point: < 260 Vac | |
| Output Over-voltage Protection | 58.5 to 60.5 Vdc (can be set by monitoring unit) | |
| Output Short Circuit Protection | A long term short circuit is allowed. After the fault is rectified, the rectifier will restore automatically | |
| Over-temperature Protection | Protection point: > 75 ºC | |
| Reliability | MTBF | ≥ 500,000 hours (Telcordia SR-332 issue2 Method 1 at 25 ºC) |
| Audible Noises | Specification | ≤ 45dB (25 ºC, full load); sound presure@1m distance, ISO3744 |
Safety/EMC/ Lightening Protection |
Safety Certification | Passed TUV, CE, UL certifications; got the CB certificate; complies with UL60950-1, IEC60950-1, EN60950-1, CAN/CSA C22.2 No. 60950 -1 |
| Isolation | Input to output: 4242 Vdc; input to earth: 2121 Vdc; output to earth: 707 Vdc | |
| EMC | EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, ETSI EN300 386, ETSI EN301489, ITU-T K.20 | |
| Lightening protection | Common model (input to earth) / differential model (input to input): 5KA (8/20uS, ITU-T K.44) | |
FAQ
Q: What are your advantages?
A: We are a professional manufacturer in the field of network equipment for more than ten years.
We provide customers with original products at preferential prices.
We have a professional sales team to provide 24-hour free consultation, and we also have a professional technical team and after-sales department.
Q: What is the warranty of your product?
A: One year (except second-hand products).
Q: What is the minimum order quantity for your products?
Answer: One Year.
Q: What are the payment terms?
A: Pre T/T or paypal or Western Union or Alibaba trade guarantee order.
Q: What is a package?
Answer: Original packaging. For the outside, we pack it in an empty box to prevent damage during transportation and ensure that you receive the goods in good condition.
