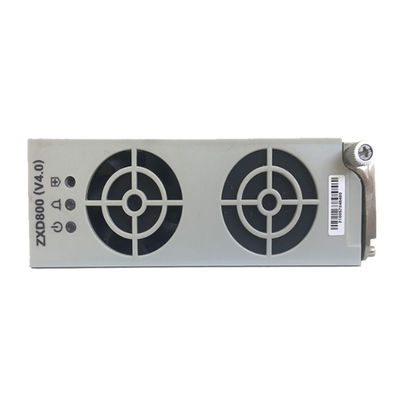

Multiple Communication Power Rectifier Modules ZTE ZXD800 V4.0

Multiple Communication Power Rectifier Modules ZTE ZXD800 V4.0
Multiple Communication Power Rectifier Modules ZTE ZXD800 V4.0 Multiple Communication Power Rectifier Modules ZTE ZXD800 V4.0

Large Image :  Multiple Communication Power Rectifier Modules ZTE ZXD800 V4.0

Product Details:
Place of Origin: China, Guangdong
Brand Name: ZTE
Certification: CE RoHS FCC
Model Number: ZXD800 V4.0
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable

Multiple Communication Power Rectifier Modules ZTE ZXD800 V4.0

Description
Product Name: ZXD800 V4.0 Output Type: Multiple
Output Voltage: 53.5V Output Current: 15A
Output Power: 802W Input Voltage: 200 - 240V
Dimensions (H *W *D): 85*305*440 Mm Warranty: 1 Year
High Light:

Communication Power Rectifier Modules

,

Multiple Rectifier Modules

,

ZTE ZXD800 V4.0

Multiple Communication Power Rectifier Modules ZTE ZXD800 V4.0



New original package ZTE ZXD800 V4.0 communication power rectifier module



Description of ZXD800 V4.0

ZXD800 15A switch rectifier is independently developed by ZTE communication power switch rectifier. It uses the international advanced switching regulator technology can be widely used in a variety of communications switching equipment, microwave communications and fiber optic transmission medium.


ZXD800 15A rectifier switch sets the input AC power distribution, AC / DC power conversion, DC power distribution, battery protection, monitoring systems, flow control all in one, both suitable for use alone or can be easily combined into a system of 100 A or less.


ZXD800 15A switching regulator is divided into two different versions according to the communication protocol: RS-232 and RS-485 version version, two versions of the fully compatible ZXD800 15A rectifier switch hardware.



A stable 410V direct current voltage is generated, which is beneficial to the optimized design of the subsequent DC-DC, so that the system has a good source effect. The latter stage DC-DC power conversion circuit adopts *** forward excitation plus lossless absorption circuit. The circuit is simple and reliable, and the switch tube has no direct connection. The lossless absorption reduces the voltage stress when the switch tube is turned off, and the output terminal has a smaller value.



Specification of ZXD800 V4.0

Model ZXD800 V4.0
AC input 200 - 240V ~ 7A 50/60HZ
AC Input
DC output 53.5V 802W
DC Output
Efficiency 96%
Dimensions (H*W*D) 85*305*440mm
Product Size 610*490*215mm
Weight < 12kg
Operation temperature -33 to 55°C
Storage temperature -40 to 70°C
Altitude < 3000m
Equalizing Charging Temp.Coefficient built-in fan, forced convection
Efficiency ≥0.90%
Power factor ≥0.99
Surge current ≤22A
Current limit 10%~110%
Rated current, arbitrary adjustable voltage stabilization accuracy ≤±0.6%
Soft start time 3~11s,
Output current sharing ability between modules without overshoot <±3%
Audible noise <55dBa (1m)
MTBF ≥1.5×105h

Multiple Communication Power Rectifier Modules ZTE ZXD800 V4.0 0



Delivery

1. 3-5 Working days after received the payment.

2. Shipment: Sea transportation & Air transportation ( DHL / UPS / TNT / Fedex / EMS )

Packing

1. Original Carton Package.

2. As customers' requirement.



After Service :



We offer guarantee of quality for 1Year for all the parts we ship out .

1. We will state the condition of the parts honestly when quote ;

2. We will test the quality of the goods before shipment ;

3. We will be responsilbe when the parts get in any problems .
