Product Details:
|
| Product Name: | NPR48 | Output Type: | Multiple |
|---|---|---|---|
| Input Voltage Range: | 90V～300V (single-phase Three-wire) | Input Frequency Range: | 45Hz～55Hz |
| Power Factor: | >0.99 | Output Voltage Range: | 43V～57.6V Continuously Adjustable |
| Power: | 2000W | Warranty: | 1 Year |
| High Light: | 45Hz Rectifier Modules,55Hz Rectifier Modules,55Hz modular rectifier |
||

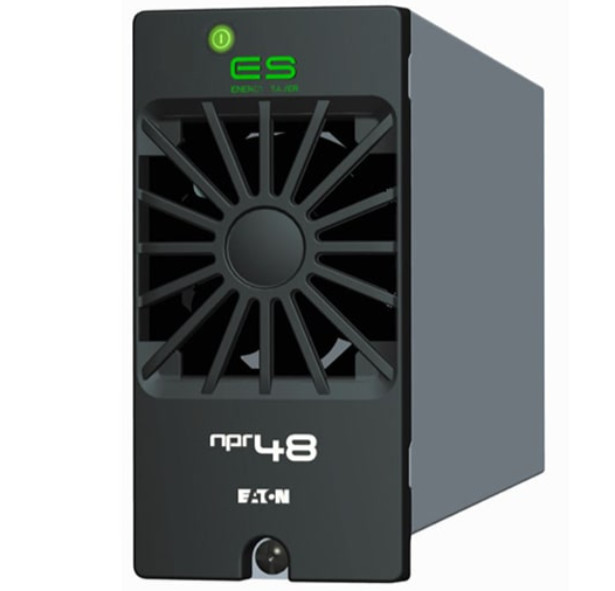

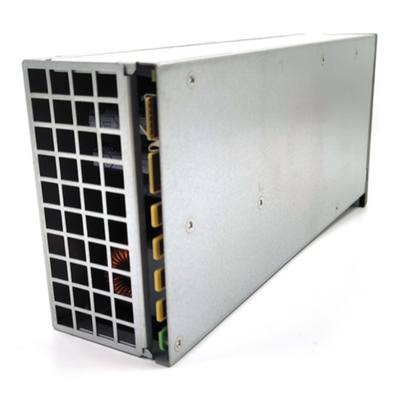

45Hz Rectifier Modules NPR48 220V 48V 50A DC Communication Power
Overviews
The Eaton NPR48 Series of rectifier modules is designed for a wide range of telecommunications applications including
switching, wireless, and transmission.
Specifications
| AC input | Input voltage range: 90V～300V (single-phase three-wire) Input frequency range: 45Hz～55Hz Power factor: >0.99 (50～***RRC) |
| DC output | Output voltage range: 43V～57.6V continuously adjustable Efficiency: >90% Stabilization accuracy: <±0.5% System Configuration |
| AC input | three-phase five-wire system, input voltage range 90～300V |
| Protection function | with incoming line overload and short circuit protection functions. Single * control the power distribution of each rectifier, provide rectifier overload and short circuit * dual protection. AC input has C-level lightning protection and alarm functions |
| DC output |
■ MCB: 16 channels: 63A～100A 24 channels: 1A～63A ■ Fuse: 10 way: NH00, 2A～160A 6 way: NH01, 2**～250A ■ Battery branch: 500A and below *2, optional for secondary power-off ■ System capacity: 48V/300A, 48V/600A, 24V/900A, 48V/900A ■ Configurable rectifier modules: APR48-3G-48V/1800W, APR48-ES-48V/2000W (*** module), NPR48-3G-48V/2900W, APR24-3G-24V/1440W ■ Configurable monitoring module: SM45 (SC100) ■ Wiring mode: up and down line in and out or choose according to user requirements |
FAQ
Q: How is the quality?
A: 100% original new packaging. We will test each product before launch to ensure that each product is of good quality.
Q: How many months is the warranty?
A: 12 months warranty
Q: How to deal with any low-quality goods?
A: During the warranty period, any products of poor quality can be mailed, and we will charge a mailing fee.
Package
1. Original carton or Mood box packaging.
2. According to customer requirements.
Deliver goods
1. 3-7 working days after receipt of payment.
2. Shipment: sea and air (DHL / UPS / TNT / Fedex / EMS)
