Product Details:
|
Model: | SFP-10G-BX40U-I/SFP-10G-BX40D-I | Form Factor: | SFP+ |
---|---|---|---|
Connector: | LC Simplex | Max Cable Distance: | 40km |
Receiver Sensitivity: | <-15dBm | Media: | SMF |
Commercial Temperature Range: | Temperature Range 0 To 70°C (32 To 158°F) | Warranty: | 1 Year |
High Light: | 10 Gigabit Fiber SFP Modules,40km Fiber SFP Modules,SFP-10G-BX40D-I |

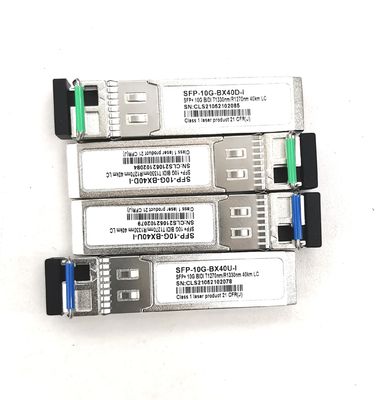

10 Gigabit Fiber SFP Modules HuaWei H3C SFP-10G-BX40U-I SFP-10G-BX40D-I
Compatible module HuaWei H3C SFP-10G-BX40U-I/SFP-10G-BX40D-I 10 Gigabit single-mode optical fiber module
Decription of SFP-10G-BX40U-I/SFP-10G-BX40D-I
For CWDM 10G SFP+ and DWDM SFP+ optical modules, the wavelength increases with the part number. For example, the part number of CWDM-SFP10G-1470 is CWDM SFP+, and its working wavelength is 1470nm. If you want a CWDM SFP+ optical module operating at a wavelength of 1550nm, then the product number of this CWDM optical module should be CWDM-SFP10G-1550. Since the wavelength of all DWDM SFP+ optical modules is about 1500nm, in the product number of Cisco DWDM SFP+ optical modules, the first two numbers 1 and 5 must be eliminated. For example, the working wavelength of the DWDM SFP+ standard optical module DWDM-SFP10G-61.41 is 1561.41nm.
Specifications of SFP-10G-BX40U-I and SFP-BX40D-I
SFP-10G-BX40U Compatible 10GBASE-BX40-U SFP+ Transceiver Module (SMF, 1270nm-TX/1330nm-RX, 40km, LC,DOM)
Cisco Compatible | SFP-10G-BX40U | Vendor Name | H3C,HW |
Form Factor | SFP+ | Max Data Rate | 10.3125Gbps |
Wavelength | 1270nm-TX/1330nm-RX | Max Cable Distance | 40km |
Connector | LC simplex | Optical Components | DFB BiDi |
Media | SMF | DOM Support | Yes |
TX Power | 1~5dBm | Receiver Sensitivity | <-15dBm |
Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | SFP+ MSA Compliant, CPRI, eCPRI |
Notice: When the long reach transceiver is used in short distance transmission, please matched with appropriate attenuator according to the table.
Distance | ≤ 5km | ≤ 10km | ≤ 15km |
---|---|---|---|
Attenuator | 7dB | 5dB | 3dB |
Cisco Compatible | SFP-10G-BX40D | Vendor Name | HW,H3C |
Form Factor | SFP+ | Max Data Rate | 10.3125Gbps |
Wavelength | 1330nm-TX/1270nm-RX | Max Cable Distance | 40km |
Connector | LC simplex | Optical Components | DFB BiDi |
Media | SMF | DOM Support | Yes |
TX Power | 1~5dBm | Receiver Sensitivity | <-15dBm |
Commercial Temperature Range | 0 to 70°C (32 to 158°F) | Protocols | SFP+ MSA Compliant, CPRI, eCPRI |
Notice: When the long reach transceiver is used in short distance transmission, please matched with appropriate attenuator according to the table.
Distance | ≤ 5km | ≤ 10km | ≤ 15km |
---|---|---|---|
Attenuator | 7dB | 5dB | 3dB |
