Product Details:
|
| Brand Name: | Mikrotik | Model Number: | RBOmniTikU-5HnD |
|---|---|---|---|
| CPU: | AR9344 | Antenna Gain DBi: | 7.5 |
| CPU Nominal Frequency: | 600 MHz | Max Data Rate: | 300 Mbit/s |
| License Level: | 4 | Size Of RAM: | 64M |
| High Light: | RBOmniTikU-5HnD,1000mW 5g wireless access point,5G Wireless AP |
||
Mikrotik RBOmniTikU-5HnD 1000mW 5G Wireless AP ROS Router Supports 3G
Descriptions of RBOmniTikU-5HnD

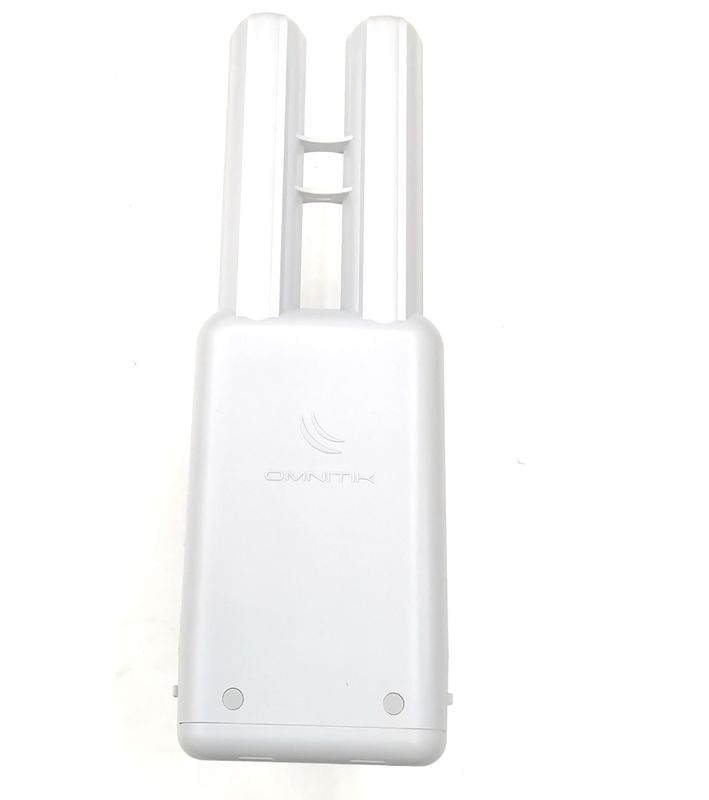

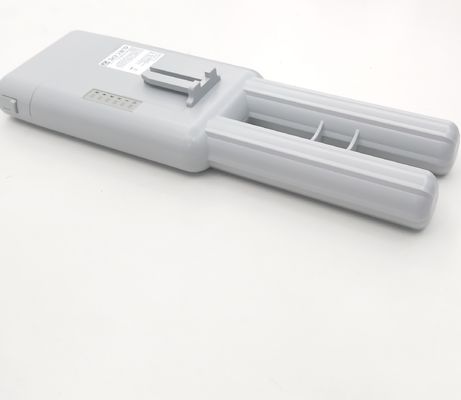

OmniTIK is a weatherproof outdoor AP with dual-polarized omni antennas - the perfect companion for our SXT, or for any other 802.11 standard device.

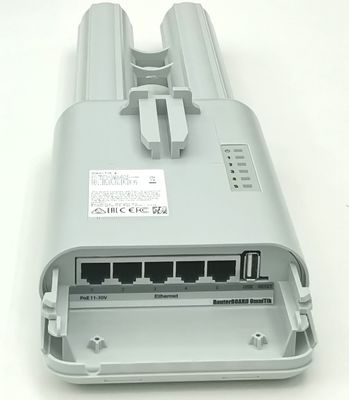

Weatherproof, durable and ready to use. It has five 10/100 Ethernet ports, PoE support and a built-in 802.11a/n wireless radio. It supports Nv2 TDMA technology with up to 200Mbit aggregate throughput.

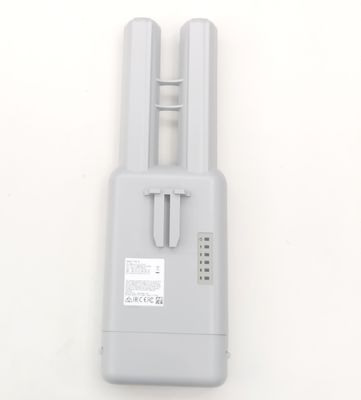

LED signal indicators on it’s back are fully customizable, show Ethernet activity or wireless signal - or any other information from RouterOS. The USB port gives the ability to connect a 3G modem or a storage drive. The OmniTIK runs RouterOS with all it’s features
Box contains: OmniTik U-5HnD, mounting loops, PoE injector, power adapter
* RBOmniTikU-5HnD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
* RBOmniTikU-5HnD (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Specification ofRBOmniTikU-5HnD
|
Details |
|
|---|---|
|
Product code |
RBOmniTikU-5HnD |
|
Architecture |
MIPSBE |
|
CPU |
AR9344 |
|
CPU core count |
1 |
|
CPU nominal frequency |
600 MHz |
|
Dimensions |
368x125x55mm |
|
License level |
4 |
|
Operating System |
RouterOS v5 and above |
|
Size of RAM |
64 MB |
|
Storage size |
16 MB |
|
Storage type |
FLASH |
|
Tested ambient temperature |
-40°C to 70°C |
|
Details |
|
|---|---|
|
PoE in |
Passive PoE |
|
PoE in input Voltage |
11-30 V |
|
Number of DC inputs |
1 (PoE-IN) |
|
Max power consumption |
11 W |
|
Details |
|
|---|---|
|
Antenna gain dBi for 5 GHz |
7.5 |
|
Wireless 5 GHz standards |
802.11a/n |
|
Wi-Fi generation |
4 |
|
Wireless 5 GHz Max data rate |
300 Mbit/s |
|
Wireless 5 GHz number of chains |
2 |
|
Wireless 5 GHz chip model |
AR9344 |
|
Details |
|
|---|---|
|
10/100 Ethernet ports |
5 |
|
Details |
|
|---|---|
|
Number of USB ports |
1 |
|
USB Power Reset |
Yes |
|
USB slot type |
USB type A |
|
Max USB current (A) |
1 |
