Product Details:
|
| Product Name: | NS-5AC | Dimensions: | 257 X 84 X 41 Mm |
|---|---|---|---|
| Weight: | 233 G (8.22 Oz) | Network Interface: | 10/100/1000 Ethernet Ports |
| Max. Power Consumption: | 9W | Gain: | 16 DBi |
| Power Supply: | 24VDC, 0.5A Gigabit PoE Adapter | Warranty: | 1 Year |
| High Light: | 5.8g Wireless Bridge,Ubnt Point To Point Wireless Bridge,Cpe Monitoring Wifi Coverage |
||

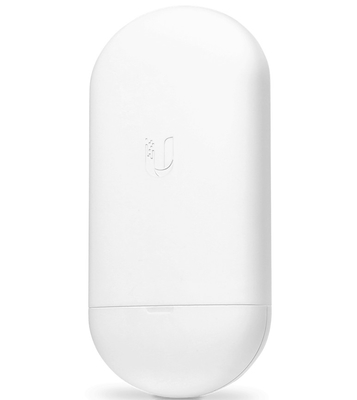

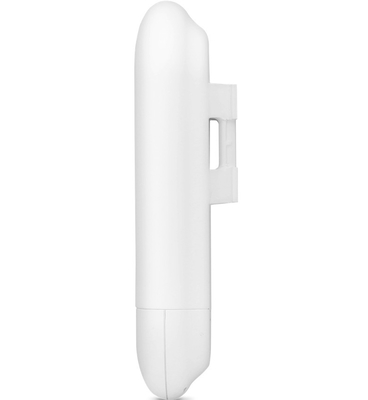

Ubnt Point To Point 5.8g Wireless Bridge Outdoor 3 Km Cpe Monitoring Wifi Coverage
Descriptions
NanoStation®M has panel antennas and bipolar performance, making it ideal for point-to-multipoint (PtMP) applications that require high-performance CPE equipment with a stylish appearance. Ubiquiti Networks has set the benchmark for the world's first low-cost, high-efficiency broadband customer premise equipment (CPE) with NanoStation® M. AC loco brings the same concept to future technology and dedicated Wi-Fi management with its stylish appearance and integrated airMAX (MIMO TDMA protocol).
The radio and antenna are combined to create a more efficient and compact CPE. NanoStation AC and NanoStation AC locomotives get the most benefits with the smallest footprint. The low cost, high performance and small size of NanoStation AC and NanoStation AC locomotives make them extremely versatile and very economical to deploy.
Features:
* Indoor/Outdoor
NanoStation® AC is a compact, high-performance CPE that uses airMAX® AC technology and a dedicated Wi-Fi radio for management.
* Double connection

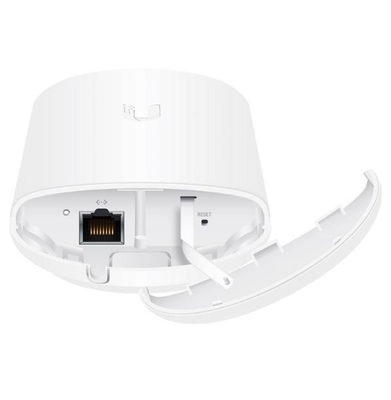

NanoStation AC provides a secondary Ethernet port with software-supported PoE. Use this port to conveniently power external devices, such as PoE security cameras, to achieve seamless IP video integration.
* Manage Wi-Fi radios
Each NanoStation AC model integrates a separate Wi-Fi radio for quick and easy setup using your mobile device.
| NS-5AC | |
|
Dimensions |
|
|---|---|
| With Mount | 257 x 84 x 41 mm (10.12 x 3.31 x 1.61") |
| Without Mount | 257 x 84 x 30 mm (10.12 x 3.31 x 1.18") |
|
Weight |
233 g (8.22 oz) |
|
Gain |
16 dBi |
|
Max. Power Consumption |
9W |
|
Networking Interface |
(2) 10/100/1000 Ethernet Ports |
|
LEDs |
Power, ETH1, ETH2, (4) Signal Strength |
|
Power Supply |
24VDC, 0.5A Gigabit PoE Adapter |
|
Power Method |
802.3af or Passive PoE (Pairs 4, 5+; 7, 8 Return) |
|
Supported Voltage Range |
24V ±10% |
|
Mounting |
Pole and Wall Mounting Kits Included |
|
ESD/EMP Protection |
±24 kV Contact/Air |
|
Operating Temperature |
-40 to 70° C (-40 to 158° F) |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Certifications |
CE, FCC, IC |
| Operating Frequency (MHz) | ||
|
US/CA |
U-NII-1 |
5150 - 5250 |
|---|---|---|
|
U-NII-2A |
5250 - 5350 | |
|
U-NII-2C |
5470 - 5725 | |
|
U-NII-3 |
5725 - 5850 | |
|
Worldwide |
5150 - 5875 | |
| Management Radio (MHz) | |
|
US/CA |
2412 - 2462 |
|---|---|
|
Worldwide |
2412 - 2472 |
