Product Details:
|
| Product Name: | RBcAP2nD(cAP2nD) | Brand Name: | Mikrotik |
|---|---|---|---|
| Single Package Size : | 35X15X5 Cm | Single Gross Weight: | 1.000 Kg |
| The Number Of CPU Cores: | 1 | CPU Nominal Frequency: | 650 MHz |
| License Level: | 4 | The Storage Size: | 16 MB |
| High Light: | RBcAP2nD CAP,RBcAP2nD Wifi Access Point,Mikrotik RBcAP2nD |
||
MikroTik RBcAP2nD(cAP2nD) Enterprise Ceiling AP Ondoor Wireless AP Coverage 100M 2.4G
Product descriptions

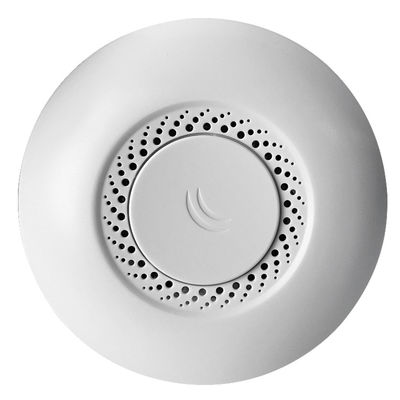

cAP-2nD (ceiling ap) is our 2.4GHz dual mimo antenna AP. The design is simple, integrated into the environment, very suitable for hotels, airports, shopping centers and other hotel industry.
cAP-2nD supports 802.11b/g/n and can be powered by PoE. It is the companion of MikroTik CAPsMAN (Controlled AP Manager), allowing you to control all AP devices from one central location.
Unlike traditional controller software that requires a separate PC/Mac to run, our CAPsMAN can run on any existing RourterBOARD device on your network. No separate controller machine is required.
All are included to get you started, wall/ceiling mounting, PoE circuit-sharers, power adapters, and even screws and expansion bolts.
Product specifications
|
detail |
|
|---|---|
|
Product code |
RBcAP2nD |
|
Architecture |
MIPSBE |
|
central processing unit |
QCA9533 |
|
The number of CPU cores |
1 |
|
CPU nominal frequency |
650 MHz |
|
Form factor |
185mm in diameter and 31mm in height |
|
License level |
4 |
|
operate |
RouterOS |
|
The size of the RAM |
64 MB |
|
The storage size |
16 MB |
|
The type of storage |
flash memory |
|
Test the ambient temperature |
-40C to -70C |
|
|
|
Power supply
|
detail |
|
|---|---|
|
High power consumption |
4W |
|
PoE input |
802.3af/at |
|
PoE input voltage |
11-57 V |
|
The number of DC inputs |
1(PoE-IN) |
Wireless
|
detail |
|
|---|---|
|
Number of wireless 2.4 GHz links |
2 |
|
Wireless 2.4 GHz standard |
802.11b/g/n |
|
2.4 GHz antenna gain dBi |
2 |
|
Wireless 2.4 GHz chip model |
QCA9533 |
Ethernet network
|
detail |
|
|---|---|
|
10/100 Ethernet port |
1 |
Wireless specifications
|
2.4 GHz |
Transfer (dBm) |
Receive sensitivity |
|---|---|---|
|
is 1Mbit / s |
22 |
-96 |
|
11MBit/s |
22 |
-89 |
|
6MBit/s |
20 |
-93 |
|
54MBit /s |
18 |
-74 |
|
MCS0 |
20 |
-93 |
|
MCS7 |
16 |
-71 |
Route test results
|
RBcAP2nD |
QCA9533 100M single-port test |
||||||
|
mode |
The configuration |
1518 bytes |
512 bytes |
64 bytes |
|||
|
Key performance parameters |
Mbps |
Key performance parameters |
Mbps |
Key performance parameters |
Mbps |
||
|
Bridge |
None (Fast Path) |
8.1 |
98.4 |
23.5 |
96.3 |
173.6 |
88.9 |
|
Bridge |
25 bridge filtering rules |
8.1 |
98.4 |
23.5 |
96.3 |
70.9 |
36.3 |
|
routing |
None (Fast Path) |
8.1 |
98.4 |
23.5 |
96.3 |
160.8 |
82.3 |
|
routing |
25 simple queues |
8.1 |
98.4 |
23.5 |
96.3 |
90.8 |
46.5 |
|
routing |
25 ip filtering rules |
8.1 |
98.4 |
23.5 |
96.3 |
43.2 |
|
