Product Details:
|
| Type: | Optical Fibers | Use: | Outdoor |
|---|---|---|---|
| CPU: | IPQ-4018 | RAM: | 64M |
| Antenna Gain DBi: | 16 | Max Data Rate: | 867 Mbit/s |
| Condition: | Original New | Nominal Frequency: | 716 MHz |
| Storage Size: | 256M | Wireless Standards: | 802.11a/n/ac |
| 10/100/1000 Ethernet Ports: | 1 | Selling Units: | Single Item |
| Single Package Size : | 57X5X32 Cm | Single Gross Weight: | 3.000 Kg |
| Package Type: | New In The Box. | ||
| High Light: | RBSXTsqG-5acD,Mikrotik SXTsq 5,Mikrotik Small Access Point |
||

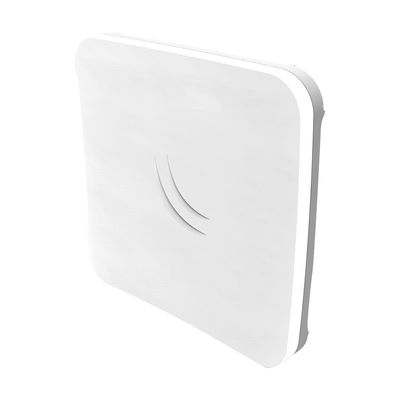

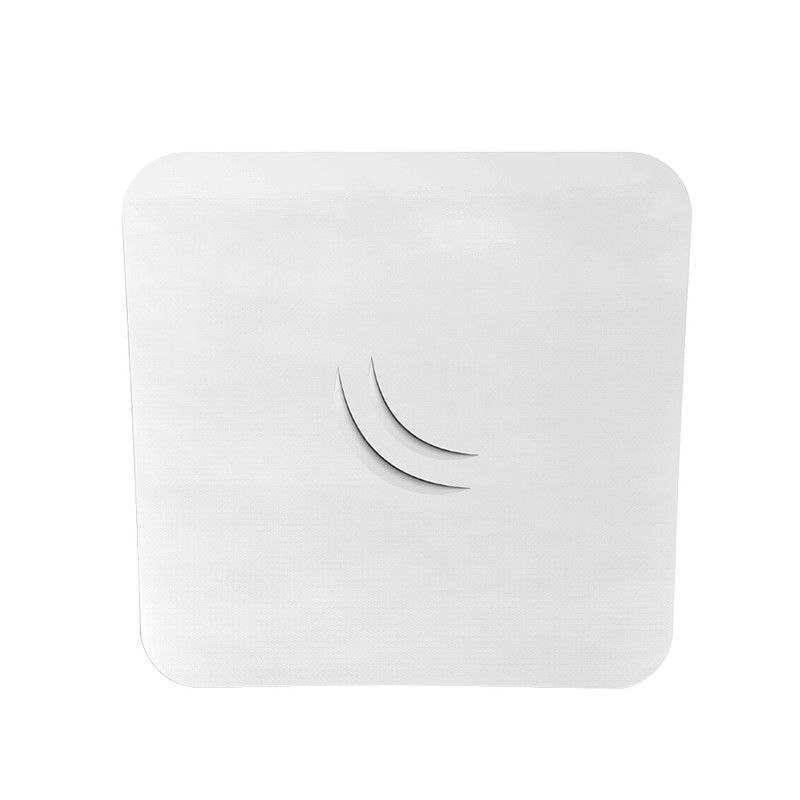

MikroTik Outdoor Wireless System
SXTsq 5 High Power /RBSXTsq5HPnD
The SXTsq 5 is a compact and lightweight outdoor wireless device with an integrated antenna, perfect for point-to-point links or as a CPE unit. It is compact, weatherproof and easy to mount. The SXTsq 5 retains a 16 dBi antenna like the SXT 5, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner. Higher TX power allows to reach longer distances than SXTsq Lite 5.
Specification
| Details | |
|---|---|
| Product code | RBSXTsq5HPnD |
| Architecture | MIPSBE |
| CPU | AR9344 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | 129x129x34mm |
| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C to 70°C |
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE in input Voltage | 10-28 V |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 7 W |
| Details | |
|---|---|
| Antenna gain dBi for 5 GHz | 16 |
| Wireless 5 GHz standards | 802.11a/n |
| Wi-Fi generation | 4 |
| Wireless 5 GHz Max data rate | 300 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz chip model | AR9344 |
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 25 | -96 |
| 54MBit/s | 20 | -80 |
| MCS0 | 25 | -96 |
| MCS7 | 19 | -75 |
