Product Details:
|
| Product Name: | LTU-LR | Brand Name: | UBNT |
|---|---|---|---|
| Power Supply: | 24V, 0.5A Gigabit PoE Adapter | Warranty: | 1 Year |
| Dimensions: | 512.5 X 385.75 X 258.3 Mm | Weight: | 1.360 Kg (2.998 Lb) |
| Max. Power Consumption: | 8.5W | Max. Conducted TX Power: | 22 DBm |
| High Light: | 5GHz PtMP Wireless Receiver,8.5W PtMP Wireless Receiver,PtMP Wireless Bridge |
||

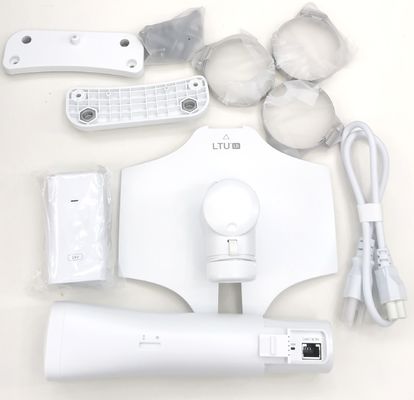

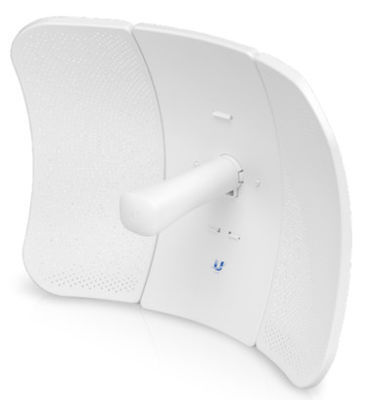

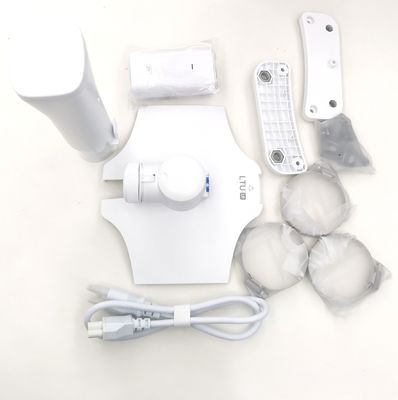

UBNT 5Ghz wireless bridge LTU-LR 5GHz PtMP receiver outdoor high broadband transmission gigabit
Installation Requirements of LYU-LR
|
|
Note: For guidelines about grounding and lightning protection, follow your local electrical regulatory codes.
|
|---|
Outdoor, shielded Category 6 (or above) cabling and shielded RJ45 connectors are required for all wired Ethernet connections.
|
LAN LED |
|---|
| The LED will light steady blue when an active Ethernet connection is made to the Ethernet port and flash when there is activity. |
|
Power LED |
| The LED will light blue when the device is connected to a power source. |
|
Reset Button |
| To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the device is powered on. |
|
PoE In [24V] Port |
| This 10/100/1000 Ethernet port is used to connect the power and should be connected to the LAN. Default IP address: 192.168.1.20 |
|
LAN LED |
|---|
| The LED will light steady blue when an active Ethernet connection is made to the Ethernet port and flash when there is activity. |
|
Power LED |
| The LED will light blue when the device is connected to a power source. |
|
Reset Button |
| To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the device is powered on. |
|
PoE In [24V] Port |
| This 10/100/1000 Ethernet port is used to connect the power and should be connected to the LAN. Default IP address: 192.168.1.20 |
Specifications of LYU-LR
| LTU-LR | |
|
Dimensions |
512.5 x 385.75 x 258.3 mm |
|---|---|
|
Weight |
1.360 kg (2.998 lb) |
|
RF Connectors |
(2) RP-SMA Weatherproof (CH0, CH1) (1) SMA Weatherproof (GPS) |
|
GPS Antenna |
External, Magnetic Base |
|
Power Supply |
24VDC, 0.5A Gigabit, 4-Pair Passive PoE (Included) |
|
Power Method |
Proprietary Passive PoE Pins 1, 2; 4, 5+ and Pins 7, 8; 3, 6- |
|
Supported Voltage Range |
+18 to +54VDC1 (Either/Both RJ45 Ports for Redundancy) |
|
Max. Power Consumption |
8.5W |
|
Networking Interface |
|
| Data Port | (1) 10/100/1000 Ethernet Port Bluetooth v4.0 |
| Management Port | (1) 10/100/1000 Ethernet Port (Reserved for Future Use) |
|
Mounting |
Integrated Pole Mount (Included) Rocket Mount Compatible GPS Pole Mount (Included) |
|
Operating Temperature |
-40 to 55° C (-40 to 131° F) |
|
Weatherproofing |
IP672 |
|
Certifications |
FCC Part 15.407 CE EN 302502 v1.2.1, EN 301 893 v1.7.1 |
| System | |
|
Maximum Throughput |
|
|---|---|
| 50 MHz Capacity | 675.84 Mbps1 |
|
Maximum Range |
100+ km |
|
Packets per Second |
2,000,000 |
|
Encryption |
WPA2-PSK (AES) |
|
Forward Error Correction |
LDPC |
|
Uplink/Downlink Ratio |
25/75, 33/67, 50/50 |
|
OS |
airOS LTU |
|
Wireless Modes |
AP |
| Radio | |
|
Max. Conducted TX Power |
23 dBm2 |
|---|---|
|
Frequency Accuracy |
< 2 ppm |
|
Channel Bandwidth |
10/20/30/40/50 MHz Selectable Programmable Uplink and Downlink Duty Cycles |
| Operating Frequency (MHz) | ||
|
Worldwide |
4800 - 62002 | |
|---|---|---|
|
US/CA |
U-NII-1 |
5150 - 5250 |
|
U-NII-2A |
5250 - 5350 | |
|
U-NII-2C |
5470 - 5725 | |
|
U-NII-3 |
5725 - 5850 | |
| Bluetooth LE Management Radio (MHz) | |
|
Worldwide |
2400 - 2483.5 |
|---|---|
