Product Details:
|
| Brand Name: | UBNT | Model Number: | RD-5G31-AC |
|---|---|---|---|
| Dimensions: | 748 X 748 X 349 Mm (29.45 X 29.45 X 13.74") | Frequency: | 5.1 - 5.8 GHz |
| Weight (Mount Included): | 7.6 Kg (16.76 Lb) | Gain: | 31 DBi |
| Wind Survivability: | 200 Km/h (125 Mph) | Warranty: | 1 Year |
| High Light: | 5G Long Distance Dish Parabolic Antenna,31dbi Dish Parabolic Antenna,RD-5G31-AC |
||

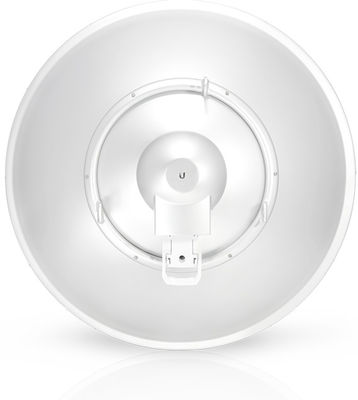

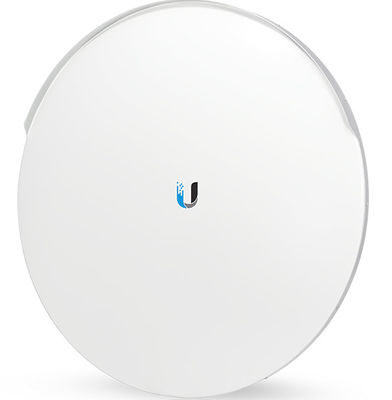

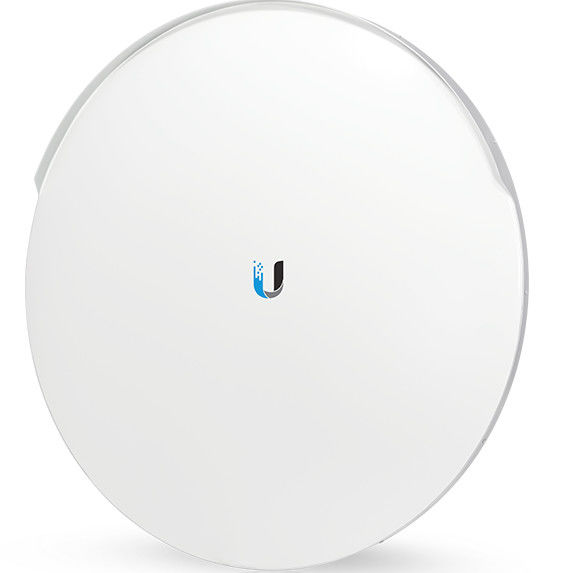

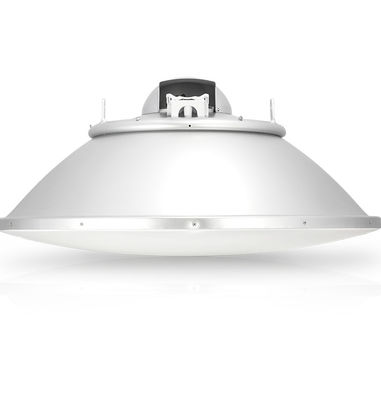

UBNT RocketDish RD-5G31-AC 5G 31dbi long-distance dish parabolic antenna
Installation Requirements
5 GHz Rocket® radio (sold separately)
16 mm or 5/8" wrench
24 mm or 15/16" wrench
Shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the PoE.
We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti.
Specifications
|
RocketDish RD-5G31-AC |
|
|
Dimensions |
748 x 748 x 349 mm (29.45 x 29.45 x 13.74") |
|---|---|
|
Weight |
7.6 kg (16.76 lb) (Mount Included) |
|
Frequency |
5.1 - 5.8 GHz |
|
Gain |
31 dBi |
|
Max. VSWR |
1.4:1 |
|
Wind Survivability |
200 km/h (125 mph) |
|
Wind Loading |
1,028 N @ 200 km/h (231 lbf @ 125 mph) |
|
Polarization |
Dual Linear |
|
Cross-Pol Isolation |
35 dB Min. |
|
ETSI Specification |
EN 302 326 DN2 |
|
Mounting |
Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
