Product Details:
|
| Brand Name: | UBNT | Model Number: | AP-5AC-90-HD |
|---|---|---|---|
| Dimensions: | 322.6 X 201.5 X 1300 Mm | Frequency: | 5.15 - 5.85 GHz |
| HPOL Beamwidth: | 3 X 30° (6 DB) | Weight: | 13.1 Kg |
| Gain: | 22 DBi | Wind Survivability: | 200 Km/h (125 Mph) |
| Warranty: | 1 Year | ||
| High Light: | AirPrism Outdoor Wireless Antenna,22dBi Gain Outdoor Wireless Antenna,UBNT AP-5AC-90-HD |
||
UBNT AP-5AC-90-HD airPrism HD Sector Outdoor Wireless Antenna
Channel Offset
The following table describes how much offset is needed with the channels used by the Rocket5ac Prism radios:
|
Channel Width |
Separation |
|
10 MHz |
20 MHz |
|
20 MHz |
30 MHz |
|
30 MHz |
50 MHz |
|
40 MHz |
60 MHz |

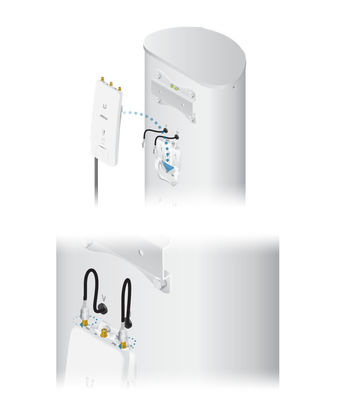

Installation Requirements

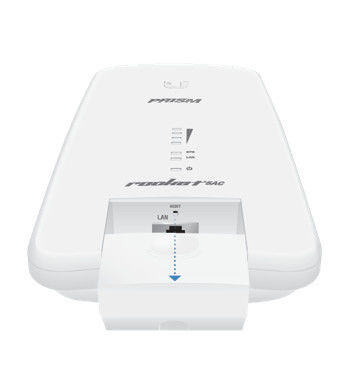

(3) Rocket5ac Prism radios, model R5AC-PRISM (sold separately)
13 mm and 17 mm wrenches
Shielded Category 5 (or above) cabling should be used for all wired Ethernet connections and should be grounded through the AC ground of the PoE.
We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti.
Specifications
|
AP-5AC-90-HD |
|
|
Dimensions (Mount Included) |
322.6 x 201.5 x 1300 mm (12.7 x 7.93 x 51.18") |
|---|---|
|
Weight (Mount Included) |
13.1 kg (28.9 lb) |
|
Frequency Range |
5.15 - 5.85 GHz |
|
Gain |
22 dBi |
|
HPOL Beamwidth |
3 x 30° (6 dB) |
|
VPOL Beamwidth |
3 x 30° (6 dB) |
|
Elevation Beamwidth |
8° |
|
Electrical Downtilt |
2° |
|
Polarization |
Dual-Linear |
|
Max. VSWR |
1.75:1 |
|
Wind Survivability |
200 km/h (125 mph) |
|
Wind Loading |
534 N @ 200 km/h (120 lbf @ 125 mph) |
|
Interfaces |
(6) RP-SMA Connectors (Weatherproof) |
|
Compatible Radio |
Rocket5ac Prism |
|
Mounting |
Pole Mount (Kit Included) |
|
ETSI Specification |
EN 302 326 DN2 |
|
Certifications |
CE, FCC, IC |
