Product Details:
|
| Brand Name: | UBNT | Model Number: | Horn-5-30/45/60/90 |
|---|---|---|---|
| Dimensions: | 221.4 X 221.4 X 184.2 Mm | Frequency: | 5.15 - 5.85 GHz |
| HPOL Beamwidth: | 3 X 30° (6 DB) | Weight: | 1.1 Kg |
| Gain: | 19 DBi | Wind Survivability: | 200 Km/h |
| Warranty: | 1 Year | ||
| High Light: | Dual Linear Polarization horn antenna,AirFiber LTU horn antenna,5 GHz Isolation horn antenna |
||

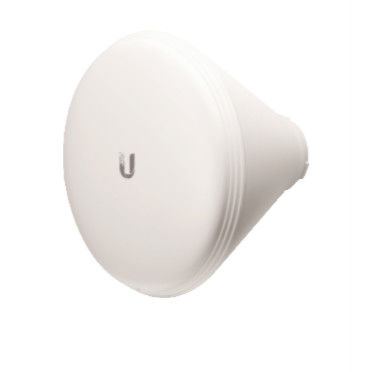

UBNT Horn-5-30/45/60/90 5 GHz Beamwidth Isolation Antenna Horns for airFiber LTU and airMAX

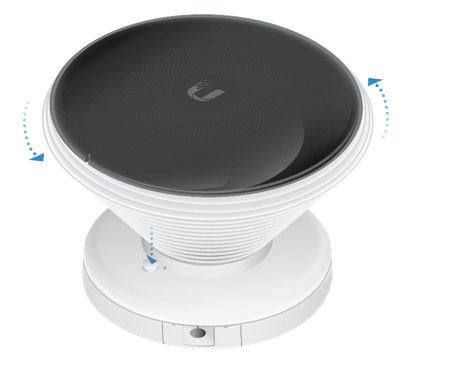

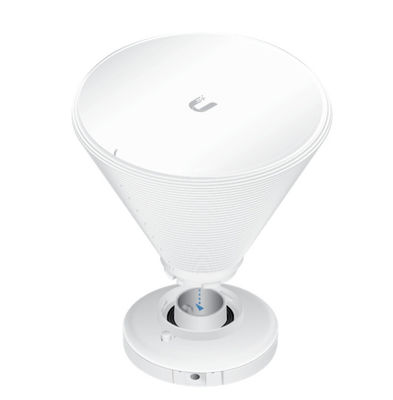

Hardware Installation
The horn antenna is compatible with the following models:
IsoStation™ IS-M5
IsoStation IS-5AC
PrismStation™ PS-5AC
airFiber® AF-LTU
These instructions show the IsoStation; however, they also apply to the PrismStation and airFiber AF-LTU.
Specifications
|
Horn-5-30 |
|
|
Dimensions |
221.4 x 221.4 x 184.2 mm (8.72 x 8.72 x 7.25") |
|---|---|
|
Weight |
1.1 kg (2.43 lb) |
|
Frequency Range |
5.15 - 5.85 GHz |
|
Compatible Radios |
IsoStation/PrismStation/airFiber AF-LTU |
|
Gain |
19 dBi |
|
HPOL Beamwidth |
30° |
|
VPOL Beamwidth |
30° |
|
Elevation Beamwidth |
30° |
|
Polarization |
Dual-Linear |
|
Cross-Pol Isolation |
17 dB |
|
Max. VSWR |
2:1 |
|
Wind Loading |
56 N @ 200 km/h (12.59 lbf @ 125 mph) |
|
Wind Survivability |
200 km/h (125 mph) |
