Product Details:
|
| Model: | UF-OLT-4 | Weight: | 1.93 Kg (4.25 Lb) |
|---|---|---|---|
| Power Method: | 110 - 240VAC Modular Port | Supported Voltage Range: | 100 - 240VAC; 16-25VDC |
| Dimensions: | 299.80 X 258.95 X 42.55 Mm | Max. Power Consumption: | 35W (Excluding SFP Transceivers) |
| Power Supply: | AC/DC Internal 56W DC | System Memory: | 512 MB DDR3, 512 MB NAND |
| Operating Temperature: | -10 To 45° C (14 To 113° F) | Warranty: | 1 Year |
| High Light: | UF-OLT-4 olt optical line terminal,4 Port GPON Optical Line Terminal,SFP+ olt optical line terminal |
||

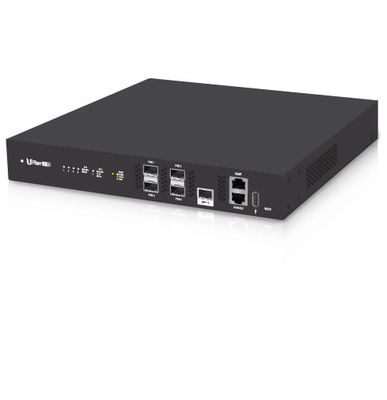

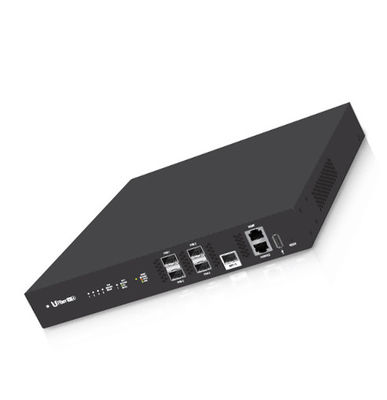

UBNT UF-OLT-4 4-port GPON RJ45 Optical Line Terminal with SFP+
Optical Line Terminal
U Fiber OLT supports up to 128 ONU CPEs per GPON port with physical links of up to 20 km in distance. It also features SFP+ connectivity for uplinking. The UFiber OLT can be mounted in a 1U rack, mounted on a wall, or placed on a desktop.
Management options include the Gigabit Ethernet port (out of band), RJ45 serial console port (CLI), and uplink (in band) configured via the UFiber UI or UNMS.
4 Port GPON Optical Line Terminal
GPON SFP and (1) SFP+ Ports
512 ONUs Total Concurrent Clients (128 Clients per Port)
35W Max. Power Consumption
100 240VAC, 50/60 Hz, Universal Power Input and Secondary Power Option: 24VDCUF4
|
UF-OLT-4 |
|
|
Dimensions |
299.80 x 258.95 x 42.55 mm |
|---|---|
|
Weight |
|
|
Without Mount Brackets |
1.93 kg (4.25 lb) |
|
With Mount Brackets |
2.13 kg (4.70 lb) |
|
Max. Power Consumption |
35W (Excluding SFP Transceivers) |
|
Power Method |
110 240VAC Modular Port |
|
Power Supply |
AC/DC Internal 56W DC |
|
Supported Voltage Range |
100 240VAC; 16 25VDC |
|
Button |
Reset |
|
Processor |
MIPS 1004Kc 880 MHz Dual Core |
|
System Memory |
512 MB DDR3, 512 MB NAND |
|
LEDs |
|
|
System |
Status |
|
PON Data Ports |
Link/Activity |
|
SFP+ Data Ports |
Link/Activity |
|
RJ45 (MGMT) Port |
Link/Activity |
|
Interfaces |
|
|
Data Ports |
(4) GPON OLT |
|
Management Port |
(1) RJ45 Ethernet Port |
|
Serial Console Port |
(1) RJ45 Serial Port |
|
Rackmount |
Yes |
|
Operating Temperature |
10 to 45° C (14 to 113° F) |
|
Operating Humidity |
10 90% Noncondensing |
|
Certifications |
CE, FCC, IC |
|
GPON SFP OLT Transceiver |
Single Fiber, SM SC/UPC, 20 km, 1490 nm TX/1310 nm RX, ITU T G984.2 Class B+ |
